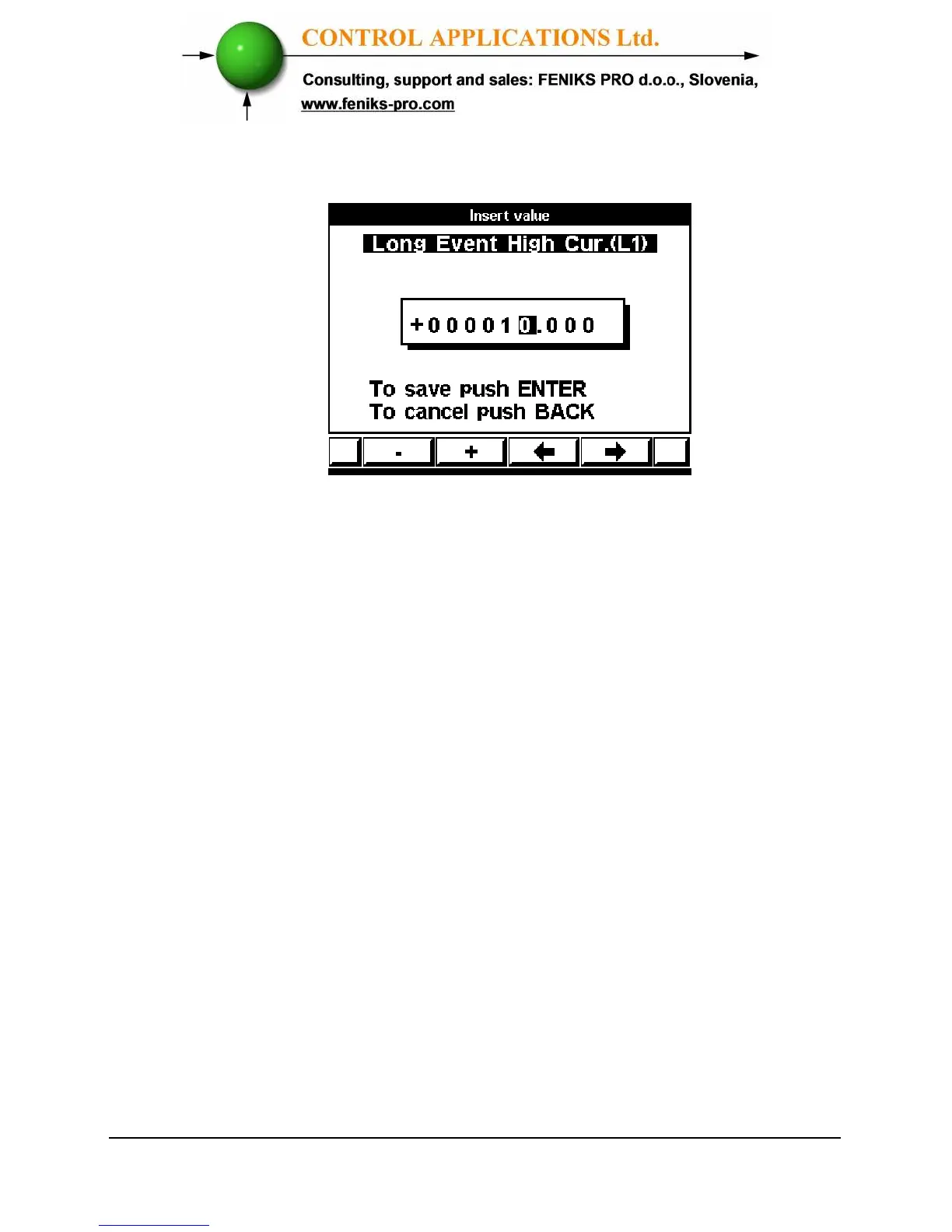

Figure 5.26. Long Event High Cur. (L1).
4 Set the high current value that will start the special
record by using button “F3” or “F4” to move the
cursor left or right and Button “F1” or “F2” to
decrease or increase the value + or -.
Setting hysteresis value in line 1 to return to normal and
reset for new event.
5 Repeat on steps 1 to 4 from chapter 5.11.7.
6 Scroll to Long Event Cur. Hys.
7 Click "Enter", the Long Event Cur. Hys. screen
appears.
