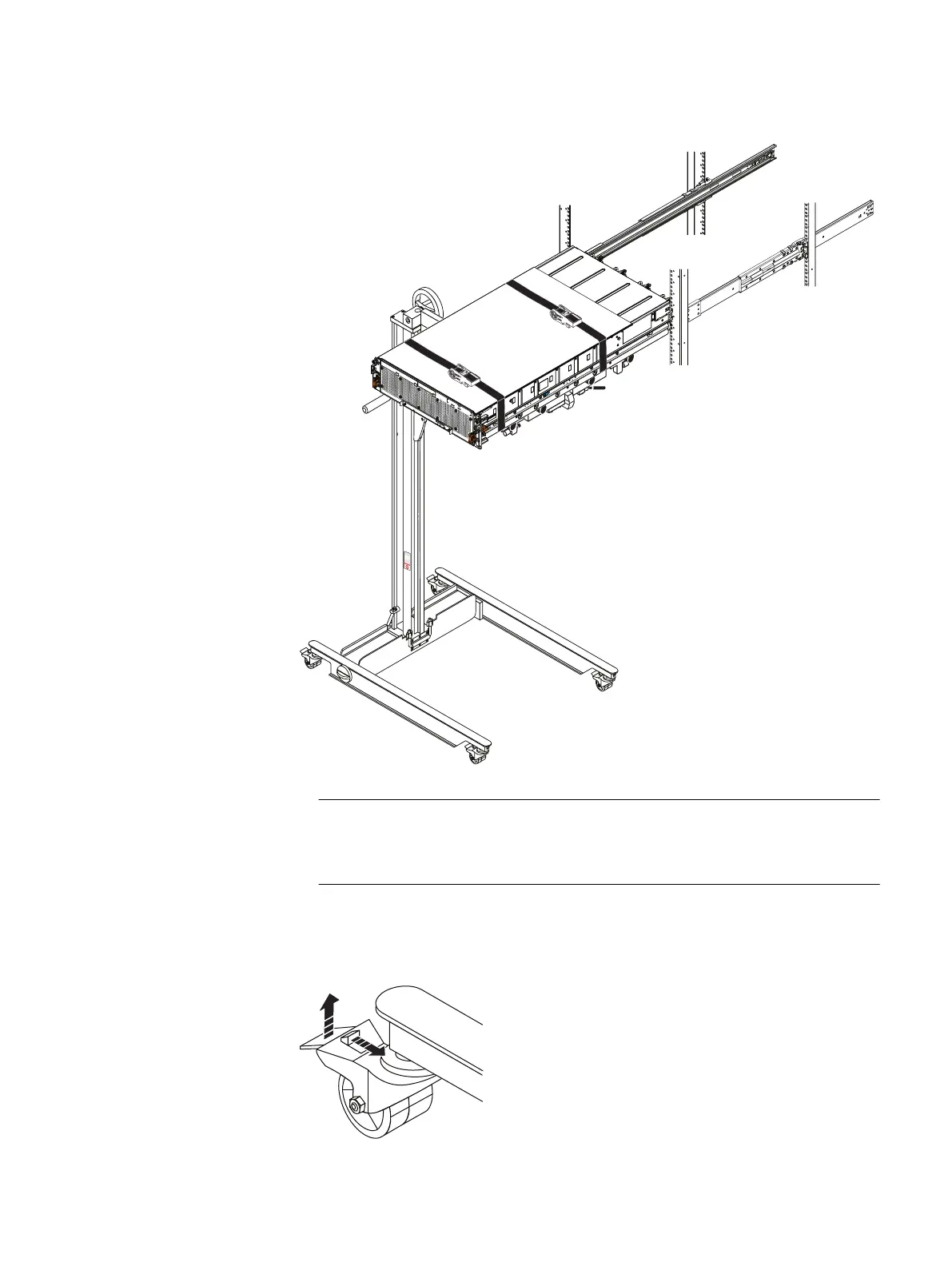

Figure 91 Sliding the shelf chassis into the rails
You may need to release sagging tension on the shelf by pulling the lift arms and
tray up slightly.
4. Unlock the casters by lifting up on the locking tabs and carefully slide the shelf
into the cabinet as far as the lift will allow.
Figure 92
Unlocking the casters
Removing and Replacing FRUs
118 EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
