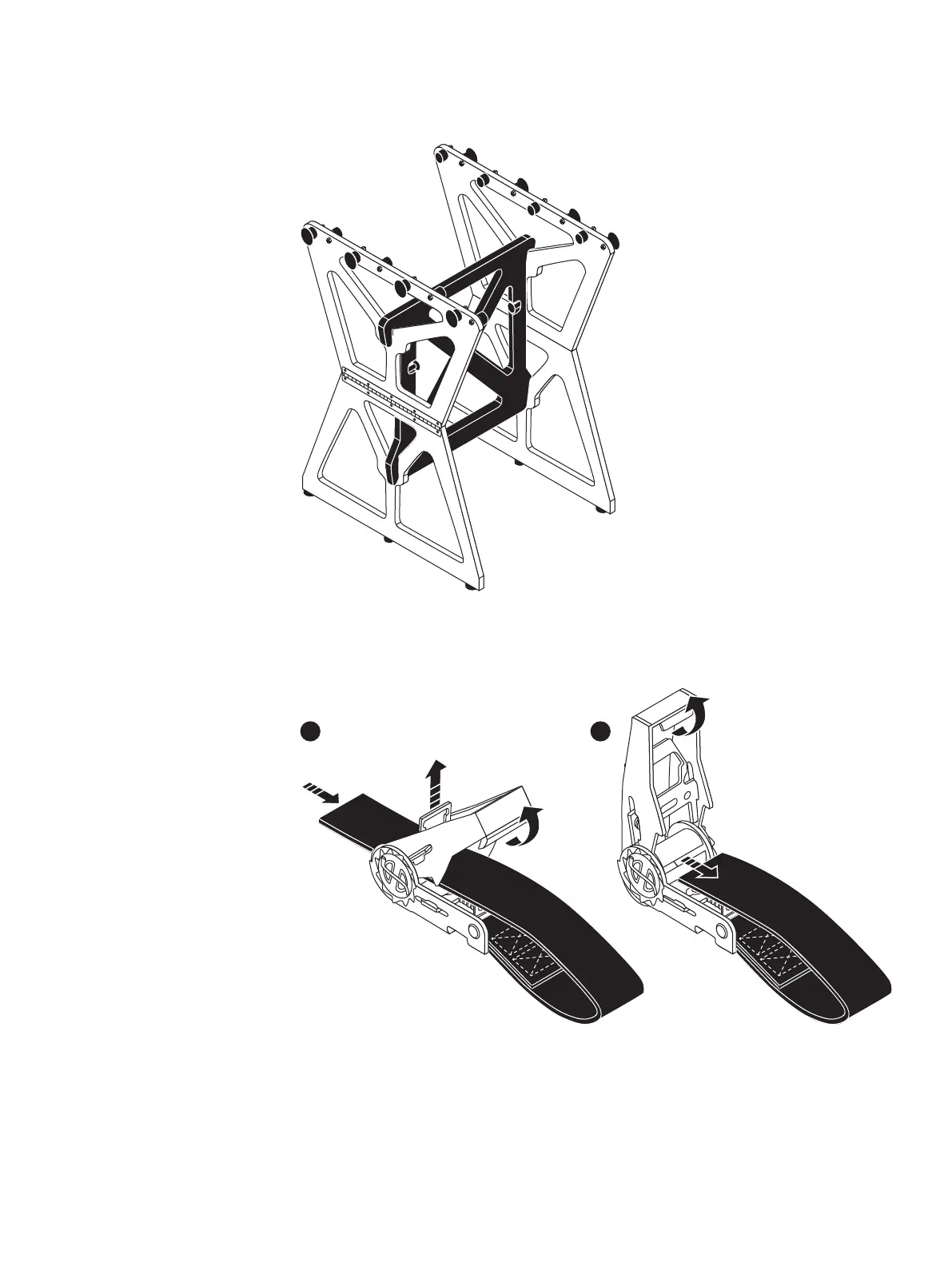

Figure 33 Support table
8. Remove the securing strap by pulling up on the retaining key and pull the
ratchet handle upwards as needed.
Figure 34
Removing the straps
9. To move the shelf to the deck or to a shipping pallet, the lift arm must be in the
lower mast position.
Using the Lift on a shelf 49" or less above the floor
You may need to adjust the lift arm position depending on the height of the shelf rails
within the rack or cabinet.
Shelf Installation and Removal
48 EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
