EMC Data Domain DS60 User Manual

b. With the release latch on the outer (rear) part of the rear channel, place the
catch mechanism over the channel.
c. Push the rail back to secure the rail adaptors in the cabinet channel. An
audible click indicates that the rail is secure in the channel.
d. Make sure the rear post/catch mechanism is secure and attached.

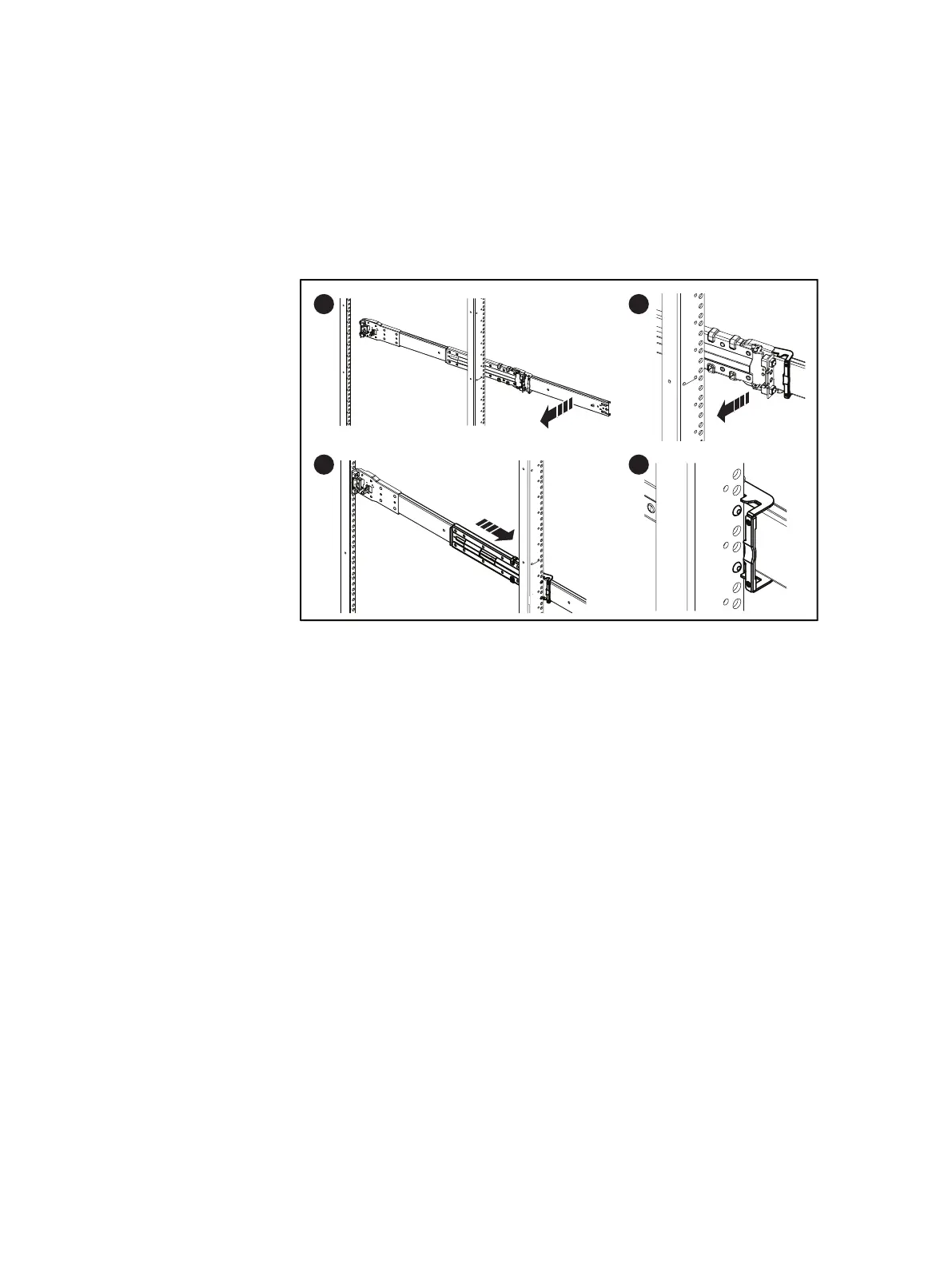

Figure 135 Installing the right rail to the rear channel
2
43
CL4868
1
5. Install the right rail to the front channel.
a. Align the front of the right rail so that it is level and the front rail pins are
aligned with the middle holes of the bottom two U spaces of the 4U space.
b. Pull the rail forward, with the adaptors aligned with the middle holes of the
bottom two U spaces of the 4U space.
An audible click indicates that the connection is secure.
Removing and Replacing FRUs
154 EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
