EMC Data Domain DS60

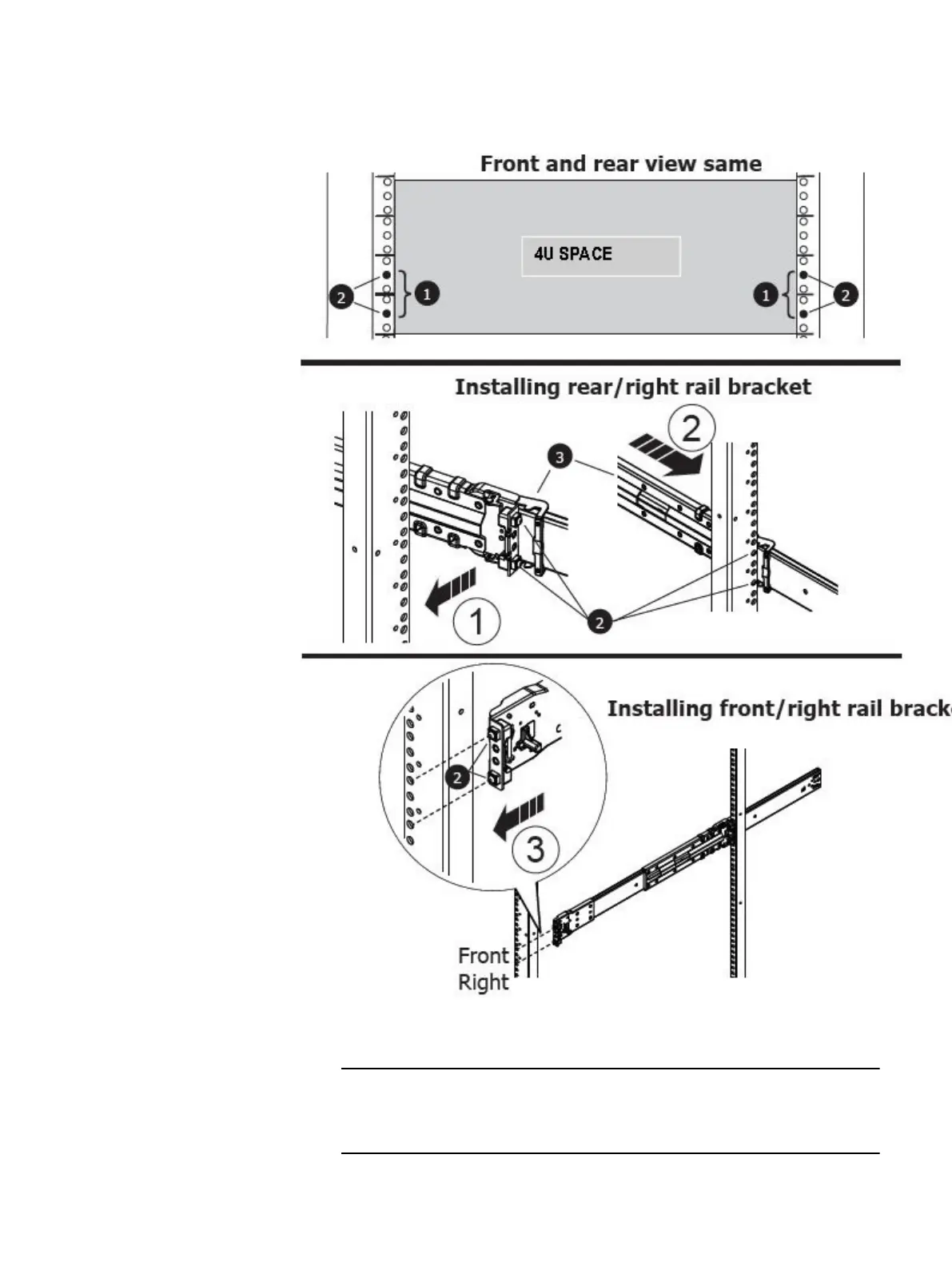

Figure 1 Rail installation
a. Align the right rail with the lower U of the allotted 4U space.
Note
Each of the rail alignment pins must be located in the middle holes of the
bottom two U spaces of the 4U space.
Shelf Installation and Removal
Installing rails 23
