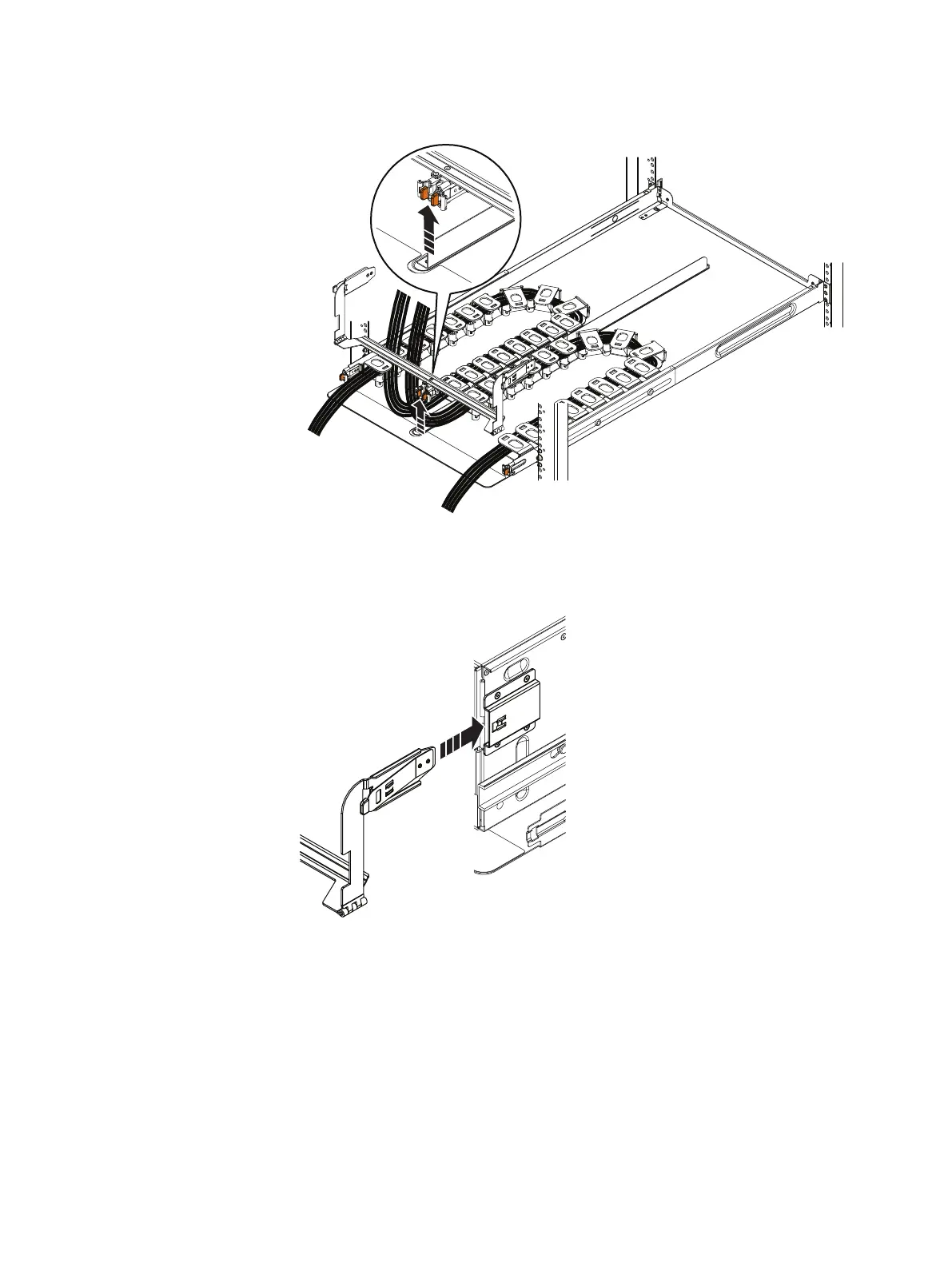

Figure 150 Remove the chassis bracket
5. Remove the chassis bracket.
Figure 151
Unclip the cable chains from the tray
6. Press the tabs and unclip the cable chains from the tray.
7. Unclip the cable chain baskets and remove the cables from the cable chains.
Remove the cable chains.
8. Re-insert the shelf into the rack.
Removing and Replacing FRUs
1U cable tray removal 169
