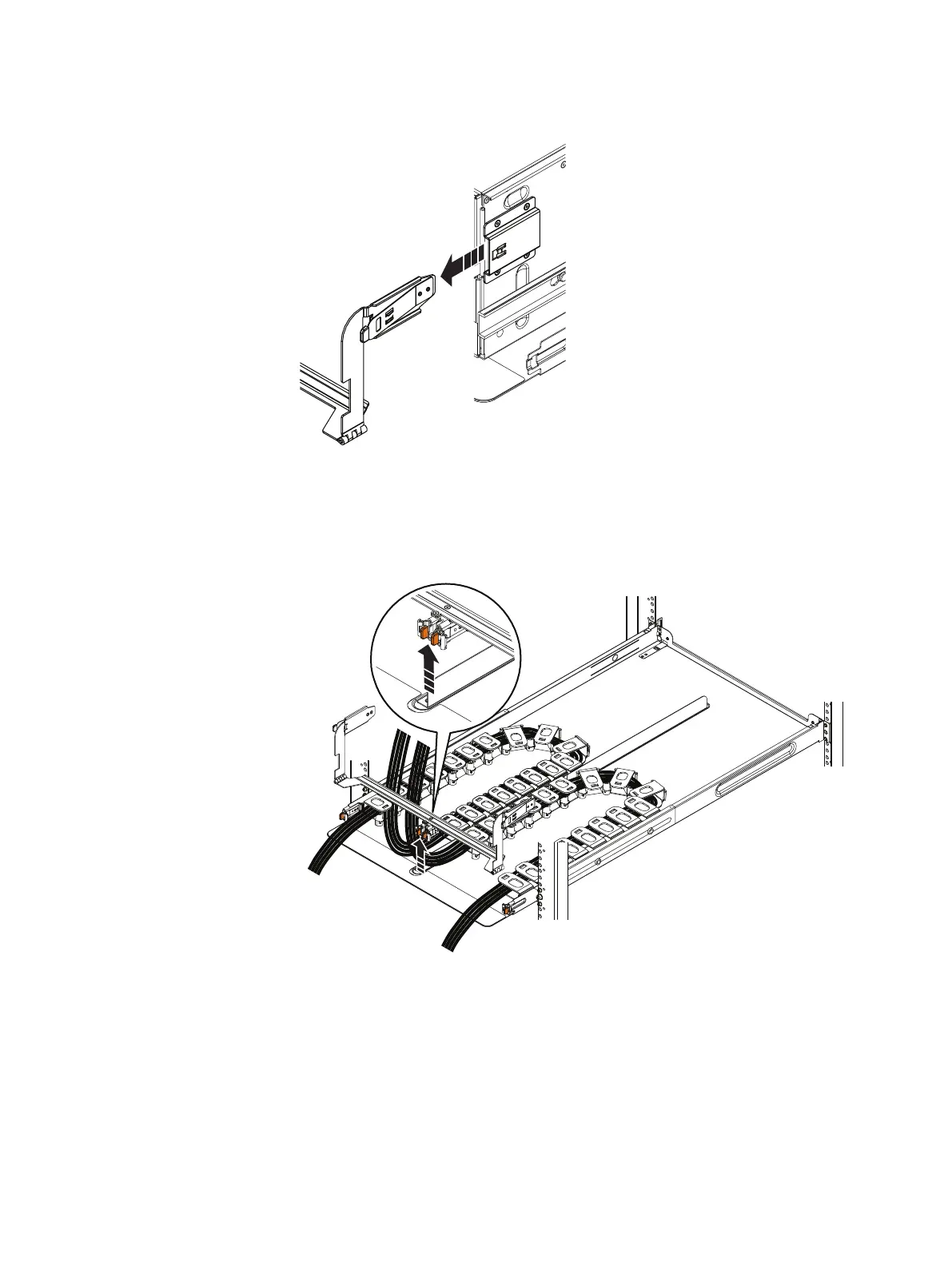

Figure 54 Remove chassis bracket from chassis

CL5547

3. Press the tabs on the chassis bracket and remove it from the brackets on the

sides of the chassis.

4. Press the tabs and unclip the cable chains from the chassis bracket.

Figure 55

Remove the chassis bracket

CL5548

5. Remove the chassis bracket.

Shelf Installation and Removal

60 EMC Data Domain DS60 Expansion Shelf Installation and FRU Replacement Hardware Guide
