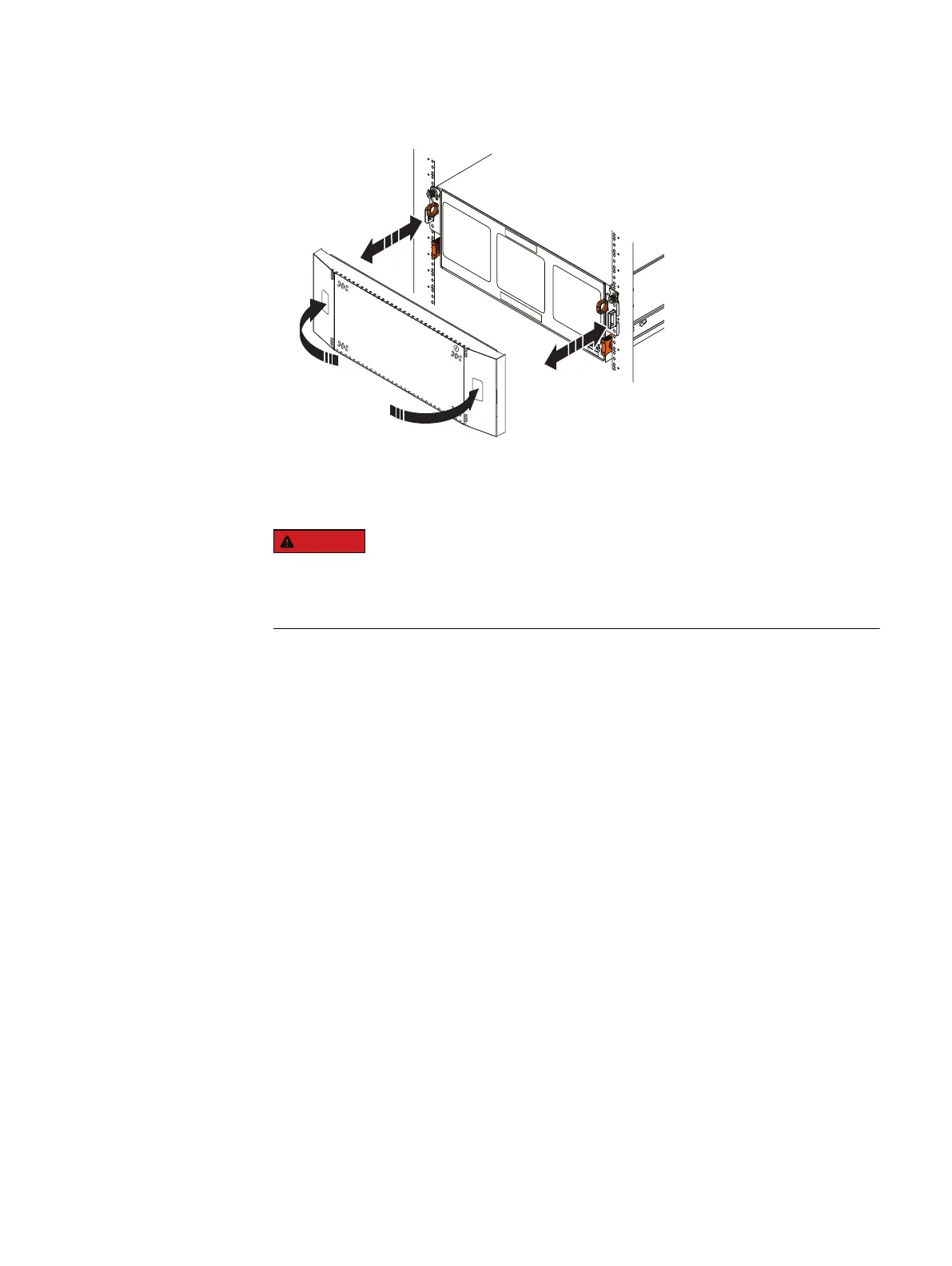

Figure 69 Removing the front bezel

CL4667

Pulling the shelf chassis out

DANGER

Do not extend more than one shelf at a time. Extending more than one shelf at a

time can cause the rack to tip over, which will damage the equipment and may

injure personnel.

To access the internal components, you must release and pull the shelf out of the

cabinet. The shelf slides out of the cabinet far enough for you to access its internal

components and then locks on the rails in the service position so that you cannot pull

it out any farther. The chassis is freed from the cabinet by removing captive shoulder

screws which attach the chassis to the cabinet.

Procedure

1. Unscrew the attaching screws from the NEMA channel.

2. Unscrew the shoulder-screws until they are free from the cabinet. Using the

orange shelf latch handles, pull the slowly pull shelf completely out the cabinet.

Removing and Replacing FRUs
