18 Affinity User Guide
www.controltechniques.com Issue Number: 5
Automation
(Applications)
Dark Green SM-Applications
Applications Processor (with CTNet)
2
nd
processor for running pre-defined and /or customer created
application software with CTNet support
White SM-Applications Lite
Applications Processor
2
nd
processor for running pre-defined and /or customer created
application software
Moss Green SM-Applications Plus
Applications Processor (with CTNet)
2
nd
processor for running pre-defined and /or customer created
application software with CTNet support. Enhanced
performance over SM-Applications
White SM-Applications Lite V2
Applications Processor
2
nd
processor for running pre-defined and /or customer created
application software. Enhanced performance over SM-
Applications Lite
Fieldbus
Brown Red SM-EtherCAT
EtherCAT option
EtherCAT adapter for communications with the drive
Purple SM-PROFIBUS-DP-V1
Profibus option
PROFIBUS DP adapter for communications with the drive
Medium Grey SM-DeviceNet
DeviceNet option
Devicenet adapter for communications with the drive
Beige SM-Ethernet
Ethernet option
10 base-T / 100 base-T; Supports web pages, SMTP mail and
multiple protocols: DHCP IP addressing; Standard RJ45
connection
Pale Green SM-LON
LonWorks option
LonWorks adapter for communications with the drive
Dark Grey SM-INTERBUS
Interbus option
Interbus adapter for communications with the drive
Pink SM-CAN
CAN option
CAN adapter for communications with the drive
Light Grey SM-CANopen
CANopen option
CANopen adapter for communications with the drive
Red SM-SERCOS
SERCOS option
Class B compliant. Torque velocity and position control modes
supported with data rates (bit/s): 2MB, 4MB, 8MB and 16MB.
Minimum 250μs network cycle time. Two digital high speed
probe inputs 1μs for position capture

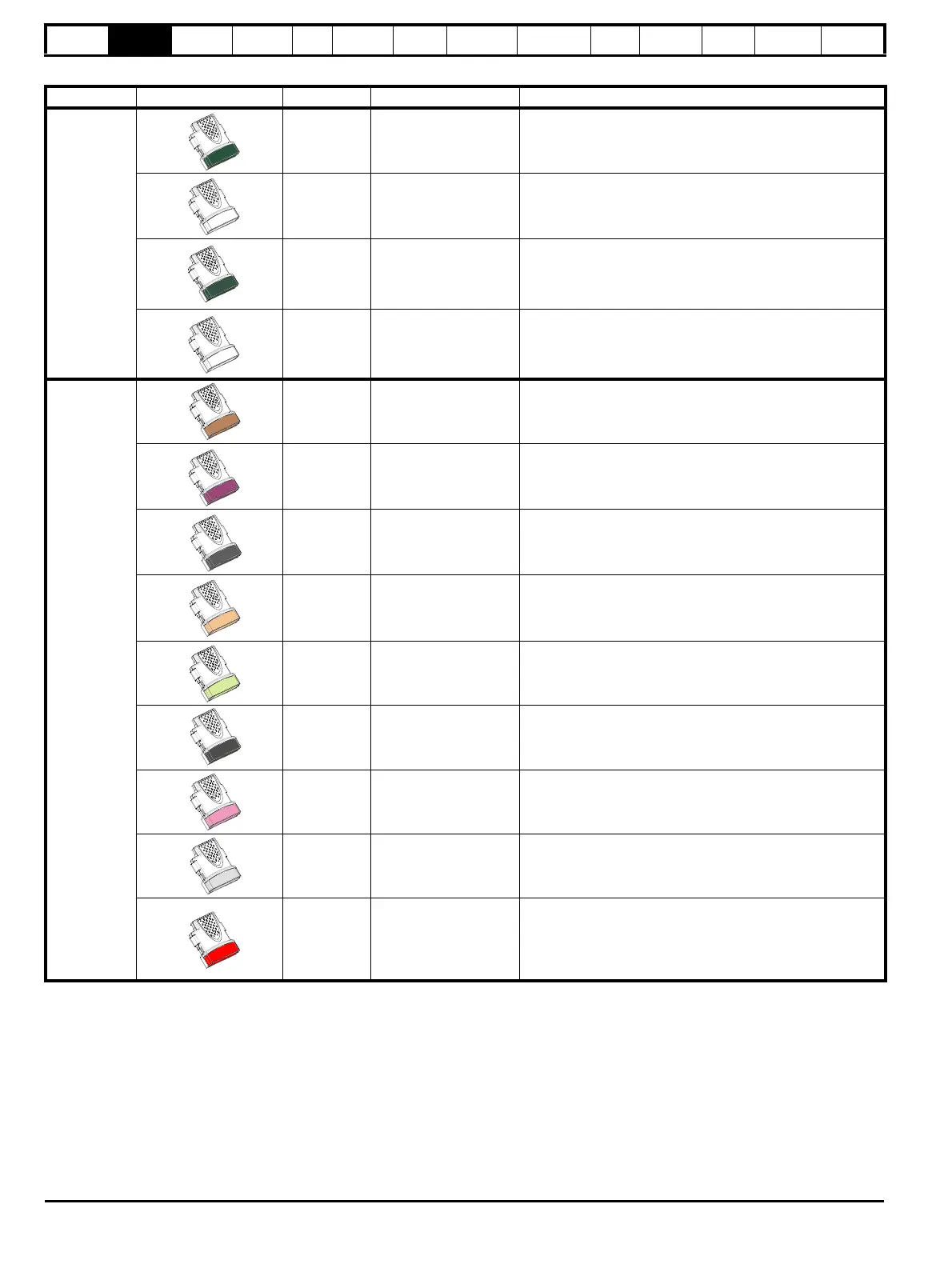

Table 2-6 Solutions Module identification
Type Solutions Module Color Name Further Details
