Affinity User Guide 43
Issue Number: 5 www.controltechniques.com

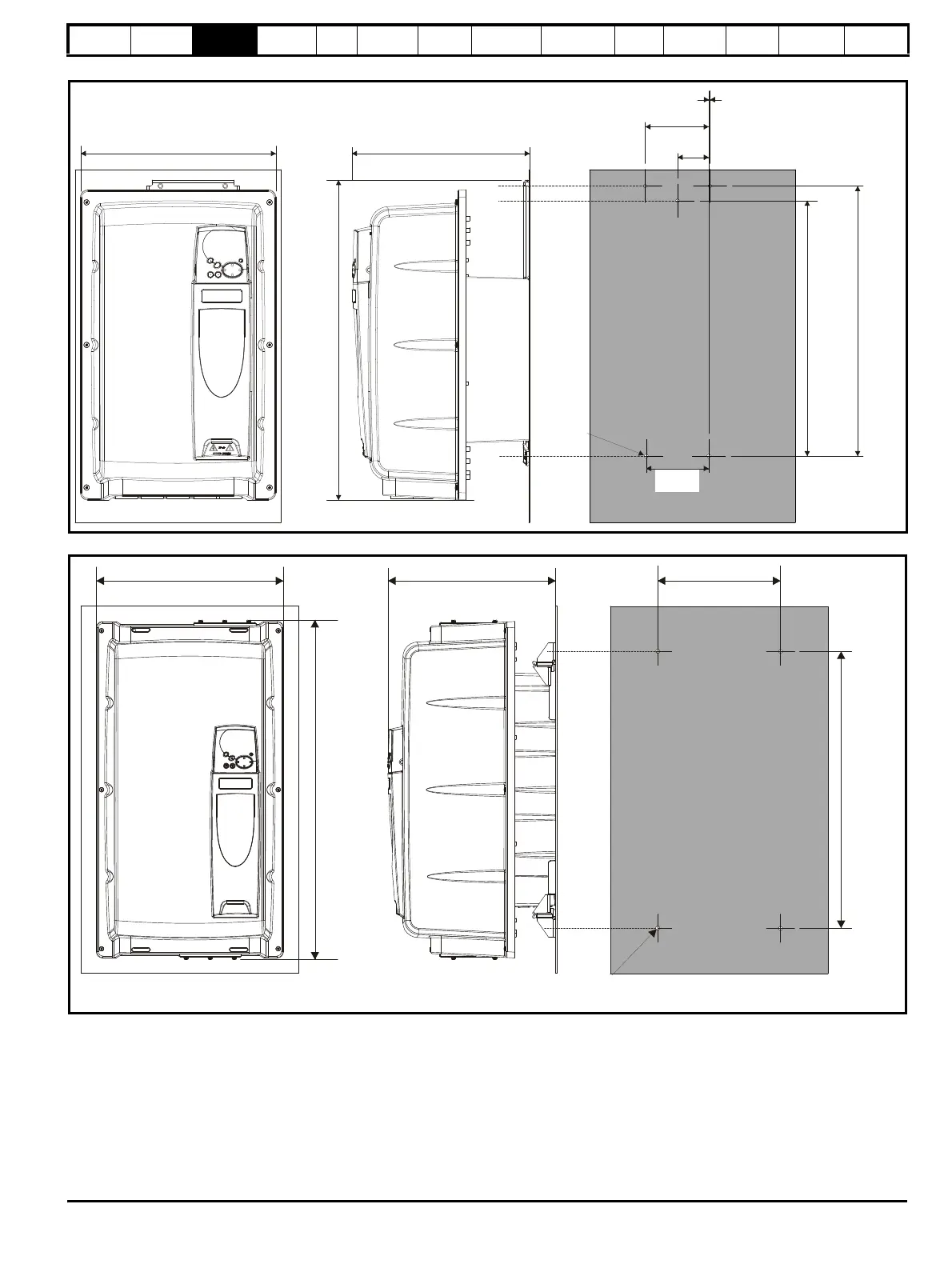

Figure 3-36 Size 3 E12/E54 and E12/E66 drive surface mounting
Figure 3-37 Size 4 E12/E54 drive surface mounting
331.3mm (13.04in)
543.6mm
(21.40in)
302.0mm (11.89in)
108.0mm
(4.252in)
53.0mm
(2.09in)
2.0mm
(0.8in)
434.0mm
(17.09in)
459.0mm
(18.07in)
∅
6.50mm
(0.26in)
106.0mm
(4.17in)
703mm
(27.71in)
386mm (15.2in) 346mm (13.62in) 253.6mm (9.98in)
573.4
(22.57in)
∅
8.5mm
(0.33in)
