3.11.1 E12/E54 filter change
There are two types of filter for the E12/E54 drives:
Small: 5610-0000
Large: 5610-0001
In order to replace the filters, follow the following instructions:

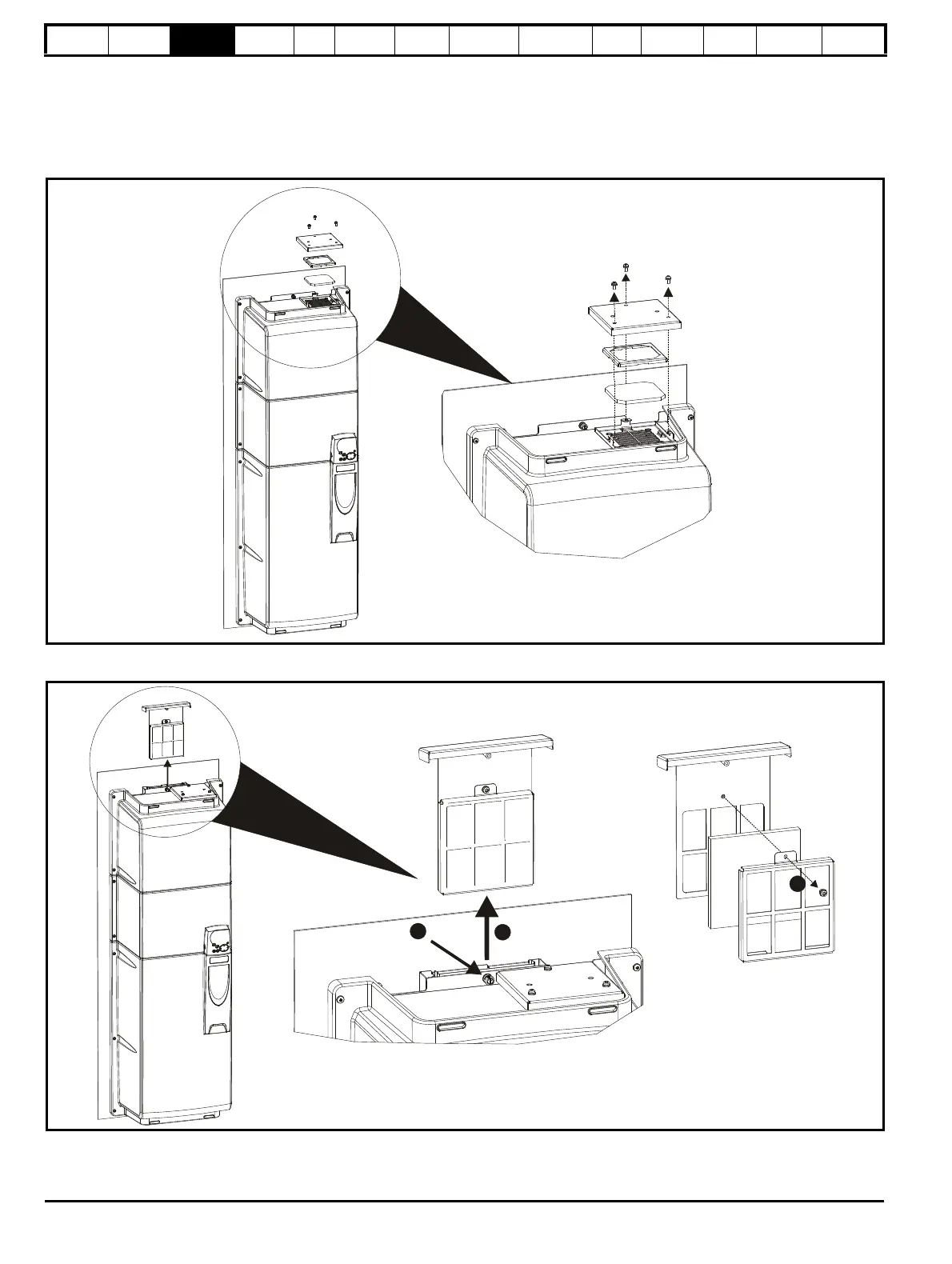

Figure 3-61 Replacing the small filters on the size 4, 5 and 6 E12/E54 drive (top and bottom on size 4 and top only on size 5 and 6)
Undo the three screws as shown in order to remove the covers and the filter.
Figure 3-62 Replacing the large top and bottom filters on the size 5 and 6 E12/E54 drive
1. Unwind the screw to release the filter cartridge.
2. Slide cartridge out in the direction shown.
3. Undo screw fully in order to open cartridge and replace filter.
