EZMotion User/Programming Guide 111
Revision A8 www.controltechniques.com

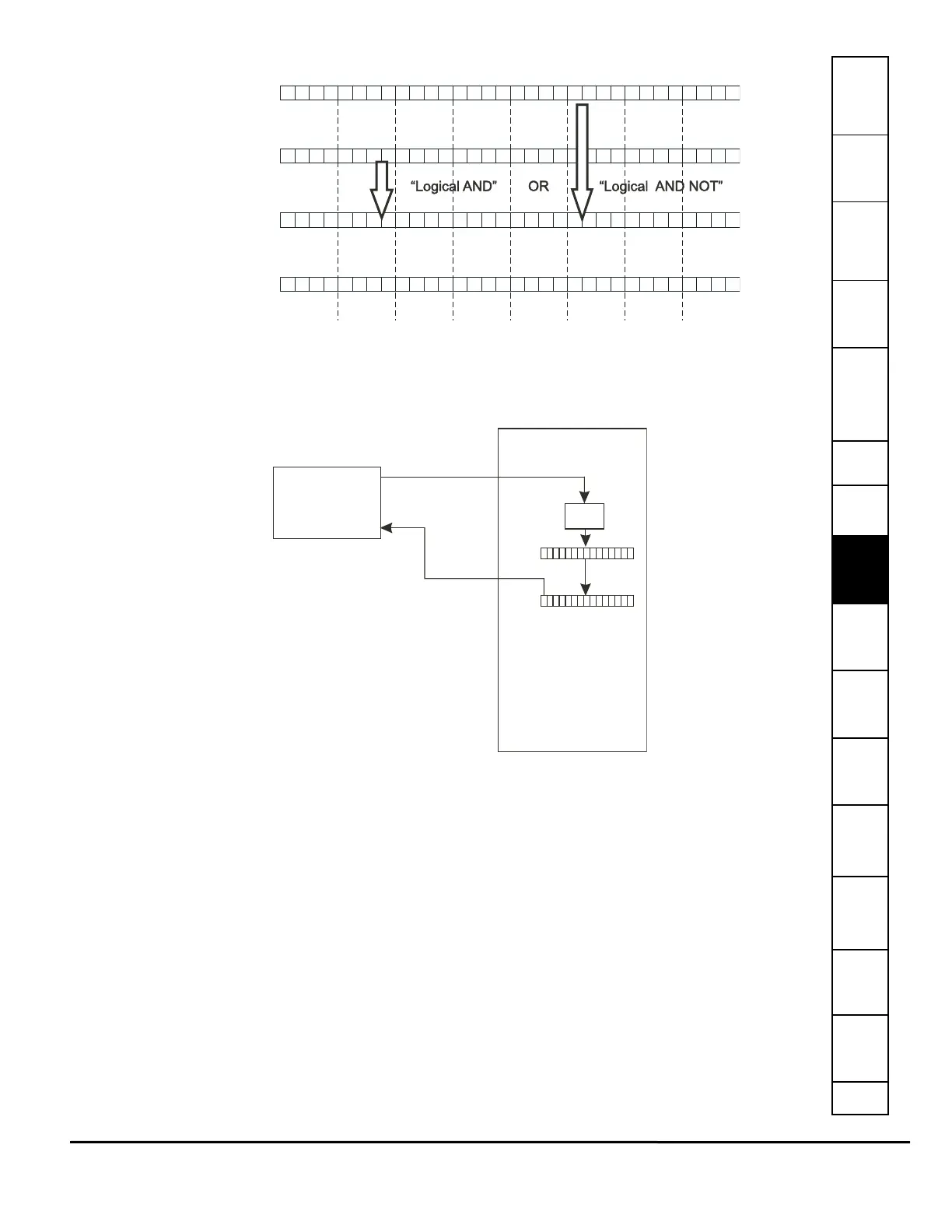

Figure 118: Writing to the Bit Register
The Mask is only used when WRITING to the 32-bit parameter, BitRegister.#.Value. When reading the 32-bit value, all bits are
read regardless of the mask.
Figure 119: Bit Read/Write Process
Configuring the User Bit Mask Register
The Bit Mask is a 32-bit parameter that can be configured through Power Tools Pro, in the User Program, or over the
communications network. The default value for the Mask register is 0xFFFFFFFF (HEX), or all bits ON. To change the Mask
value using PowerTools Pro, navigate to the Mask tab on the Bits view, see Figure 120.
01010101010101010101010101010101
10000001010000001000001000000000
015
Bit #31
01101000011110000111111101010110
11000000010100001101011101010100
Original
Value
Value written
over network
32-bit Mask
Result stored
in each bit
Network
Master
Write
Read
FM-3/4
Written data is AND’ed with the Mask
and then written into 32-bit Value.
Read data is read directly from the
32-bit Value and bypasses the Mask.
Mask
Value
AND
