EZMotion User/Programming Guide 39
Revision A8 www.controltechniques.com
get the highest accuracy for the Registration to Sensor, an EZMotion digital input must be used to take advantage of the high-
speed capture capability. Three Figures below show examples of a Registration Index to Sensor using different Offset values.

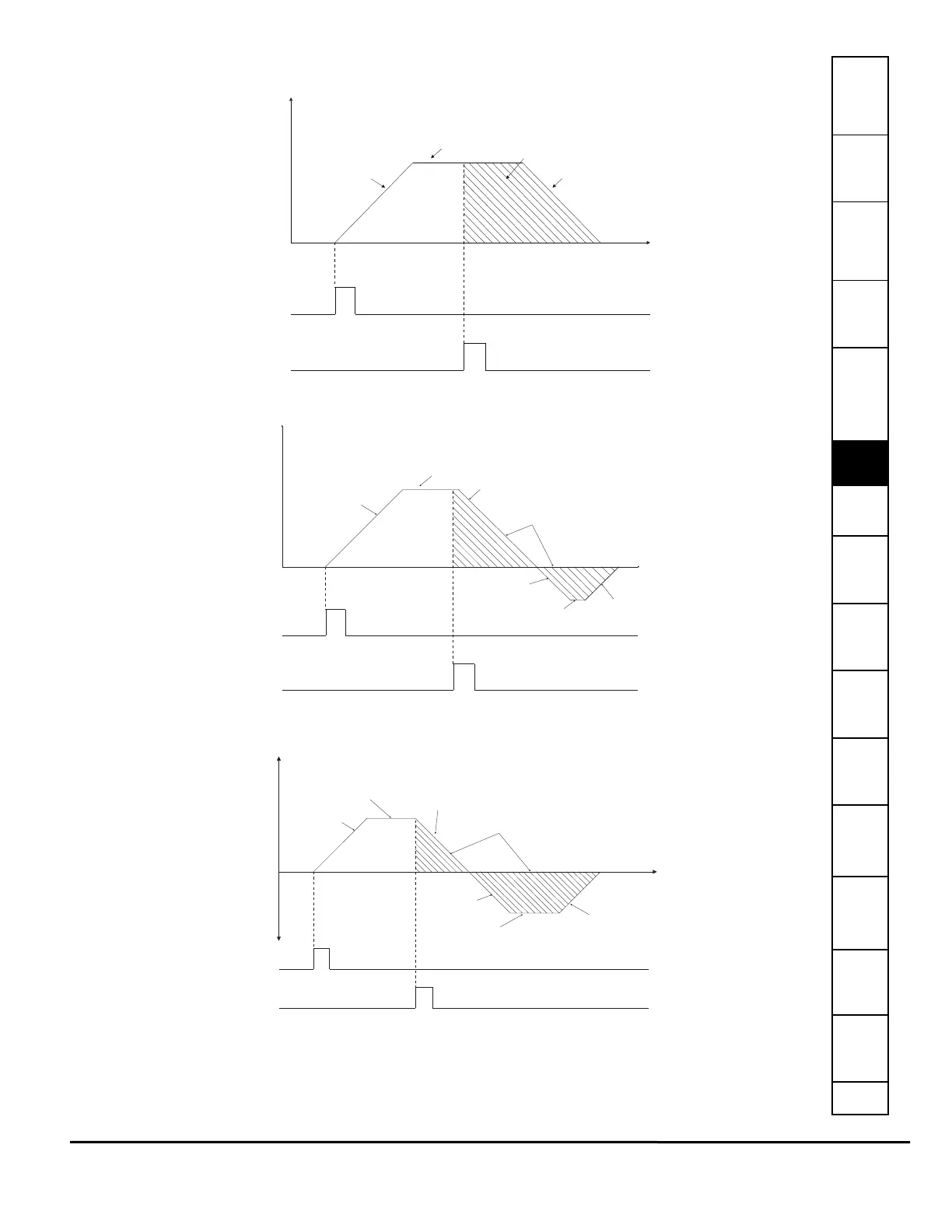

Figure 48: Registration to Sensor Profile (Offset > 0)
Figure 49: Registration to Sensor Profile (Offset = 0)
Figure 50: Registration to Sensor Profile (Offset < 0)
Velocity
Index Accel
Index Velocity
Index Decel
Time
Index Initiate
Registration Sensor
Index Registration Offset
Velocity
Index Accel
Index Velocity
Index Decel
Time
Index Initiate
Registration Sensor
Two areas are equal so motor
ends at exact registration position
Index Accel
Index Velocity
Index
Decel
Velocity
Index Accel
Index Velocity
Index Decel
Time
Index Initiate
Registration Sensor
Offset Distance
Index Decel
Index Velocity
Index Accel
+
-
