Cerabar S/Deltabar S Description of parameters (FF configuration program)
Endress+Hauser 51
TOTALIZER_2_UNIT/
TOTAL. 2 ENG. UNIT
Selection
Index: 83
Data type: Auto, OOS
Select unit for totalizer 2.
→ See also Page 58, Totalizer Transducer Block, parameter description for TOTALIZER_1_
UNIT/TOTAL. 1 ENG. UNIT
Prerequisite:
• Deltabar S differential pressure transmitter
Factory setting:
m
3
TOTALIZER_2_UNIT_
TEXT/
TOT. 2 UNIT TEXT
Selection
Index: 84
Data type: Visible String
Access: Auto, OOS
Enter text (unit) for customer-specific unit for totalizer 2.
→ See also Page 59, Totalizer Transducer Block, parameter description for TOTALIZER_1_
UNIT_ TEXT/TOT. 1 USER UNIT.
Prerequisite
• Deltabar S differential pressure transmitter
• TOTALIZER_2_UNIT_TEXT/TOTAL. 2 ENG. UNIT = user unit
Factory setting:
_ _ _ _ _ _ _ _
TOTALIZER_2_UNIT_
SCALE/
FACT. U. U. TOTAL. 2
Entry
Index: 85
Data type: Float
Access: Auto, OOS
Enter conversion factor for a customer-specific unit for totalizer 2.
→ See also Page 59, Totalizer Transducer Block, parameter description for TOTALIZER_1_
UNIT_SCALE/FACT. U. U. TOTAL. 1.
Prerequisite:
• Deltabar S differential pressure transmitter
• TOTALIZER_2_UNIT/TOTAL. 2 ENG. UNIT = user unit
Factory setting:
1.0
TOTALIZER_2_MODE/
NEG. FLOW TOT. 2
Entry
Index: 86
Data type: Unsigned8
Access: Auto, OOS
Specify way of counting negative flows for totalizer 2.
→ See also Page 59, Totalizer Transducer Block, parameter description for TOTALIZER_1_
MODE/NEG. FLOW TOT. 1
Prerequisite:
• Deltabar S differential pressure transmitter
PRESSURE_1_AFTER_
SENSOR/
SENSOR PRESSURE
Display
Index: 87
Data type: Float
Access: Auto, OOS

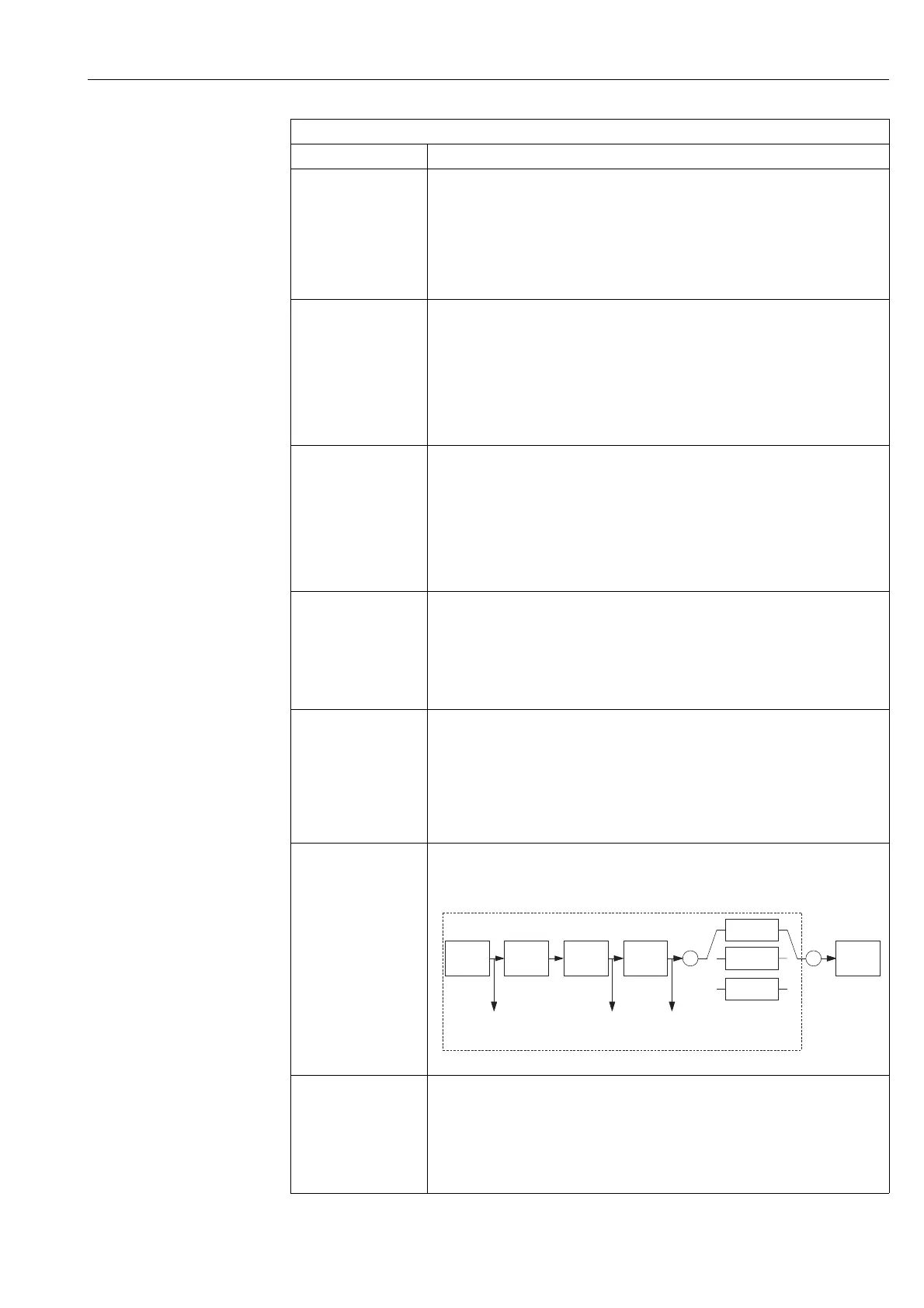

Displays the measured pressure before sensor trim, position adjustment and damping. → See
also the following graphic, parameter description for PRESSURE_1_AFTER_DAMPING/
PRESSURE.
PRESSURE_1_AFTER_
DAMPING/
PRESSURE
Index: 88
Data type: Float
Access: Auto, OOS
Displays the measured pressure after sensor trim, position adjustment and damping. This
value corresponds to the PRIMARY_VALUE parameter in the "Pressure" measuring mode.
P01-xMD7xxxx-05-xx-xx-xx-011
MEASURAND_LEVEL/
LEVEL BEFORE LIN
Display
Index: 89
Data type: Float
Access: Auto, OOS
Displays the level value prior to linearisation.
Prerequisite:
• LEVEL_TYPE/LEVEL MODE = linear or height linearized
Depending on the setting for the MEASURAND_LINEAR/LIN. MEASURAND or
MEASURAND_COMBINED/COMB. MEASURAND parameter, this parameter displays the
current level in % or in a unit of level.
Pressure Transducer Block
Parameter Description
P
PV
Sensor
Analog
Input
Block
Pressure
Level
Flow
Damping
Position
adjust-
ment
Sensor
trim
Transducer Block
PRESSURE_1_
AFTER_DAMPING/
PRESSURE
PRESSURE_1_
AFTER_CALIBRATION/
CORRECTED PRESS.
PRESSURE_1_
AFTER_SENSOR/
SENSOR PRESSURE
