Unless otherwise mentioned, the illustrations used in this guide show the
projector with the lens unit (ELPLM12) installed,

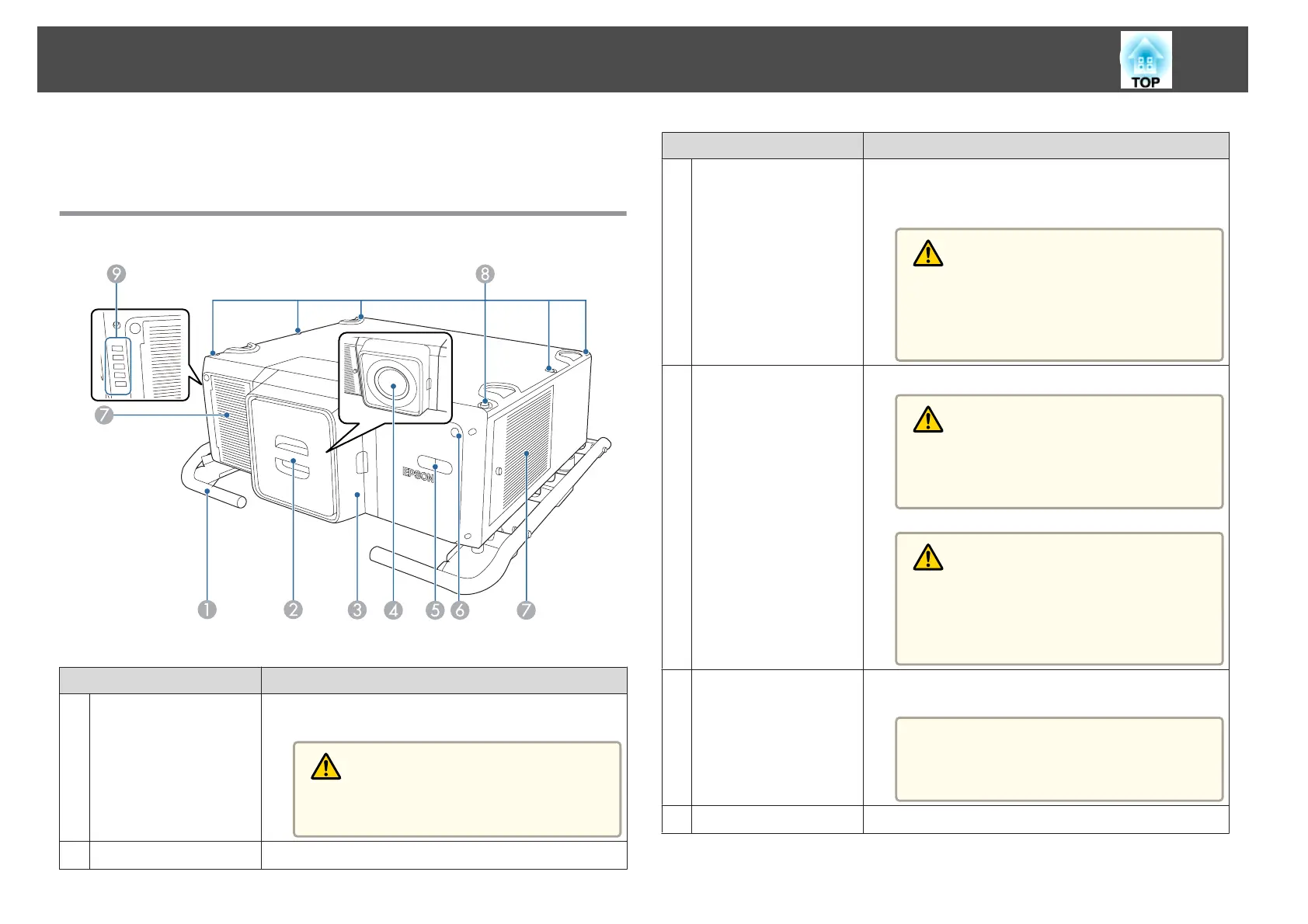

Front/Top
Here, the protective cap is installed.
Name Function
A
Handles
Use the handles on the left and right when carrying the
projector.
Caution
Be careful not to trap your fingers between the
handle and the installation surface.
B
Protective cap
Install this when storing or transporting the projector.
Name Function
C
Lens replacement
cover
Remove when attaching or removing the lens.
s "Removing and Attaching the Projector Lens Unit"
p.25
Caution
When moving the projector, do not hold the lens
replacement cover. The lens replacement cover
may be removed and the projector may fall, which
could cause an injury.
D
Projection lens
Images are projected through here.
Warning
Do not look into the lens while projecting. This
could cause damage to eyesight due to the power‐
ful light emitted.
Caution
When shifting the lens, do not put your hands near
the lens unit. Your fingers may get caught between
the lens unit and the projector, and cause an in‐
jury.
E
Built-in camera
This camera scans the image when correcting the
projected image automatically.
Attention
Exposing the camera to bright light may
cause a malfunction to occur.
F
Remote receiver
Receives signals from the remote control.
Part Names and Functions
14
