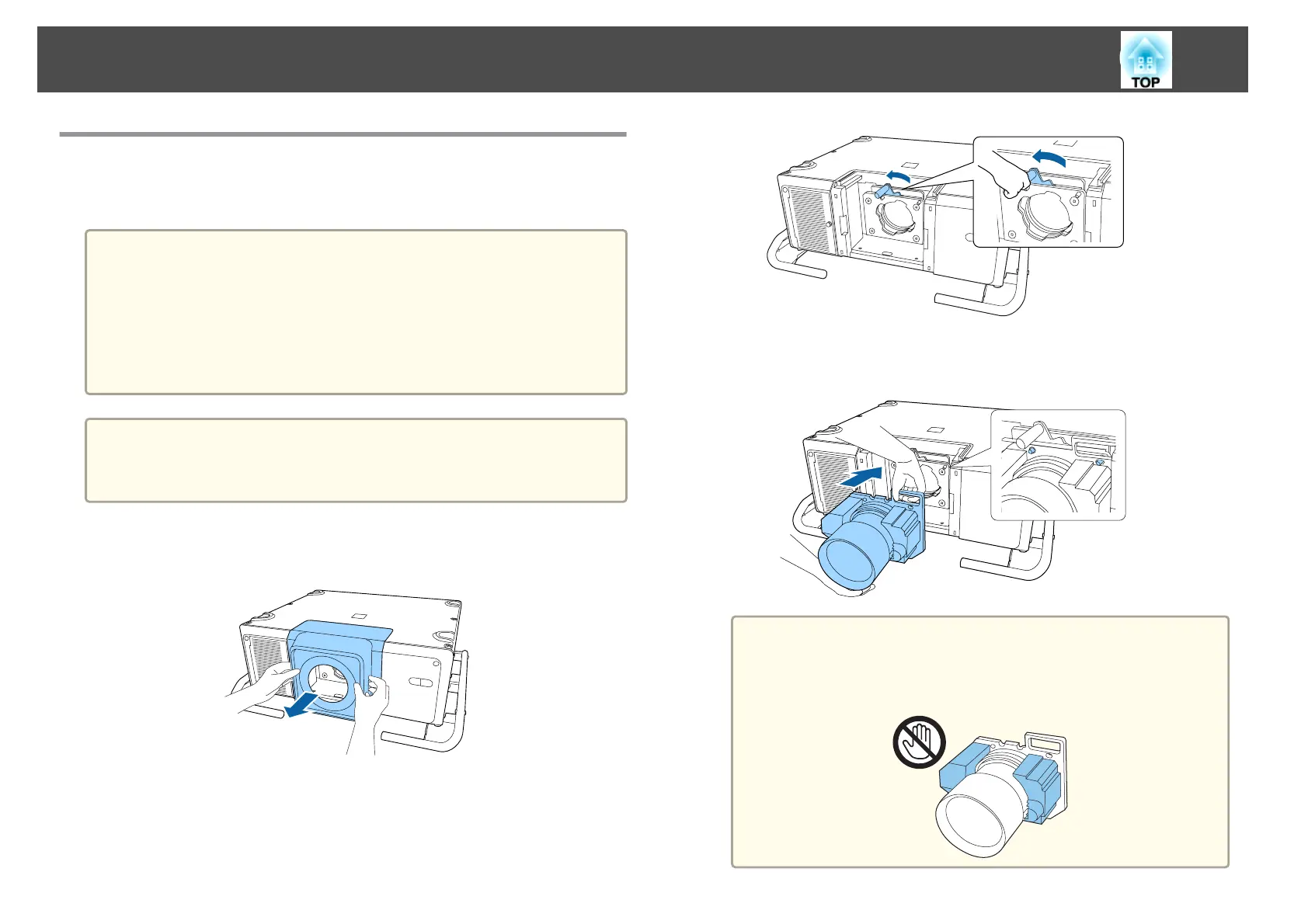

Removing and Attaching the Projector Lens Unit
Attaching
Attention
• When attaching the lens unit, remove the power plug from the electrical
outlet first.
• Do not attach the lens unit when the projector's lens insertion section is
facing up. Dust or dirt could enter the projector.
• Try not to touch the lens section with your hand or fingers. If fingerprints or
oils are left on the surface of the lens, projection quality deteriorates.
a
The projector supports lens with the following model numbers.
ELPLR05/ELPLU05/ELPLW07/ELPLM12/ELPLM13/ELPLM14/
ELPLL09/ELPLL10
a
While pressing the tabs on both sides of the lens replacement
cover, pull it towards you to remove it.
b
Turn the lock lever counterclockwise.
c
Insert the lens unit straight so that the protruding points on the
lens fit through the holes (2 points) at the top of the lens unit.
Attention
When attaching the lens unit, do not touch the motor covers shown in
the following illustration (2 points). Otherwise, the lens unit may
malfunction.
Installing the Projector
25
