Preparing
17
c
When suspending from the ceiling and projecting, set Projection to Front/Ceiling or Rear/
Ceiling.
s
Extended - Projection p.70

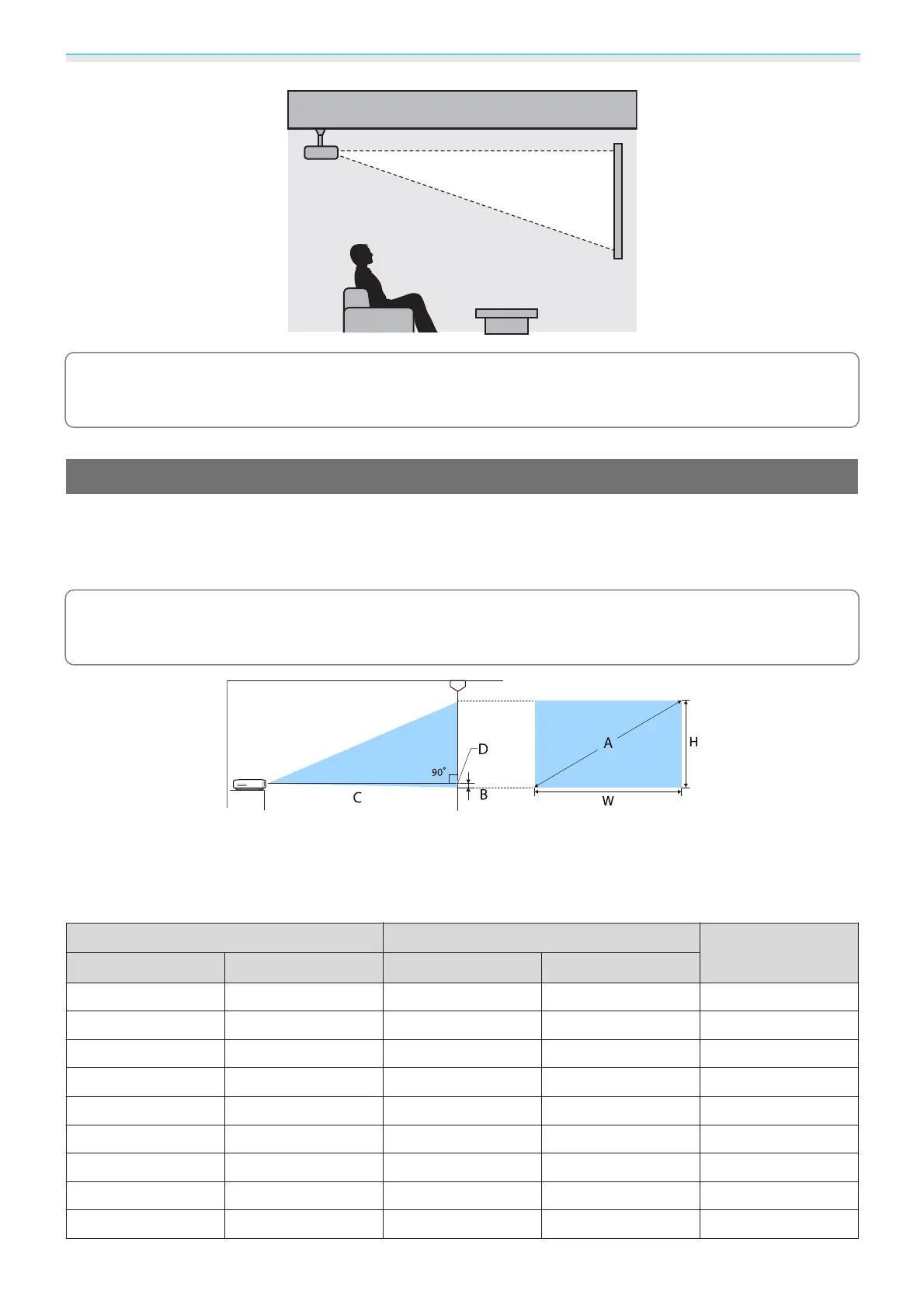

Adjusting the Projection Size
The size of the projection increases as the projector is moved away from the screen.
Use the table below to setup the projector at the optimum position from the screen. The values given here
are for your reference only.
c
The projected image becomes smaller after correcting distortion. Increase the projection distance
to fit the projected image to the screen size.
B Distance from the center of the lens to the base of the projected image
D The center of the lens
Unit: cm
16:9 Screen Size Projection Distance (C) Distance (B)
A W x H Minimum (Wide) Maximum (Tele)
30" 66 x 37 80 96 -3
40" 89 x 50 107 129 -5
50" 111 x 62 135 162 -6
60" 133 x 75 162 195 -7
80" 177 x 100 217 261 -9
100" 221 x 125 272 327 -11
150" 332 x 187 410 492 -17
200" 443 x 249 547 658 -23
250" 553 x 311 685 823 -28
