0-7
EMP-TW1000
SEIKO EPSON Revision:A

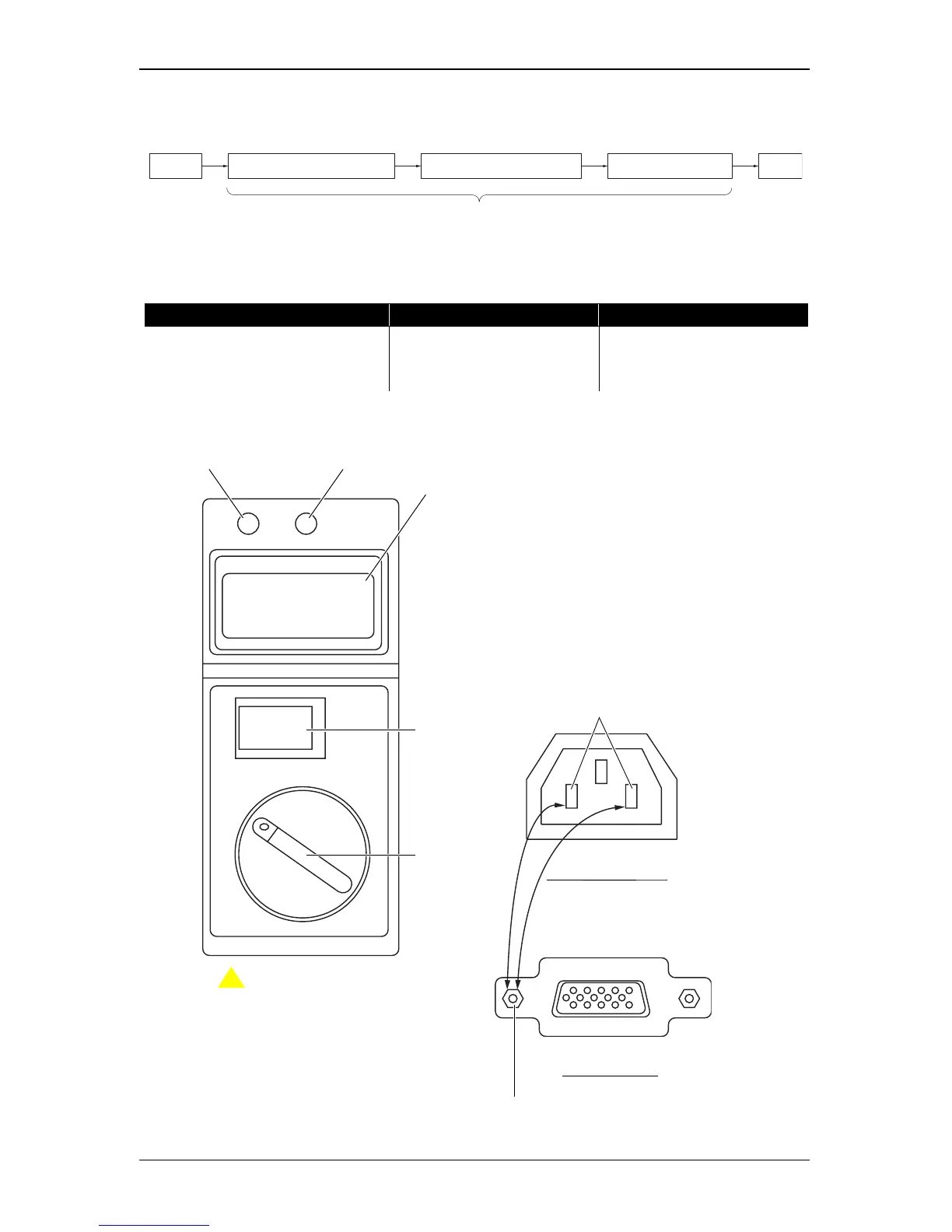

 Testing procedure
Carry out testing in the order given below.
 Testing methods
1). Insulation resistance test
• Testing apparatus: Insulation ohmmeter (Rating: 500 V/100 MΩ)
• Insulation ohmmeter settings
Check Item Tool Standard
Insulation resistance check Insulation ohmmeter
Insulation resistance
should be 10 MΩ or
more.
Repair EndInsulation resistance test Ground continuity check
Safety inspections
Illumination check
a b
Projector AC inlet
PC connector
(1) (2)
1. Set the range selection switch to 500 V.
2. Connect the black lead wire to the ground terminal.
3. Connect the red lead wire to the line terminal.
4. Connect the black lead wire (crocodile clip) to c in
order to measure the insulation resistance (1) (between
a and c) in the diagram below.
5. Next, insert the probe of the red lead wire into a.
6. Set the measure switch to LOCK, and then measure the
insulation resistance after 1 minute.
7. Check that the insulation resistance after 1 minute is
10 MΩ or more.
8. Next, measure the insulation resistance at (2) (between
b and c) in the diagram below in the same way as for
(1).
9. Check that the insulation resistance at (2) after 1 minute
is 10 MΩ or more.
Ground terminal Line terminal
Display
Measure switch
Range selection
switch
! Caution
Because high voltage (500 V) is present,
do not touch the probe during testing.
Exposed metal part of projector
c
Power supply lines
