4-20
EMP-TW1000
SEIKO EPSON Revision:A
2. Disconnect all the cable connectors that are connected to the MA board.

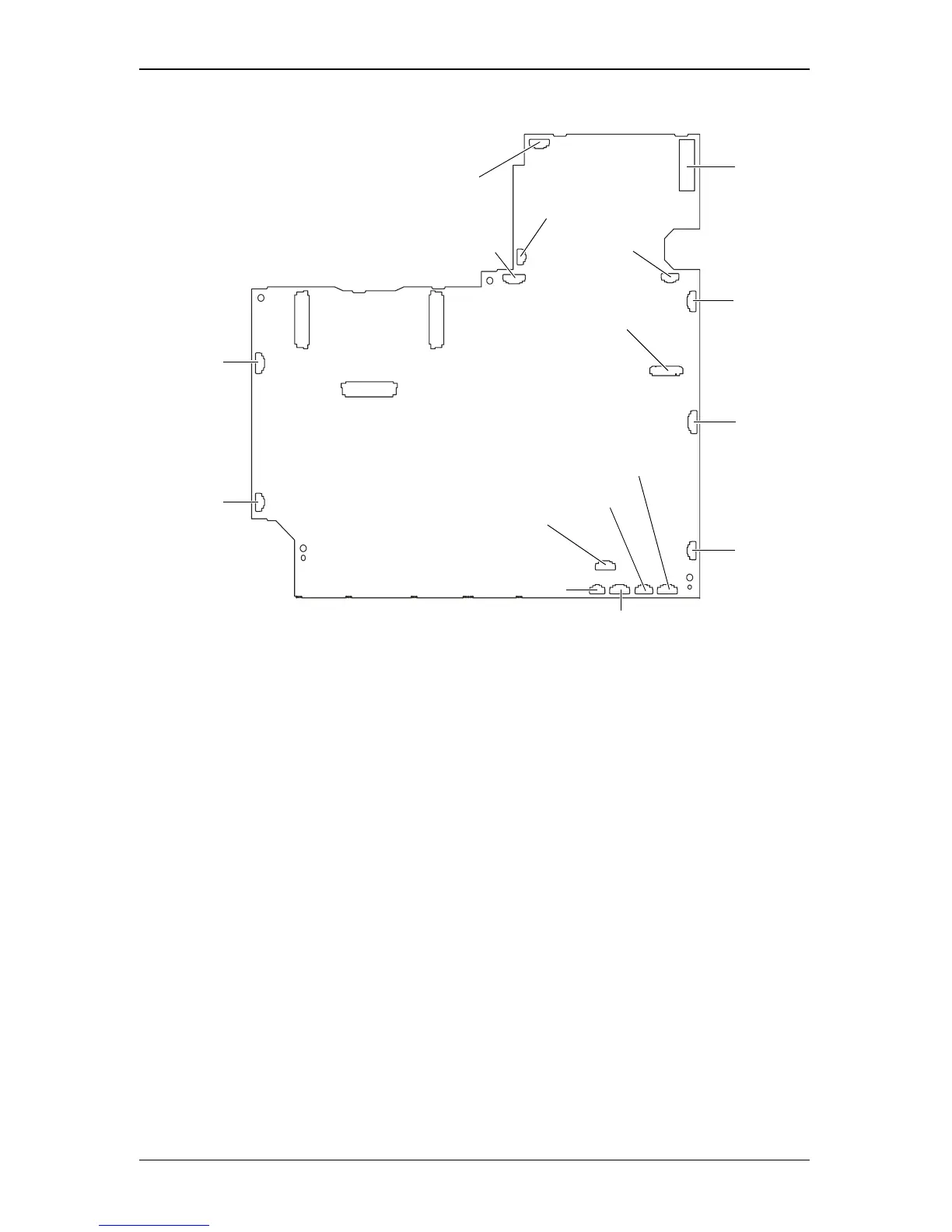

Figure 4-15.
CN1302
CN1301
CN1501
CN1505
CN1702
CN1500
CN1304
CN1300
CN1701
CN1504
CN1700
CN1305
CN4000
CN1303
CN1703
CN1503
