Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 155
SE Group Confidential (Related Staff Only)
3.4.5.6 CR FFC
1. Remove the Media Loading Lever. (p210)
2. Remove the Panel Unit. (p101)
3. Remove the Right Upper Cover. (p103)
4. Remove the Left Rear Cover. (p110)
5. Remove the Left Upper Cover. (p111)
6. Remove the Upper Cover. (p116)
7. Remove the CR Cover. (p139)
8. Remove the Duct CR. (p140)
9. Remove the Print Head. (p144)
10. Remove the Head FFC. (p150)
11. Remove the Board Box Cover. (p117)
12. Disconnect the CR FFC from the connector on the Sub Board.
13. Disconnect the CR FFC from the Ink Path Holder Assy.

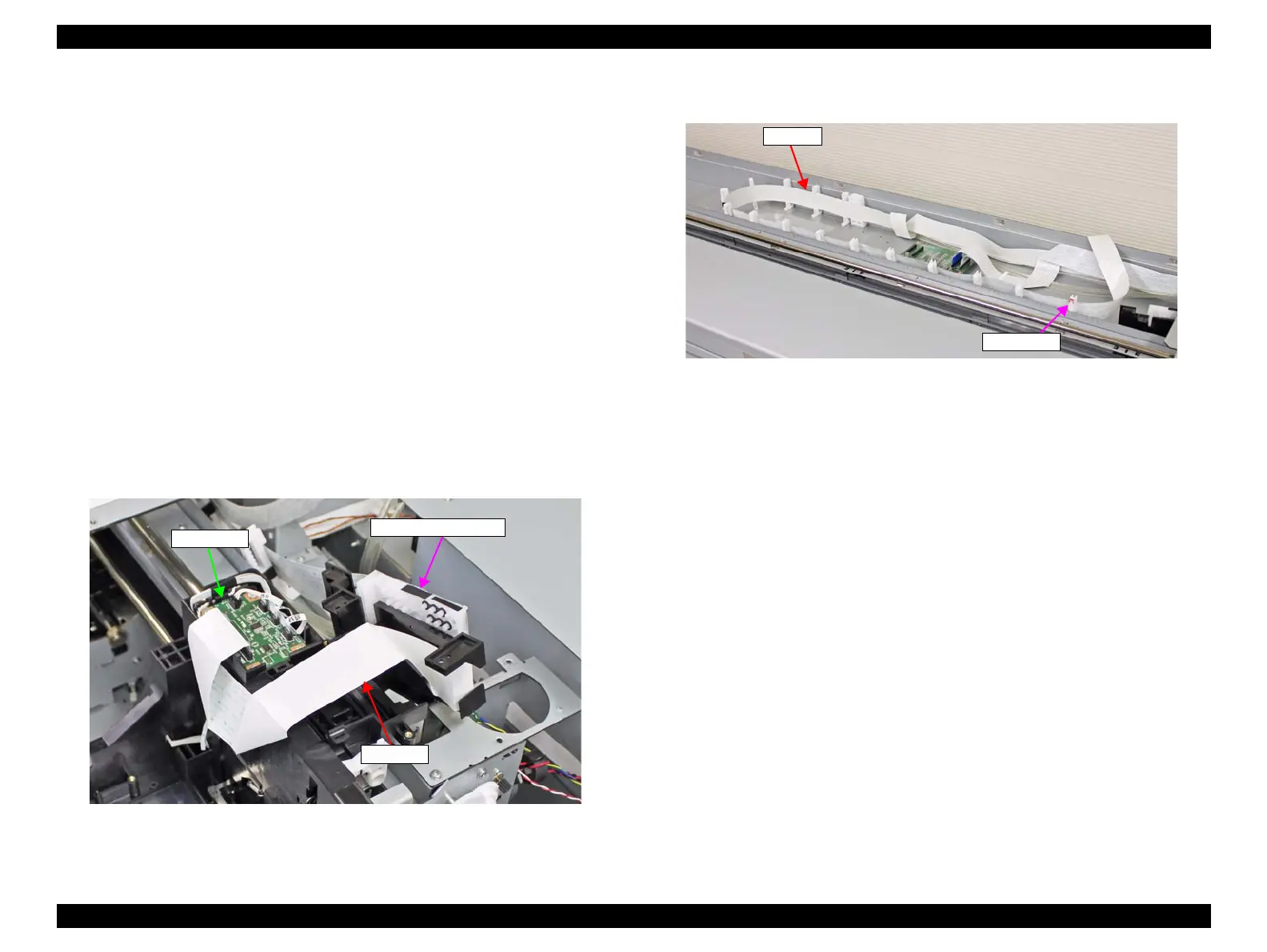

Figure 3-93. Releasing the CR FFC
14. Release the CR FFC from the FFC Holders.
Figure 3-94. Releasing the CR FFC
Sub Board
Ink Path Holder Assy
CR FFC
FFC Holder
CR FFC
