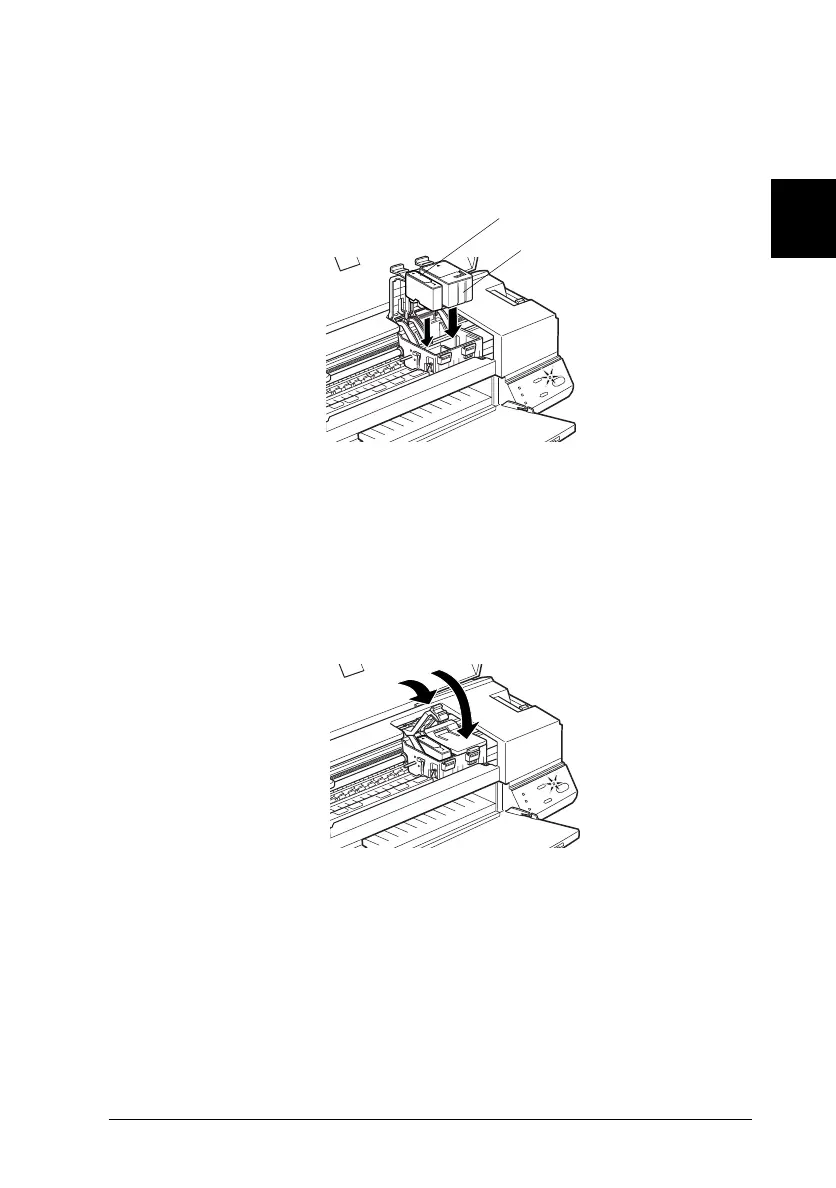

5. Lower the cartridges into their holders with the labels face-up
and the arrow marks pointing to the rear. The color
cartridge, which is larger, goes on the right and the black
ink cartridge goes on the left.
Note:
Install both ink cartridges. If either of the cartridges is not
installed, the printer will not work.
6. Press the ink cartridge clamps down until they lock in place.
c
Caution:
Once you install the ink cartridges, do not open their
clamps again until you replace the ink cartridges.
Otherwise, the cartridges may become unusable.
black
color
24
25
2
R
Fiji2 Ref. Guide
Rev.b
A5 size Chapter 2
05-29-97 DR, pass 0
Getting Started
2-9
