Epson Stylus Color 980 Service Manual

EPSON Stylus Color 980 Revision A
Disassembly and Assembly Disassembly Procedures 106
4. Remove two screws securing the waste ink drain pad cover to the
lower case and remove it.
5. Remove four screws securing the rear case to the stay on the C380
Main board.

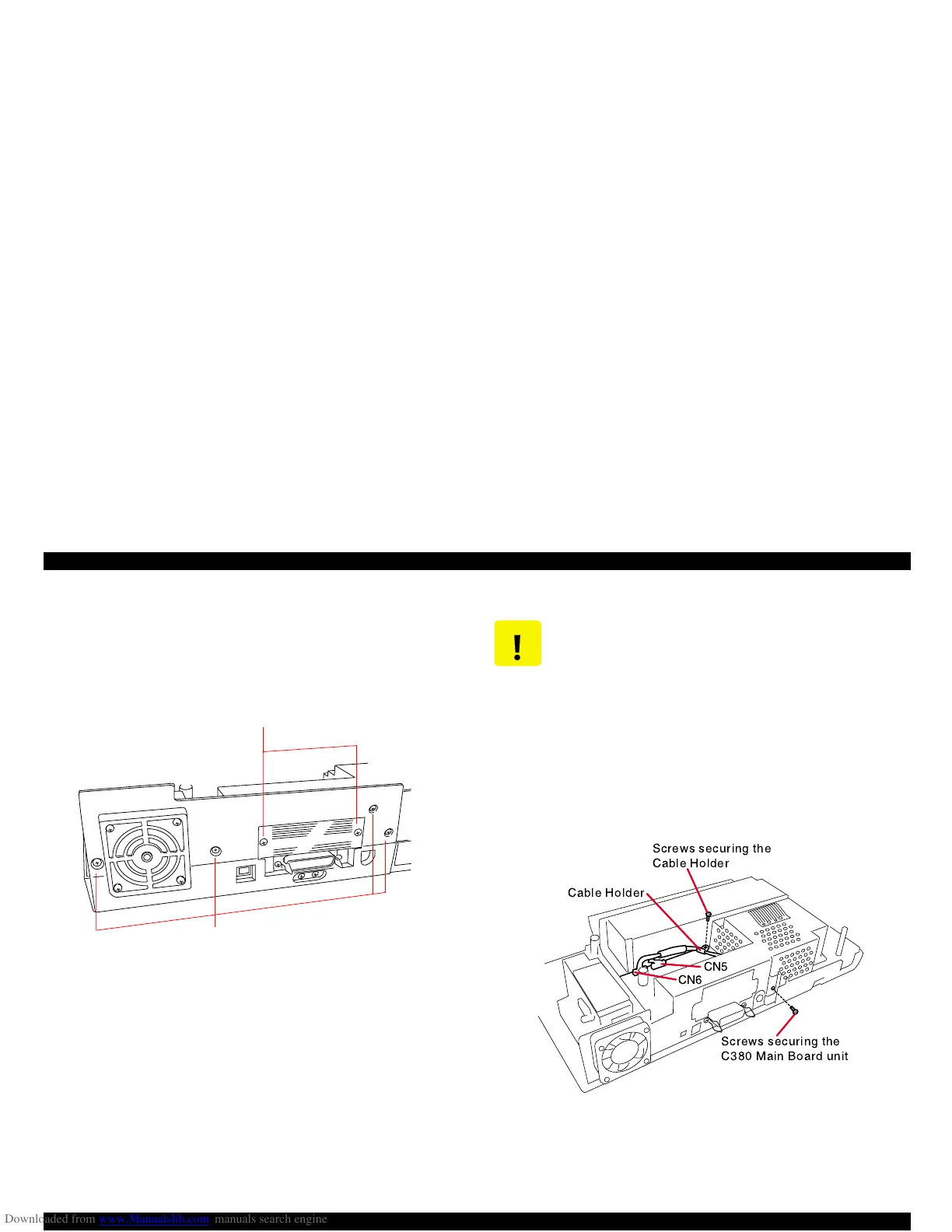

Figure 4-6. Rear case Removal
6. Remove two screws securing the Type B interface cover to the
printer, and remove the rear case.
7. Remove one screw securing the frame to the shield plate on the
C380 Main board and another two screws securing the frame to the
lower case then remove the frame. (See Figure 4-4)
8. Disconnect two printhead control FFCs from the C380 main board.
9. Remove four large screws securing the printer mechanism to the
lower case, and remove the printer mechanism.
4.2.3 C380 Main Board Unit Removal
1. Remove the printer mechanism. (See Section 4.2.2.)
2. Remove one screw securing the C380 Main board unit to the shield
plate on the C265 PSB / PSE board.
Figure 4-7. C380 Main Board Removal
3. Remove one screw securing the C380 Main board to the bottom
frame, and remove the cable holder.
Screws securing the Rear Case
Screws securing the Type B I/F Cover
CAUTION

After replacing the Waste Ink Pads, perform any
necessary adjustments. (See Table 4-1)

When mounting the four screws, do not fasten them
excessively, or the tapped areas in the lower will be
damaged.
CN5
CN6
Screws securing the
C380 Main Board unit
Screws securing the
Cable Holder
Cable Holder
