Disassembly and Assembly Disassembly Procedures 120
4.2.7.6 ASF Sensor Removal
1. Remove the ASF unit. (See Section 4.2.7.5.)
2. Viewing the ASF unit from the front, remove the E-ring (left) fixed at
the left end of the shaft.

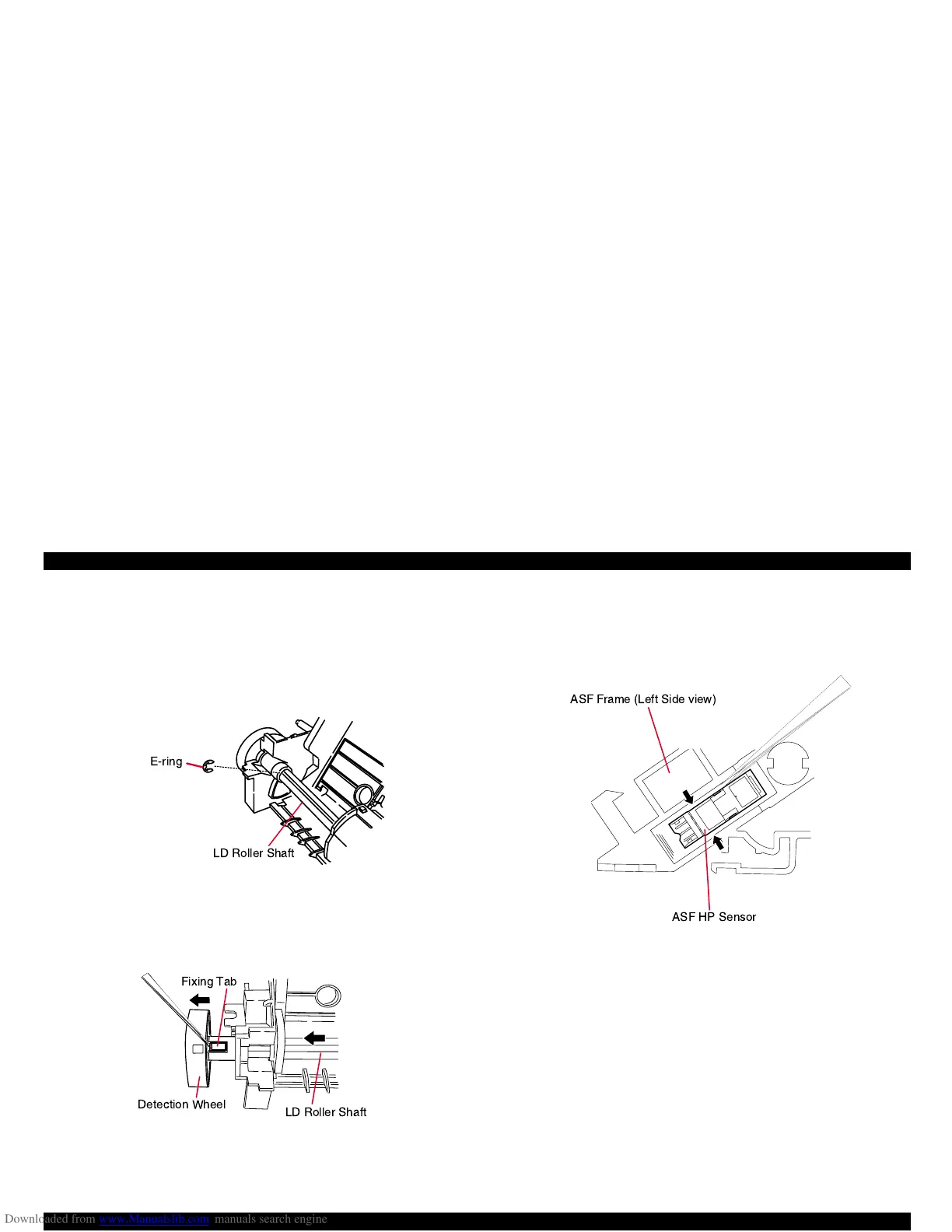

Figure 4-34. Left E-ring Removal
3. Release the hook securing the detection wheel and push the
detection wheel to remove.
Figure 4-35. Detection Wheel Removal
4. Disconnect the connector from the ASF sensor.
5. Using tweezers, release two of the hooks securing the ASF sensor,
and remove the ASF sensor.
Figure 4-36. ASF Sensor Removal
E-ring
LD Roller Shaft
Fixing Tab
Detection Wheel
LD Roller Shaft
ASF Frame (Left Side view)
ASF HP Sensor
