Epson Stylus Color 980 Service Manual

EPSON Stylus Color 980 Revision A
Maintenance Lubrication and Adhesion 155

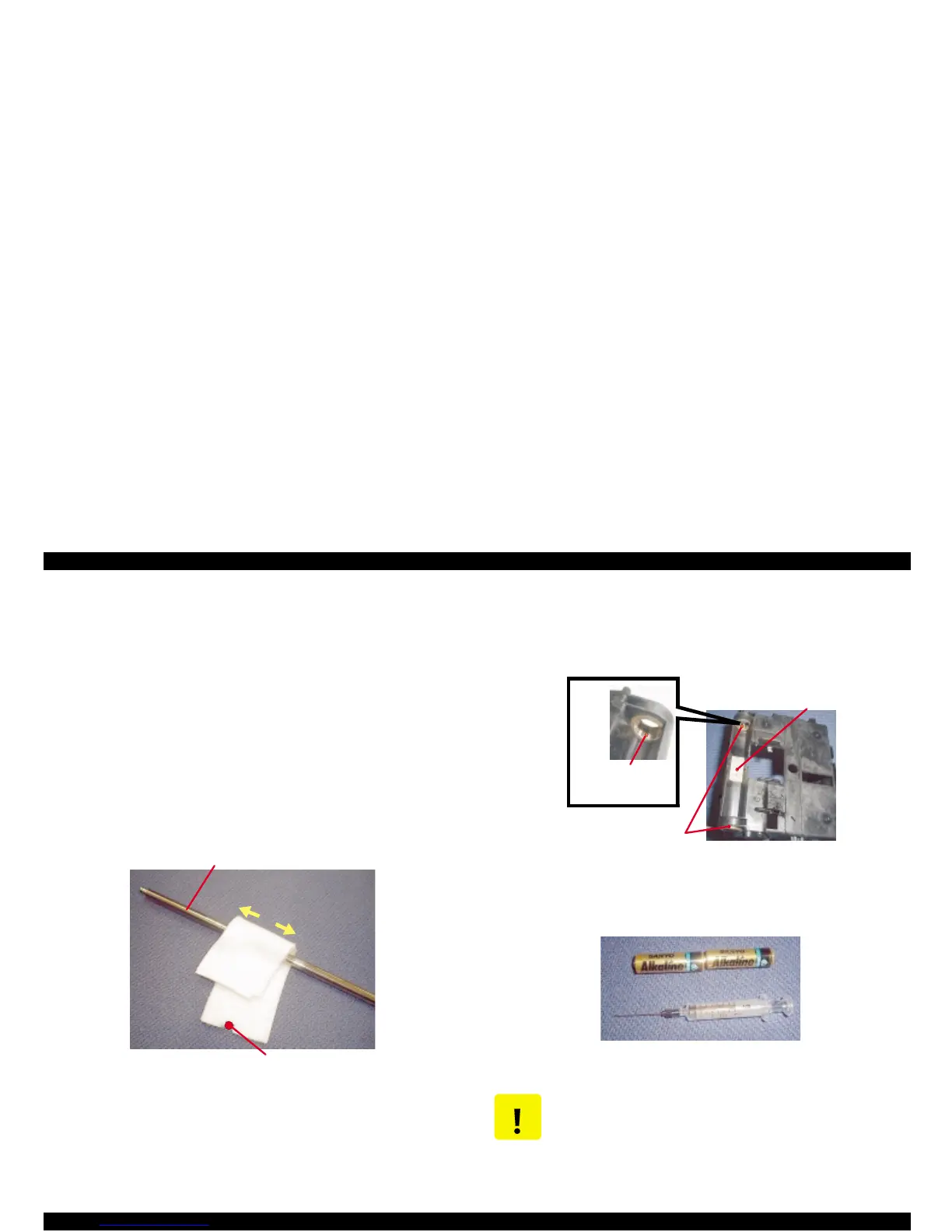

6.2.1 Lubricating the Carriage Guide Shaft
This section includes the procedure for lubricating the carriage guide
shaft. Unlike other models, the lubrication of the carriage guide shaft is
performed under many restrictions. Therefore, be sure to observe the
CAUTION in the previous section and perform lubrication by strictly
following the steps specified.
1. Remove the printhead. (Refer to 4.2.7.1.)
2. Remove the carriage unit. (Refer to 4.2.7.10.)
3. Clean the carriage shaft by wiping the shaft’s surface with a dry
cloth.
Figure 6-2. Cleaning the Carriage Guide Shaft
4. Remove the Oil Pad (a felt pad) from the back of the carriage unit.
5. Using the dry cloth, completely wipe the inner surfaces of the 2
metallic bushings through which the carriage guide shaft is set.
Especially, wipe well off black stains if any. Also, clean the portion
where the pad was attached using the cloth.
Figure 6-3. Locations for Oil Pad and Bushings
6. Get a smallest-diameter syringe available. The small syringe shown
below only contains 2 cc maximally.
Figure 6-4. Small Syringe
C arriage G uide Shaft
D ry cloth
CAUTION
Be sure to use a small-diameter syringe to minimize
the tolerance. Small syringe allows you to see pushed
amount (stroke) more clearly.
O il P a d
M etallic bushings
W ipe off black
stains com pletely.
