Epson Stylus Color 980 Service Manual

EPSON Stylus Color 980 Revision A
Disassembly and Assembly Disassembly Procedures 114
4.2.7.3 PF Motor Removal
1. Remove the printer mechanism. (See Section 4.2.2.)
2. Remove the PF roller drive gear from the PF roller shaft.

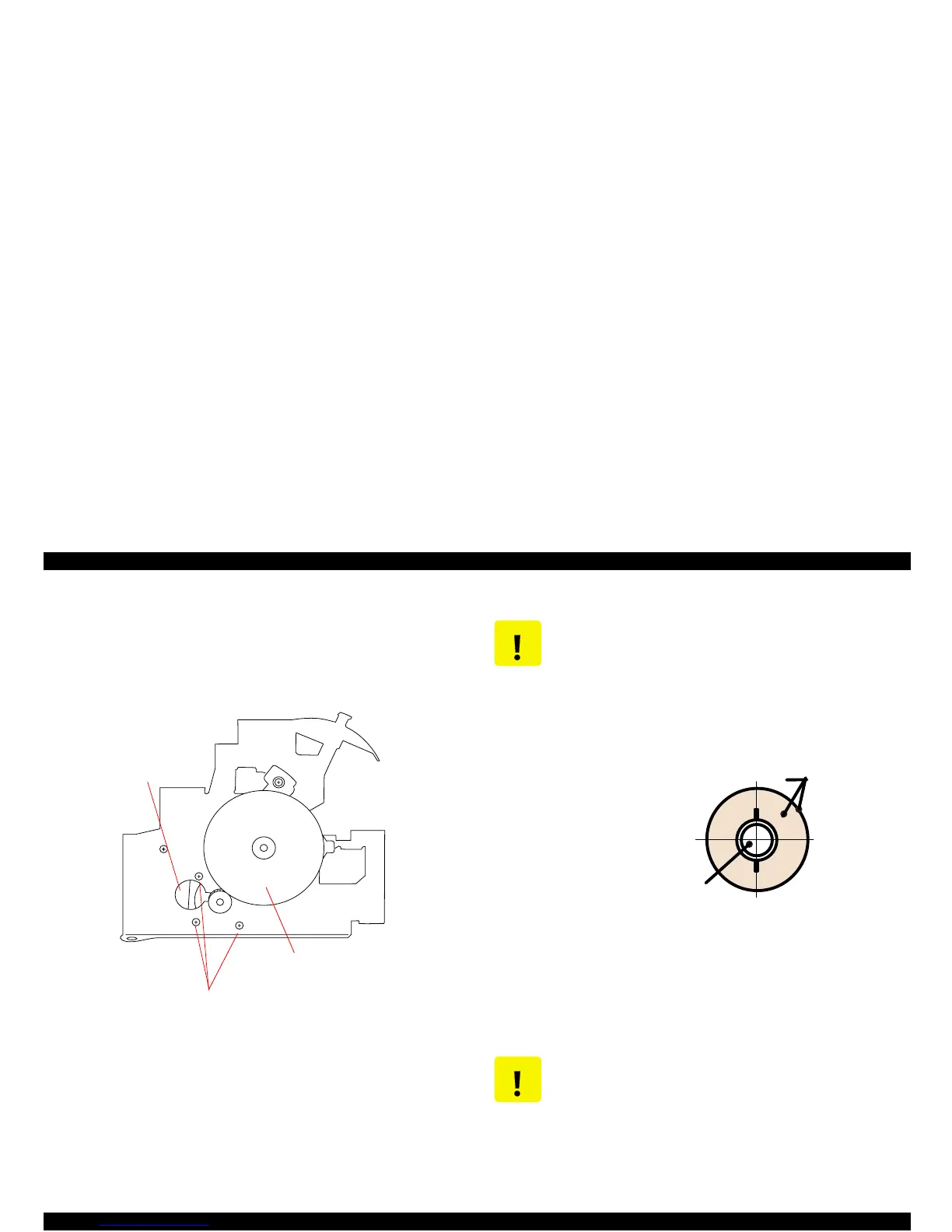

Figure 4-20. PF Motor Removal
3. Remove three screws securing the PF motor to the printer
mechanism, and remove the PF motor.
PF Motor Pinion
Screws securing the PF Motor
PF Roller Drive Gear
CAUTION

A high-precision gear is used for the PF roller drive
gear. Therefore, if the PF roller drive gear has been
removed, it must not be used again. Neglecting this
may cause a printer malfunction.

When installing a new PF roller drive gear, be sure to
push it intensively by its center area, not forcing a
push by its edge.
Figure 4-21. PF Roller Driver Gear Installation
CAUTION

PF motor pinion gear as well as the PF roller drive
roller is a high-precision gear. Therefore, be careful
not to damage the gear by hitting it by the frame
edges.

When installing the PF motor, be sure not to touch the
pinion gear surface with a screw driver.
D o not push the edge
n o r s u rfa c e o f th e g e a r.
Center area
PF R oller D rive G ear
