Epson Stylus Color 980 Service Manual

EPSON Stylus Color 980 Revision A
Disassembly and Assembly Disassembly Procedures 108
4.2.5 Shield Plate on the C380 Main Board Removal
1. Remove the C380 Main board unit. (See Section 4.2.3.)
2. Remove the cooling fan unit. (See Section 4.2.4)
3. Remove the remaining four connectors from the relay board. (See
Figure 4-5 when connecting them.)
4. Remove two screws securing the right upper main shield plate to
the bottom frame and another two screws securing the left upper
main shield plate to the bottom frame, then remove the both plates
together.

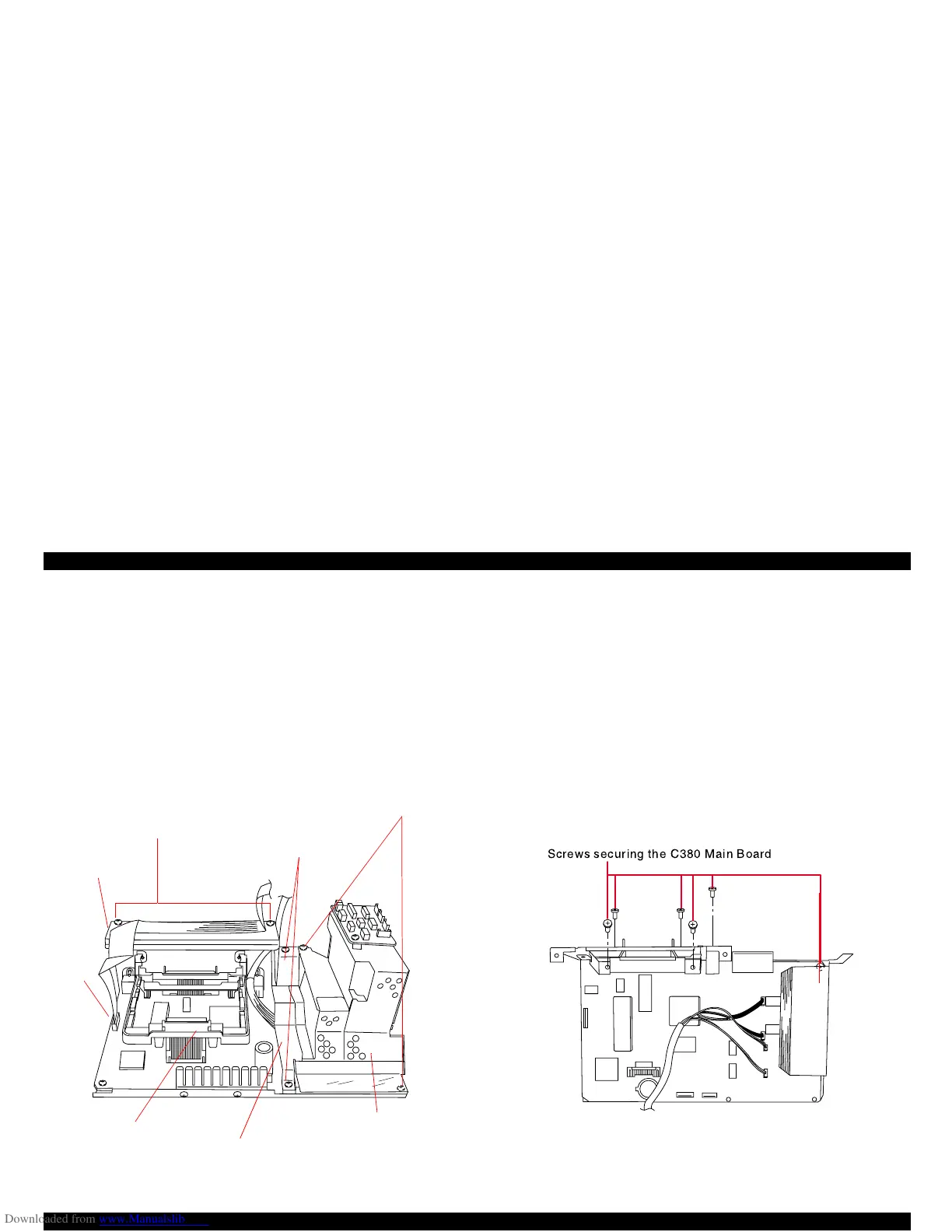

Figure 4-9. Shield Plate Removal (1)
5. Disconnect the FFC from the connector CN15 on the C380 Main
board.
6. Remove two screws securing the shield plate (top) to the bottom
frame, and remove the shield plate (top).
7. Remove the Type-B interface guide.
8. Remove three screws securing the C380 Main board onto the
bottom frame. (Two screws among the three are fixing the
reinforcing plate for the Type-B interface guide.)
9. Viewing the C380 Main board from the Centronics I/F connector
side, remove three small screws and remove the C380 Main board.
Figure 4-10. Shield Plate Removal (2)
Screws securing the
Screws securing the
Left Upper Main Shield Plate
Right Upper Main Shield Plate
Type B I/F Guide
CN15
Shield Plate (top)
Screws securing the
Shield Plate (top)
Left Upper Main Shield Plate
Right Upper Main Shield Plate
Screws securing the C380 Main Board
