Epson Stylus Color 980 Service Manual

EPSON Stylus Color 980 Revision A
Disassembly and Assembly Disassembly Procedures 116
4.2.7.5.1 ASF Disassembly
1. Remove the ASF. (See Section 4.2.7.5.)
2. Remove the left shaft E-ring located at the left end of the loading
(LD) roller shaft.

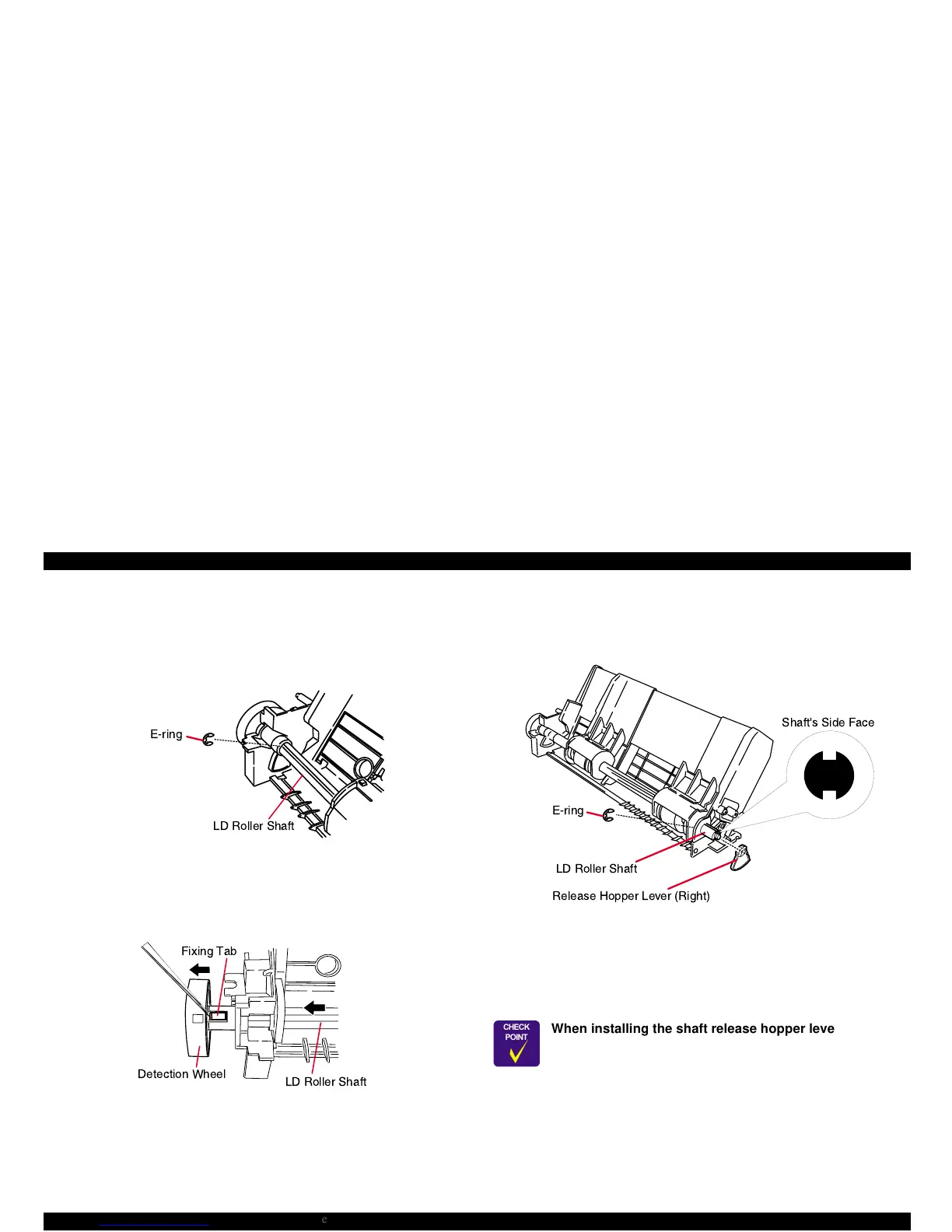

Figure 4-24. Left E-ring Removal
3. Shift the whole LD roller shaft to the left about 2 cm. Then, using
tweezers, remove the detection wheel by releasing the tab attaching
the detection wheel to the left end of the LD roller shaft.
Figure 4-25. Detection Wheel Removal
4. Remove the release hopper lever (right) from the LD roller shaft
5. Remove the right shaft E-ring located at the right end of the loading
(LD) roller shaft.
Figure 4-26. Release Hopper Lever Removal
6. Shift the LD roller shaft to the left to pull it out from the paper loading
rollers (right and left).
E-ring
LD Roller Shaft
Fixing Tab
Detection Wheel
LD Roller Shaft
CHECK
POINT
When installing the shaft release hopper lever, pay
attention to the direction for installing it. However, the
lever does not fit in if the direction is wrong. Therefore,
referring to Figure 4-26, find the correct direction with
which you can push the release hopper lever without
force.
E-ring
Shaft's Side Face
LD Roller Shaft
Release Hopper Lever (Right)
