Epson Stylus Color 980 Service Manual

EPSON Stylus Color 980 Revision A
Disassembly and Assembly Disassembly Procedures 125
4.2.7.12 Paper Eject Frame Removal
1. Remove the printer mechanism. (See Section 4.2.2.)
2. Remove the pump unit. (See Section 4.2.7.11.)
3. Remove the carriage unit. (See Section 4.2.7.10.)
4. Remove hooks securing 2 FFC holders (one on the paper eject
frame and the other on the right frame), and remove the FFC
holders.

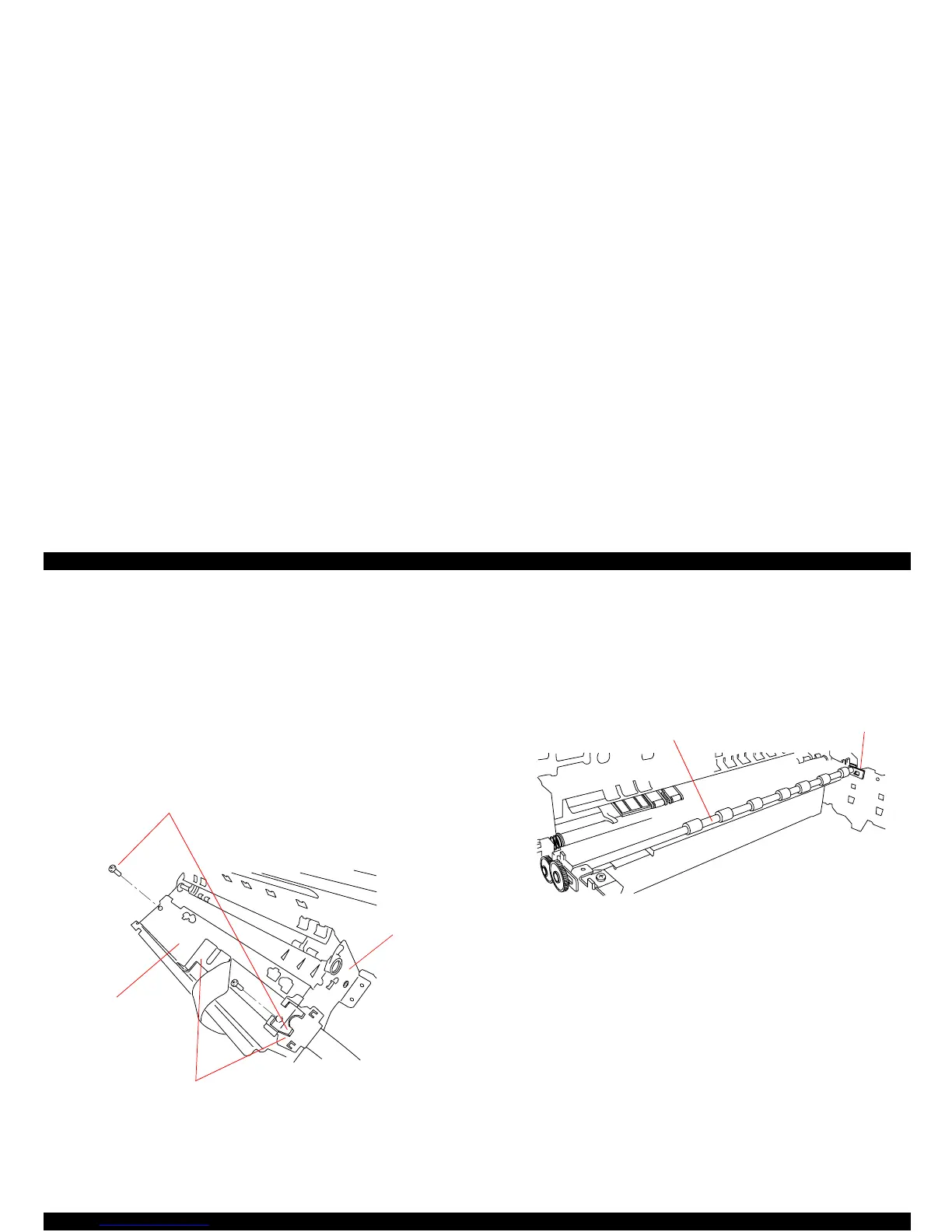

Figure 4-45. Paper Eject Frame Removal
5. Remove two screws securing the paper eject frame, and remove the
paper eject frame.
4.2.7.13 Paper Eject Roller Removal
1. Remove the paper eject frame. (See Section 4.2.7.12.)
2. Turning the bushings fixing the paper roller by the both ends
upwards, and remove the paper eject roller.
Figure 4-46. Paper Eject Roller Removal
Screws securing the Paper Eject Frame
Paper Eject Frame
Right Frame
FFC Holders
Paper Eject Roller
Bushing
