Epson Stylus Color 980 Service Manual

EPSON Stylus Color 980 Revision A
Maintenance Lubrication and Adhesion 156

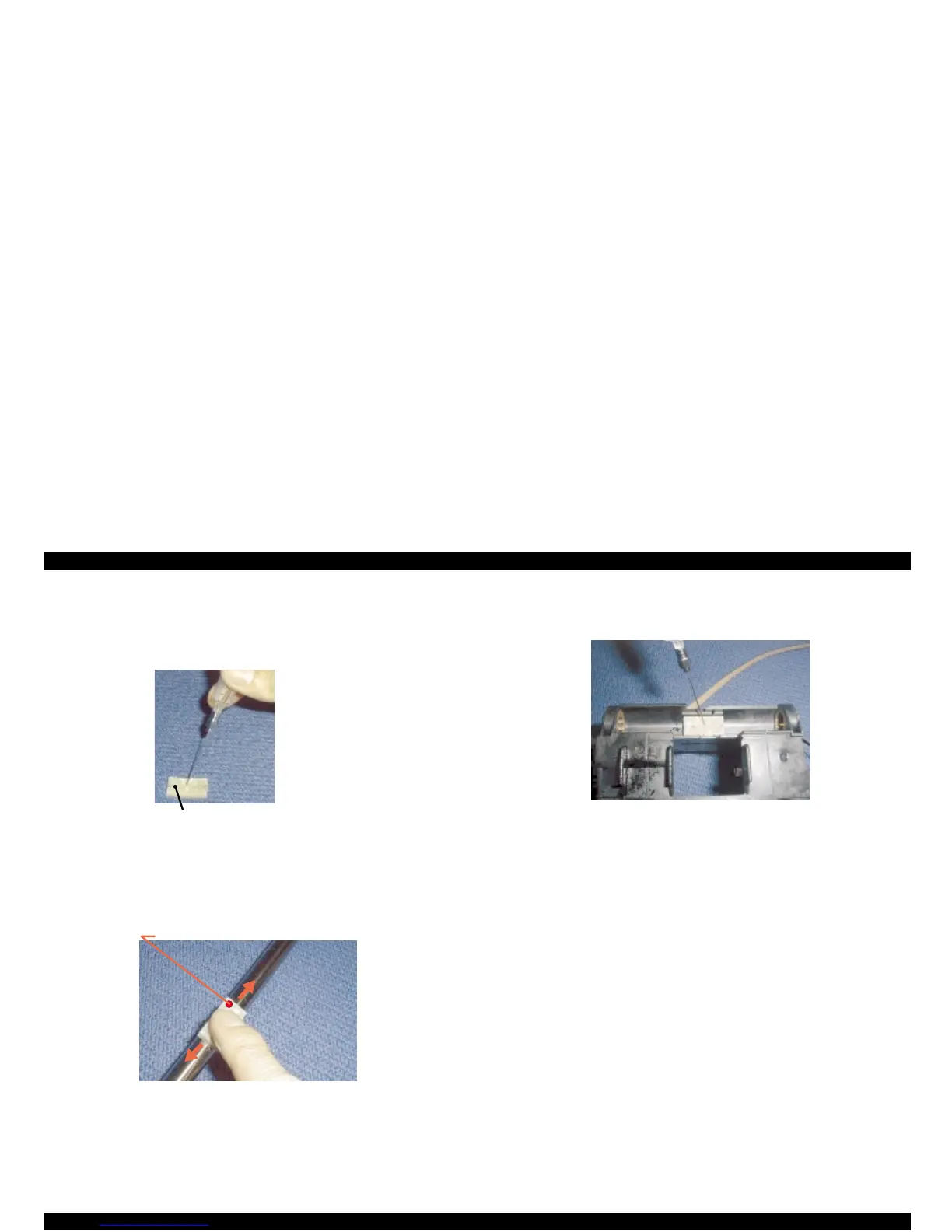

7. Get 2 new oil pads.
8. To one of the new oil pads, supply “O8” (0.5 cc) using the small
syringe.
Figure 6-5. Supplying Oil to the Oil Pad (1)
9. Using the oiled side of the pad (step 8), lubricate the carriage guide
shaft surface thoroughly.
Figure 6-6. Preliminary Lubrication with “O8”
10. Install the other new oil pad to the specified position at the back of
the carriage.
11. Using the same syringe used in Step 8, supply “O8” (0.7 to 0.75 cc)
to the installed oil pad.
Figure 6-7. Supplying Oil to the Oil Pad (2)
12. Install the carriage guide shaft to the carriage unit then to the printer
main body. (See Chapter 4 / Section 4.2.7.10.)
13. Install the printhead. (See Chapter 4 / Section 4.2.7.1.)
14. Perform Paper Gap Adjustment. (See Chapter 5 / Section 5.2.10.)
15. Turn the printer on without the ink cartridges installed to cause the
Ink Cartridge Out Error.
16. Using the Load/Eject button, run the Ink Cartridge Replacement
Sequence and install new ink cartridges.
17. Using the service program, perform Initial Ink Charge. (See Chapter
5 / Section 5.2.7.)
18. Perform Head Angular Adjustment. (See Chapter 5 / Section 5.2.4.)
19. Perform Bi-Directional Adjustment. (See Chapter 5 / Section 5.2.5.)
Su
pp
l
y
"O 8 "
(
0.5 cc
)
to th e o il
p
ad.
O il P ad already oiled w ith "O 8" (0.5 cc)
0.7 - 0.75 cc
