Troubleshooting Overview 82

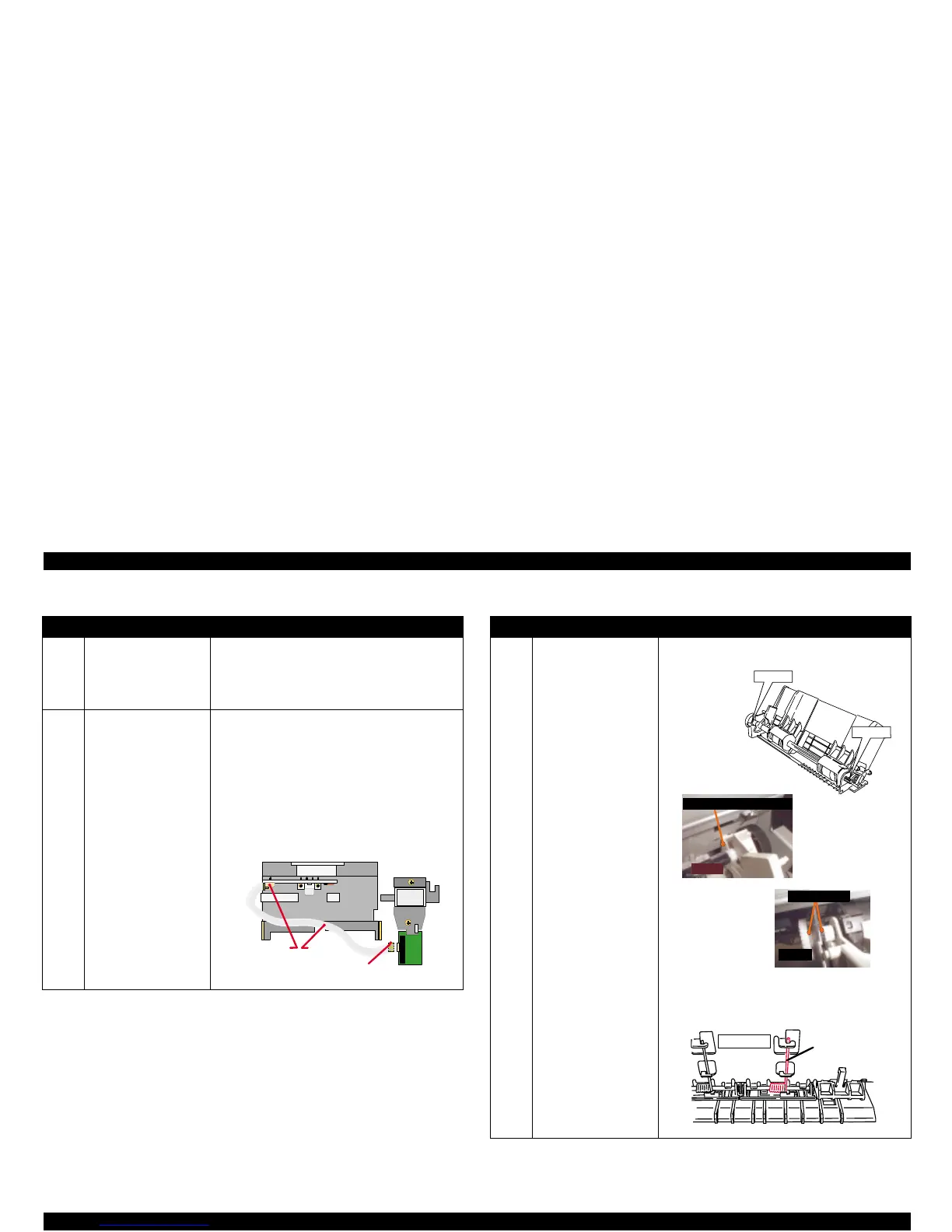

Table 3-7. Remedies for Paper Jam Error (continued) Table 3-8. Remedies for Paper Jam Error (continued)
Step Check Points Actions
5
• Is the PE sensor
actuator acting
improperly?
• Is the sensor base
floating?
Referring to Step 3 in Section 3.1.1.1 “Remedies
for Paper Out Error”, check the sensor condition.
6
• Is the PE sensor
defective?
• Is the encoder
defective?
Referring to Step 4 in Section 3.1.1.1 “Remedies
for Paper Out Error”, check the sensor condition.
Then, verify the encoder sensor condition by
checking the following points for proper connection
and electrical continuity, since checking the signal
directly from the encoder is impossible.
1. Connection of the connector 1
2. Connection of the connector 2
3. Electrical continuity of the cable.
C arriage view ed from the back
H ead surface
C onnector 1
C heck for
continuity.
C onnector 2
Step Check Points Actions
7 Is the ASF installed
improperly?
Is any of the paper load
sub rollers fixed
improperly?
• Check the ASF installation at the following 2
points: View A and View B in the figure below.
• Viewing the printer from the back, check that all
of the six torsion springs securing the paper
load sub rollers are properly installed.
View B
View A
Protrusion is set in here.
View B
D isconnected
View A
Top Fram e
Tension Spring
