Stylus Pro 4880 Field Repair Guide 1/17/08
Head Rank ID Printer Component, Software Item, LCD Display, Printer Button Page 149.
Head Rank ID
Note: Enter the Head Rank ID before installing the Print Head. This way it is possible to enter the data
directly off the Print Head. Otherwise, it is necessary to write down the data before installing the
Print Head.

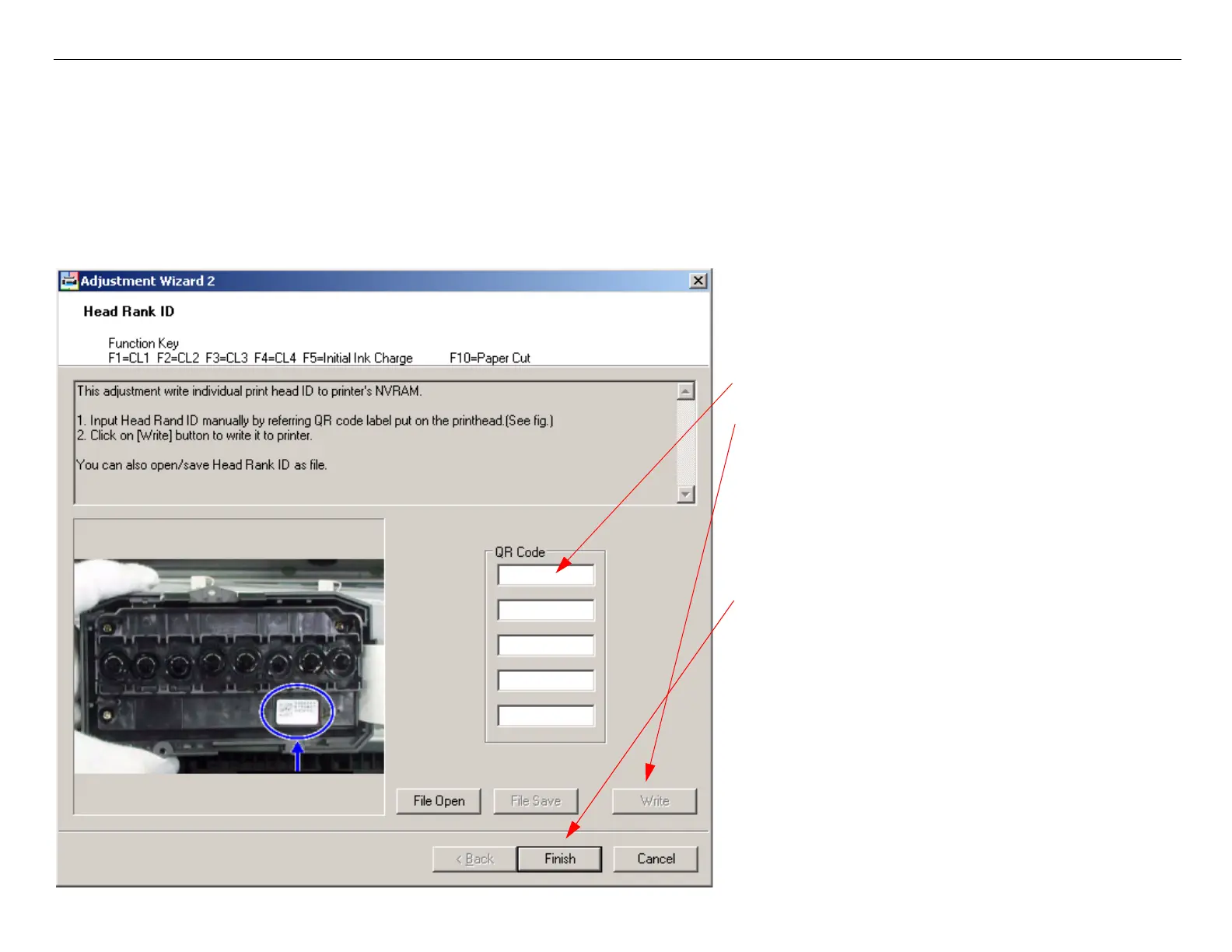

1. From the Adjustment Wizard for the Pro 4880, select the Head Rank ID.
1. Enter the Head Rank data located on
the Print Head.
2. Click on the Write button.
3. Click on the Finish Button.
Note: If the utility displays:
“Incorrect Head Rank ID [QR Code]
Input”, one or more of the digits entered
is incorrect. Check that an O was not
entered as a zero, etc.
