Stylus Pro 4880 Field Repair Guide 1/17/08

NVRAM.EXE Printer Component, Software Item, LCD Display, Printer Button Page 234.

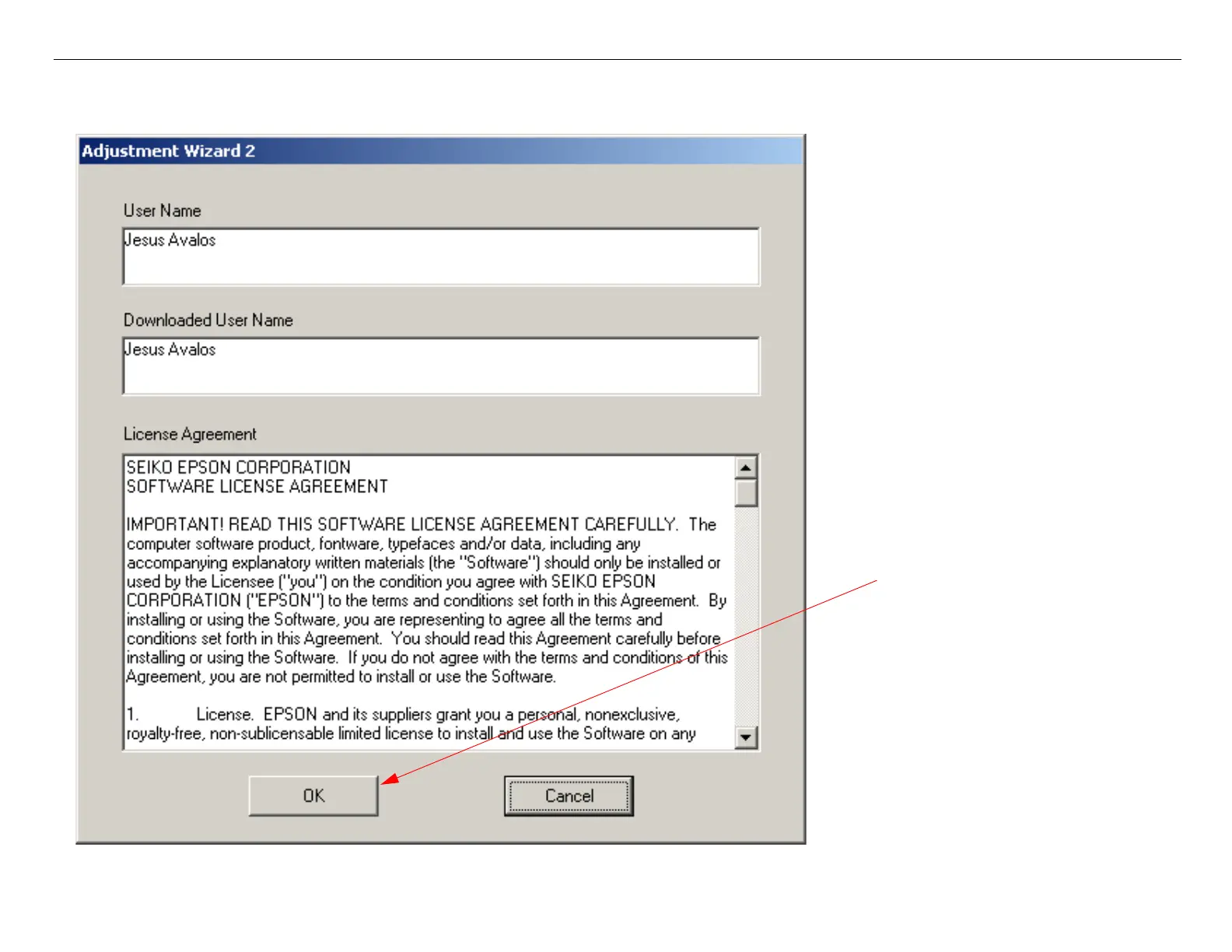

5. Click on OK to accept the license agreement.j

Click on OK to accept the

license agreement.
