Stylus Pro 4880 Field Repair Guide 1/17/08

Cover (Left) Removal Printer Component, Software Item, LCD Display, Printer Button Page 39.

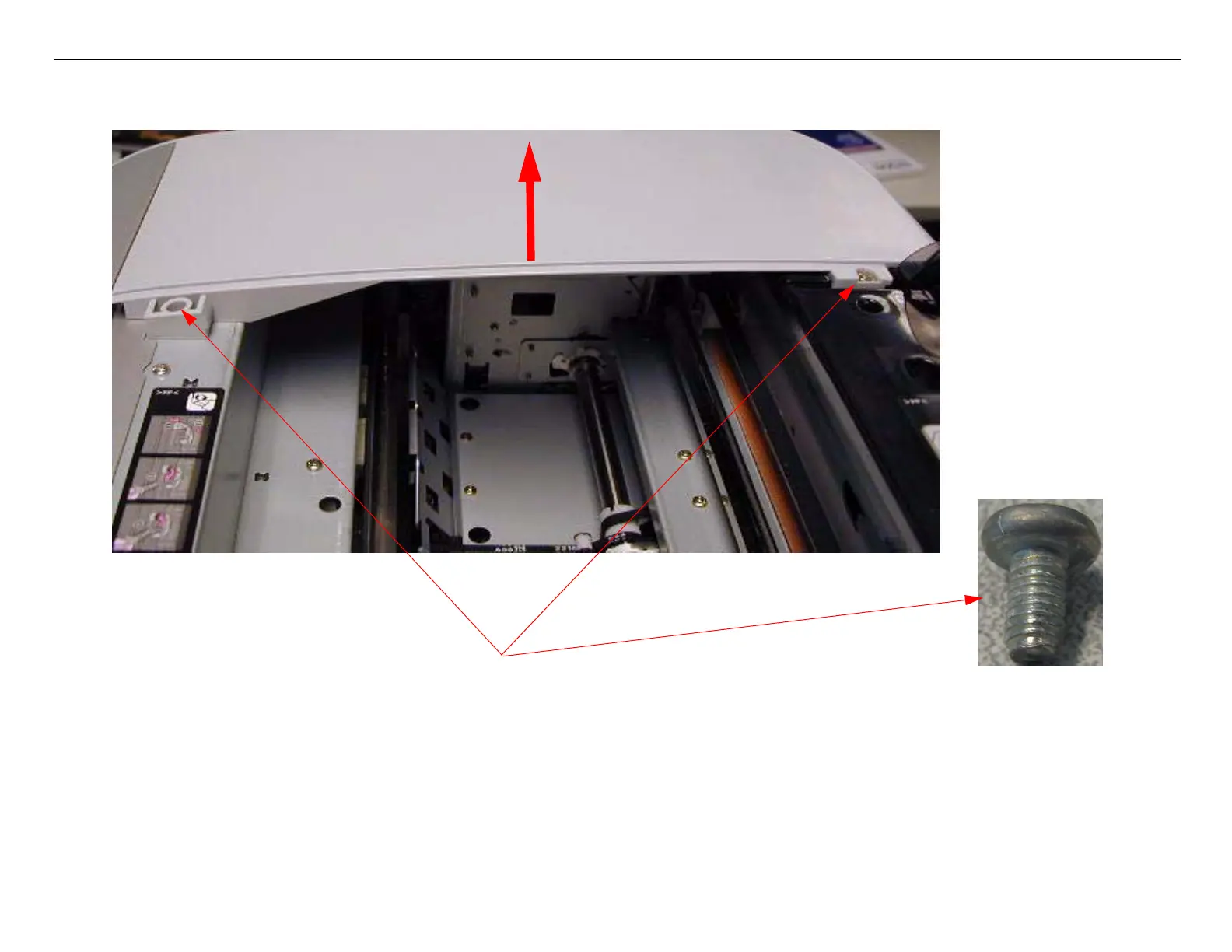

2. Remove the Cover (Left)

1. Remove 2 Screws.

2. Slide off the Cover (Left).
