Stylus Pro 4880 Field Repair Guide 1/17/08
Damper Removal Printer Component, Software Item, LCD Display, Printer Button Page 48.

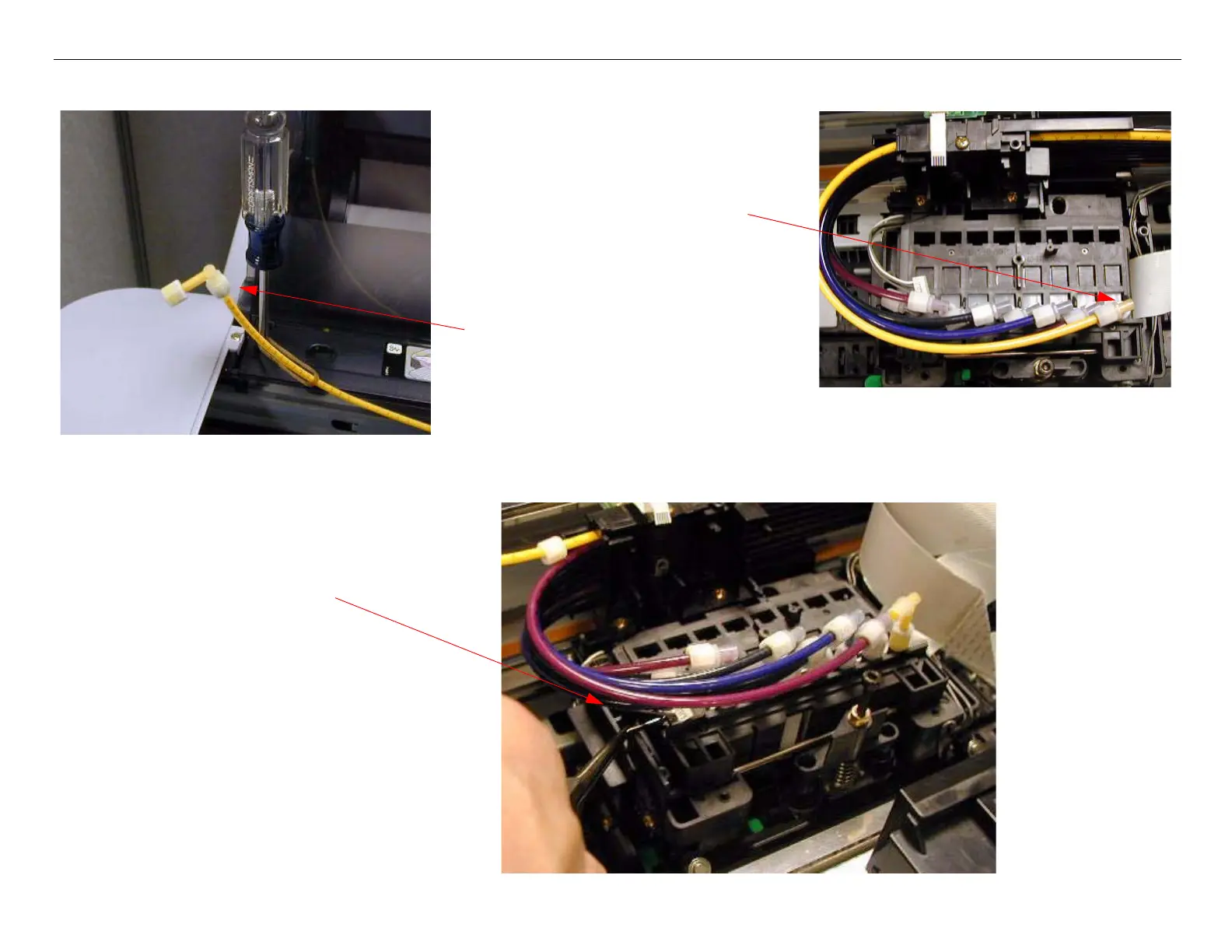

6. Disconnect the Ink Lines, from the Dampers to be replaced.
7. Remove the Stay Bar that fastens the Dampers to the Assembly.
Disconnect the Lines at the
Damper (bottom of the Elbow
Joint).
Move the Lines to the side, and
fasten out of the way.
Remove the Stay Bar.
