Stylus Pro 4880 Field Repair Guide 1/17/08
Paper Exit Roller Removal Printer Component, Software Item, LCD Display, Printer Button Page 81.

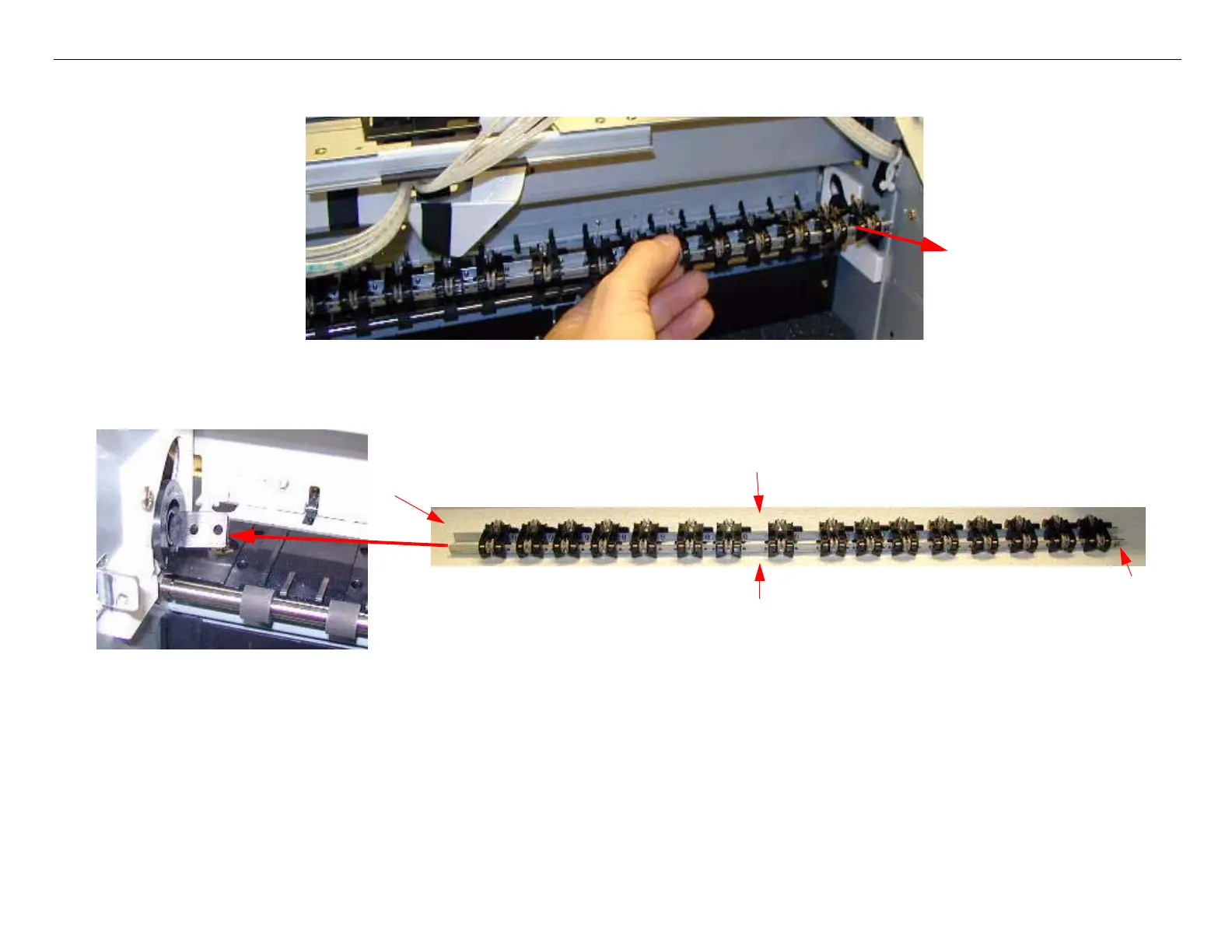

6. Remove the Exit Roller.
7. The Exit Roller must be re-installed using the correct polarity.j
Gold Spring side, on the top
Silver Spring side, on the bottom
Long end
Short end
