Stylus Pro 4880 Field Repair Guide 1/17/08
Pump and Cap Removal Printer Component, Software Item, LCD Display, Printer Button Page 98.

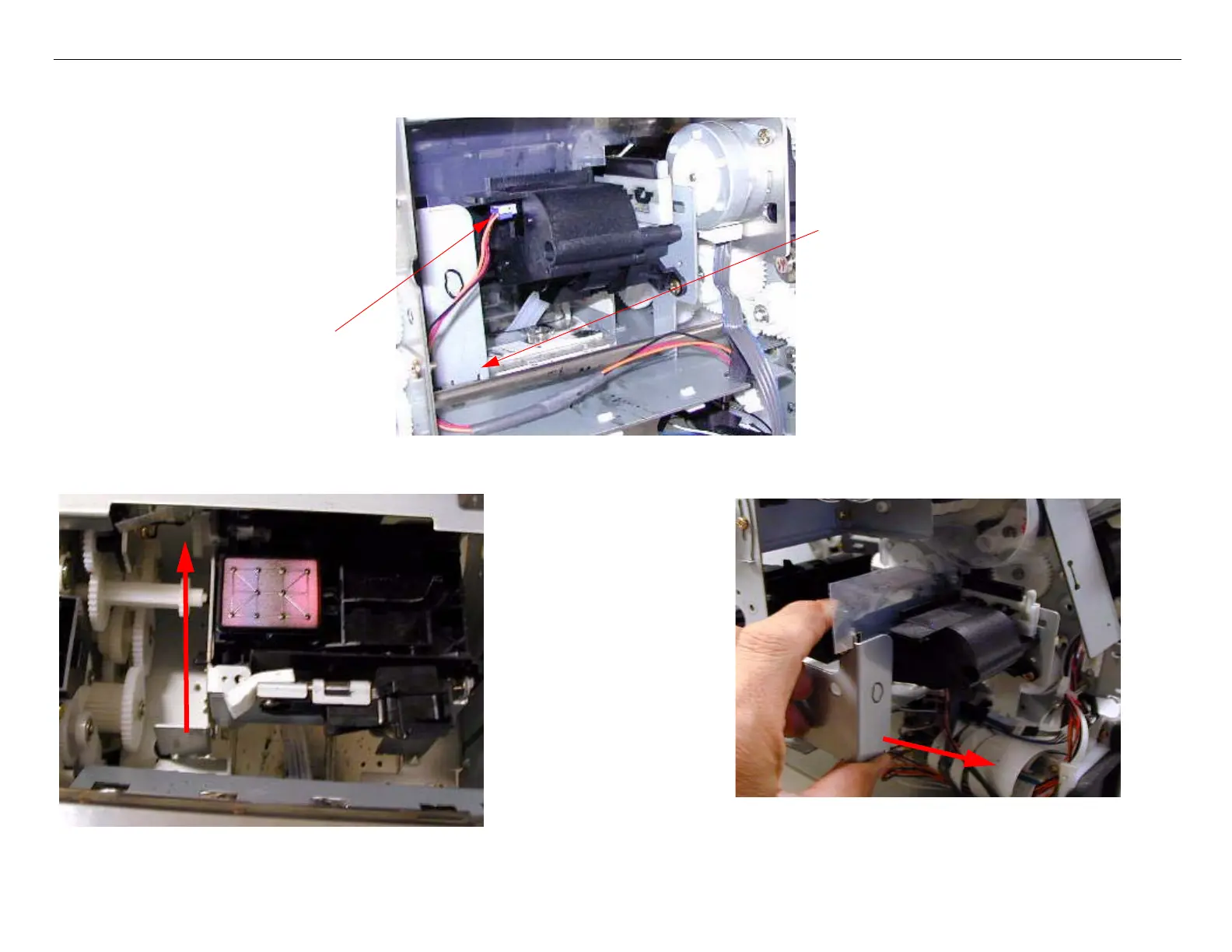

9. Unplug the Pump Home Position Sensor.
10. Slide the Cap and Pump Assembly out the back of the Printer.
Unplug
Re-assembly note:
The Plastic Tray that the Pump /
Cap Assembly covers, sits on top
of the Pump / Cap Assembly
Frame at this corner.
Slide the Assembly to the back
Remove from the back of the Printer
To Next Page
