Epson Stylus Scan 2000 Service Manual

EPSON Stylus Scan 2000
Revision A
Disassembly & Assembly
Disassembly Procedures
105

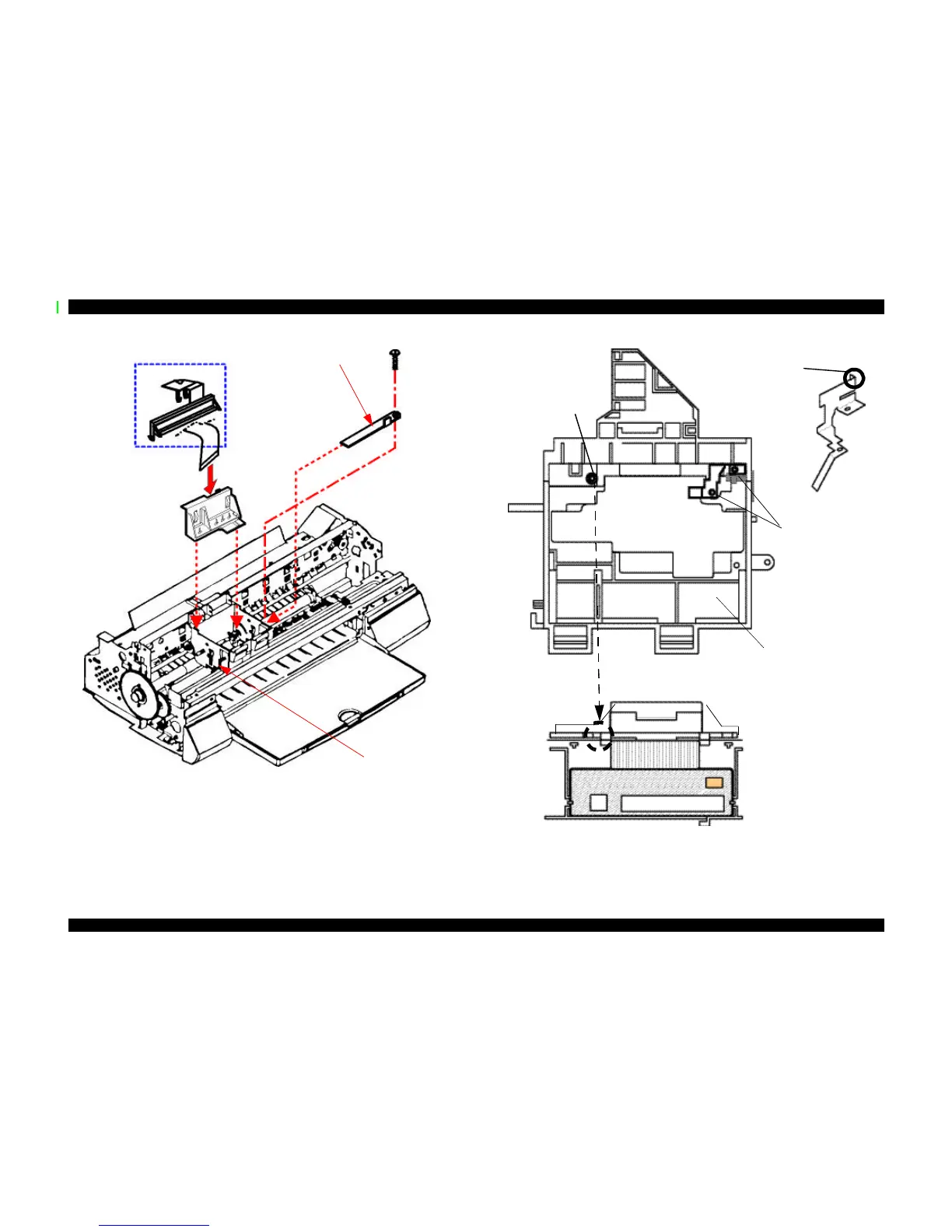

Figure 4-6. Removing the Printhead
Figure 4-7. Installing the Printhead
Fastener
Step 6.
Remove the
FFC and
FFC guide.
Step 9. Remove the
printhead.
Note: There are no actuators
on the printhead.
Step 8.
Remove
one CBP
3x6 screw
and the
fastener.
Step 7. Remove
the tension
spring located
here.
This part of the
grounding plate
should be touching
the CR shaft
receiver.
Make sure that
this pin is in the
cut-out section of
the printhead.
Carriage Assembly
Nozzle Selector has been enclosed into head.
Make sure that
the carriage
knobs come
through these
holes.
