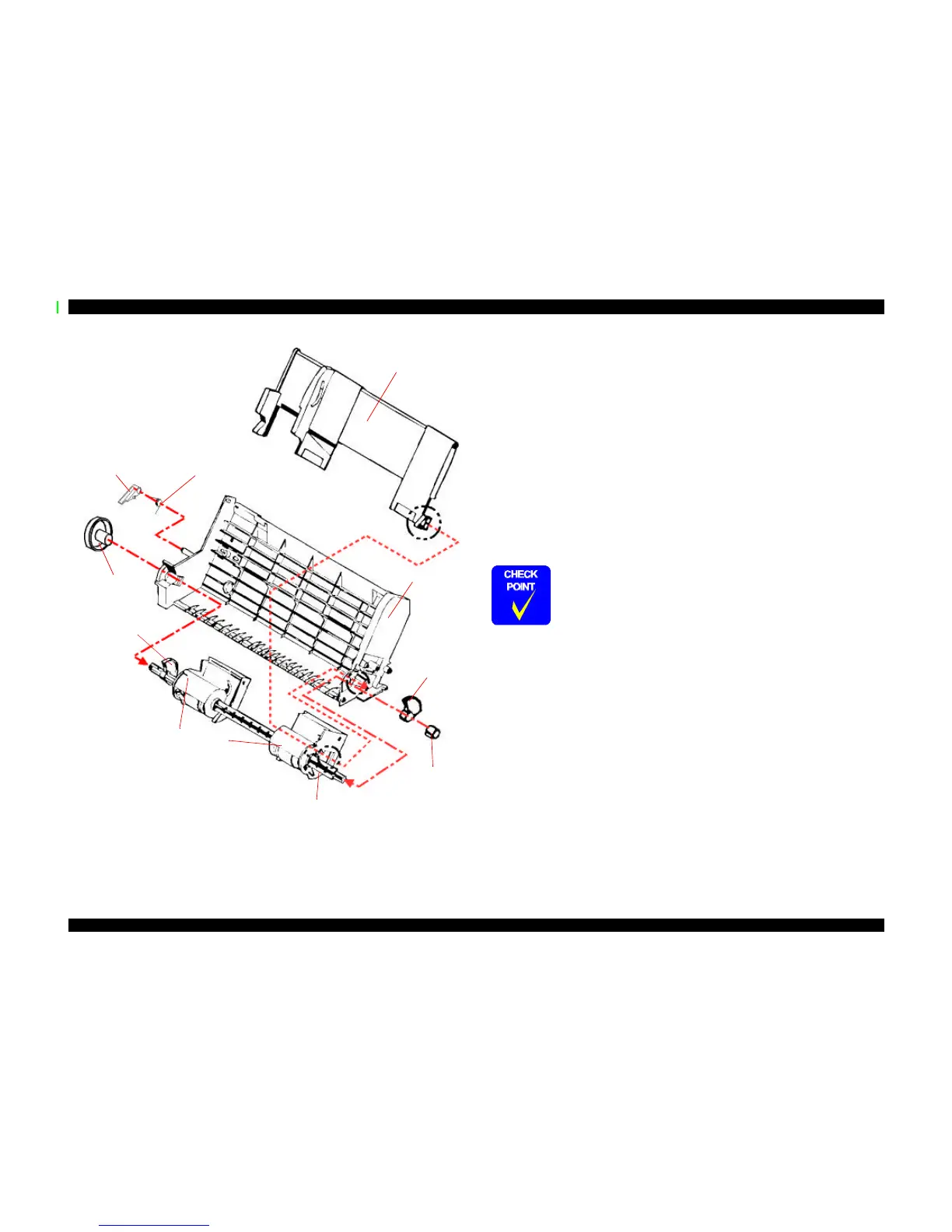

Figure 4-12. Disassembly of ASF Assembly
4.2.5.5.1 Removing the Right and Left LD Roller Assemblies
1. Disassemble the ASF assembly and remove the paper feed roller assembly and hopper
assembly from the ASF assembly. (Refer to Section 4.2.5.4.)
2. Take out the right and left compression springs 1.66 from the back of the hopper
assembly.
3. Pull out the cam part of the hopper assembly from the hole located on the frame of the
right LD roller assembly,
4. Pull out the LD roller shaft. The paper feed roller assembly and hopper assembly
should be disconnected by now.
5. Release the hook of LD roller assembly at the shaft hole of the paper feed roller
assembly. Also, release the fixed hook of the cover roller LD and remove the LD roller
assembly.
Hopper Assembly
Torsion Spring
41.2
Brake Lever
Left Shaft
Fixing Bushing
(EPSON standard
color side)
Paper Feed Roller
Assemblies
(Black
side)
LD Roller Shaft
Right Shaft Fixing
Bushing
Release
Hopper
Lever
ASF Frame
Cam Fixing
Bushing
n When installing the LD roller assembly, make sure that the
hooks are hung on the paper feed assembly.
n During assembly, when setting the compression spring 1.66 to
the spring installation position in the paper feed assembly, hang
both ends of the spring on the hooks temporarily. Also, do not
forget to release the hooks of these springs from the holes
located on the back of paper feed assembly by rotating the
spring. (Refer to the figure below.)
