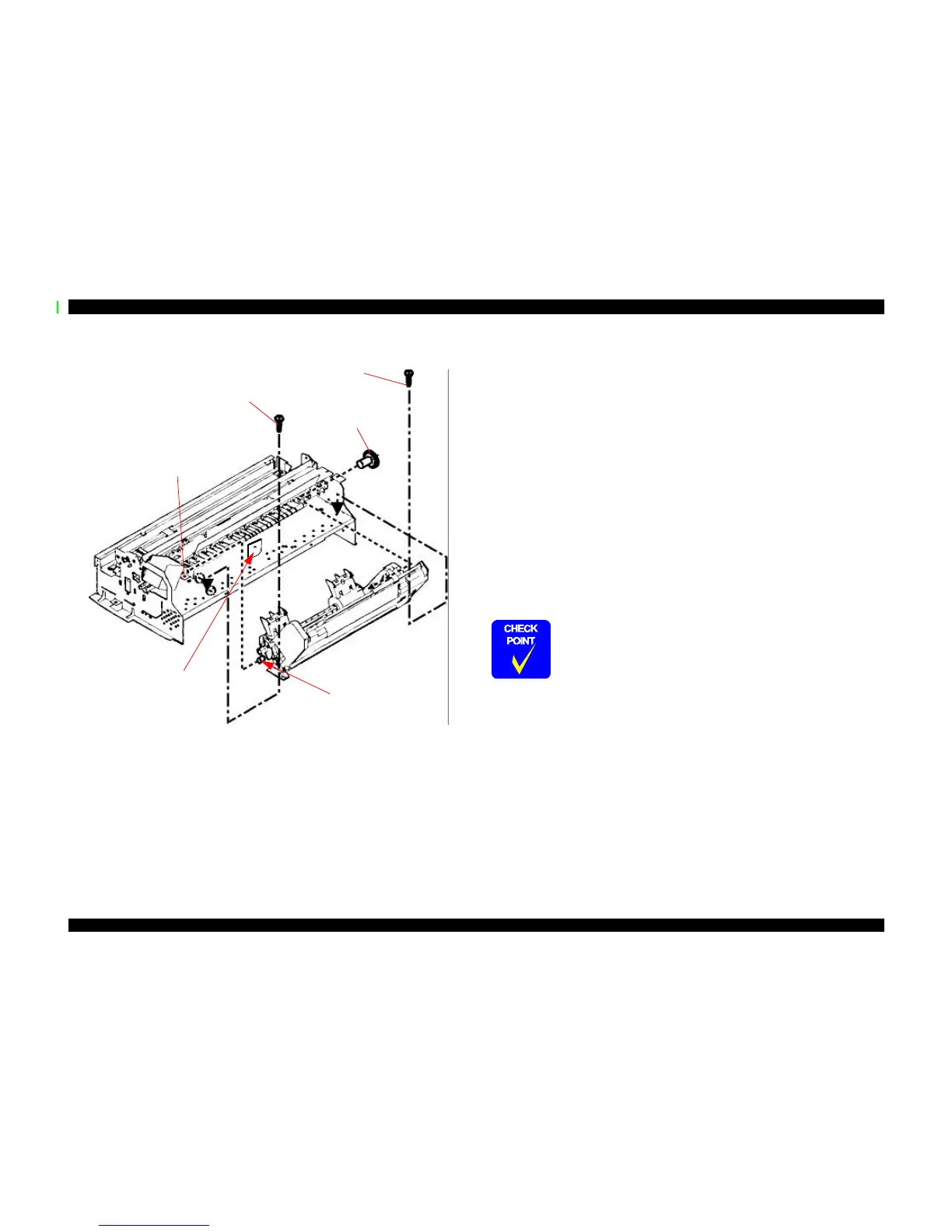

Figure 4-11. Removing the ASF Assembly
4.2.5.5 Disassembling the ASF Roller Assembly
1. Remove the ASF assembly. (Refer to Section 4.2.5.4.)
2. Remove the brake lever, releasing one leg of the torsion spring 41.2 from the hook of
the ASF frame.
3. Remove the shaft-fixing bushing from the right side of the LD roller shaft and the
release hopper lever.
4. Move the left paper feed assembly to the center and remove the cam fixing bushing
(white plastic) attached to the left side of LD roller shaft.
5. Push the LD roller shaft to the left and remove the left shaft fixing bushing after
releasing its hook.
6. Holding the hopper assembly by hand, remove the cam part of hopper assembly from
the right holes of ASF frame.
7. Holding the hopper assembly by hand, remove the cam part of hopper assembly from
the right holes of ASF frame.
See the next section for details on disassembling the paper-feed roller assemblies.
CR Shaft Installation
Screw
CBS Sems screw with
a washer
Make sure that the protrusion in
the ASF Assembly are in these
holes on the frame when
installing the ASF assembly.
Gear 34
Move the paper
depressor up and
out of the way.
ASF
protusion
n During disassembly and assembly of the hopper assembly, do
not let grease from the cam parts touch any other parts. Wipe
off any grease transferred to other parts.
n Be careful of the direction of the hopper lever release when
installing it.
n Make sure that the right and left shaft-fixing bushings are fully
installed and do not slip off.
n During assembly, attach the cam fixing bushing after installing
the LD roller shaft to the ASF frame.
n When installing the right and left paper feed roller assemblies to
the LD roller shaft, the black paper feed roller assembly goes on
the right side and the standard EPSON color one goes on the left
side.
