EPSON Stylus Scan 2000
Revision A
Disassembly & Assembly
Disassembly Procedures
116
4.2.5.9 Removing the HP Detector
1. Remove the housing. (Refer to Section 4.2.1.)
2. Remove the cable from the HP detector and take it out after releasing the fixed hook.

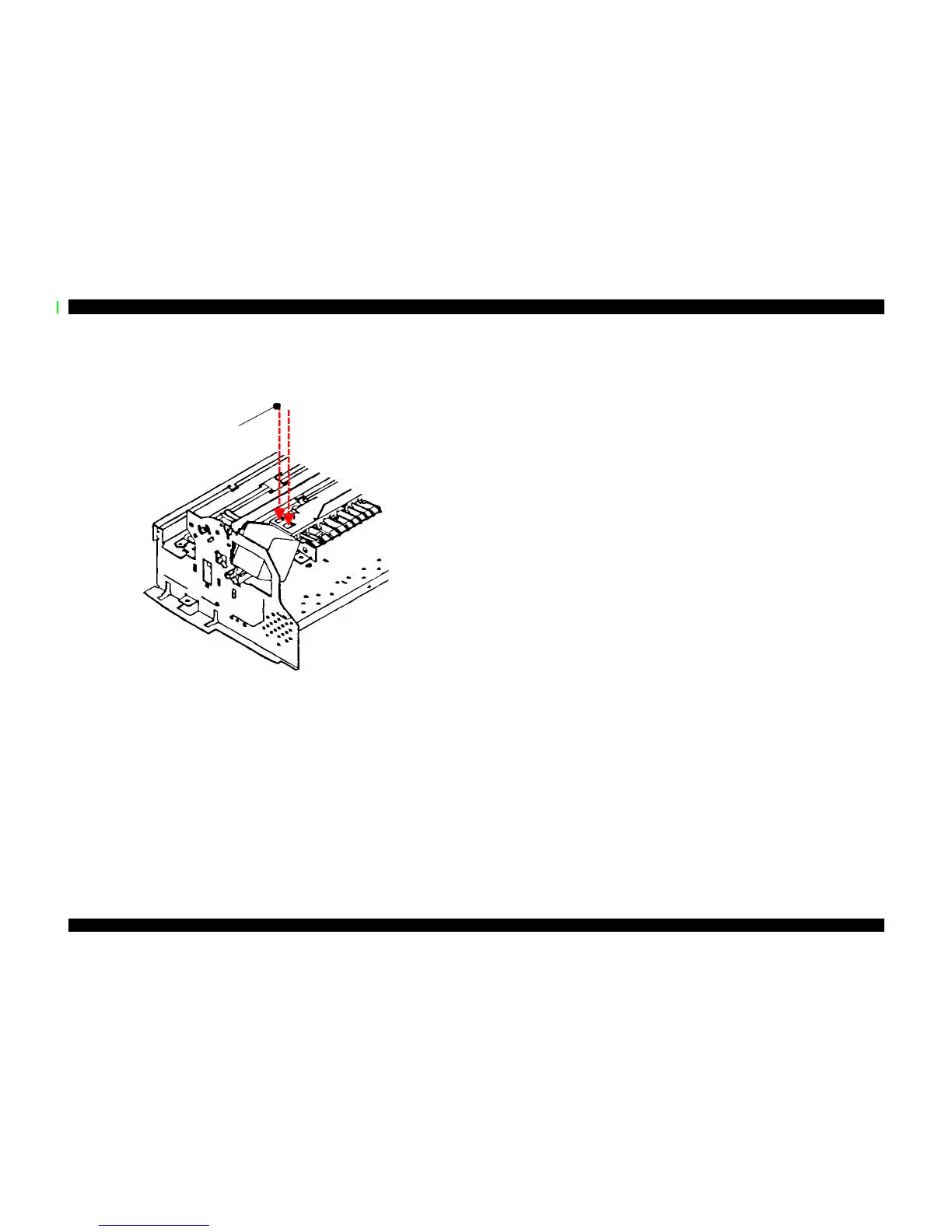

Figure 4-20. Removing the HP Detector
HP Detector
