Epson Stylus Scan 2000 Service Manual

EPSON Stylus Scan 2000
Revision A
Maintenance
Lubrication
141

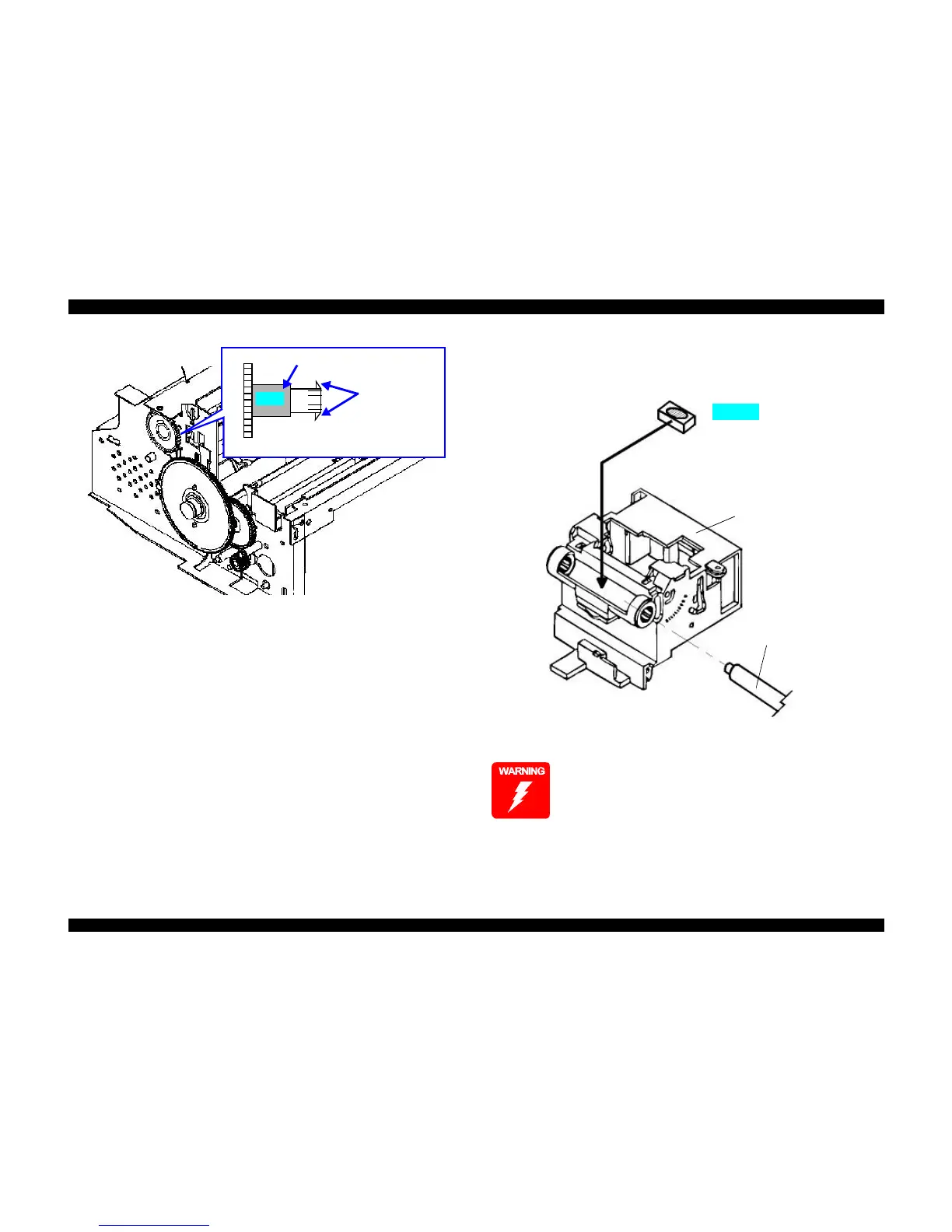

Figure 6-13. #11 Gear 34 (ASF Roller Gear)
Figure 6-14. #12 Carriage Assembly Oil Pad
Lubricate this area
G-26
Spur Gear, 27.2
Do not lubricate
these hooks.
n Never apply oil to the CR guide shaft directly. This may cause
fatal damage to the components of the printer.
n Avoid applying oil excessively to the oil pad. This may cause fatal
damage to the components of the printer.
*Never apply the oil exceeding 0.6cc.
Oil pad
Carriage Assembly
(bottom view)
"SHAFT.CR.GUIDE"
Lubricated side
faces out.
