Epson TM-U675 Service Manual

Appendix D-2 Product Overview Rev.D
Confidential
Outline of Printer Mechanism
Printing Mechanism
This mechanism consists of the print head unit, which has nine wires vertically arranged in one
row, the head carriage assembly, platen, carriage motor, carriage drive pulley, carriage guide
shaft, carriage transmission pulley, and carriage transmission belt. (See Figure D-4.)

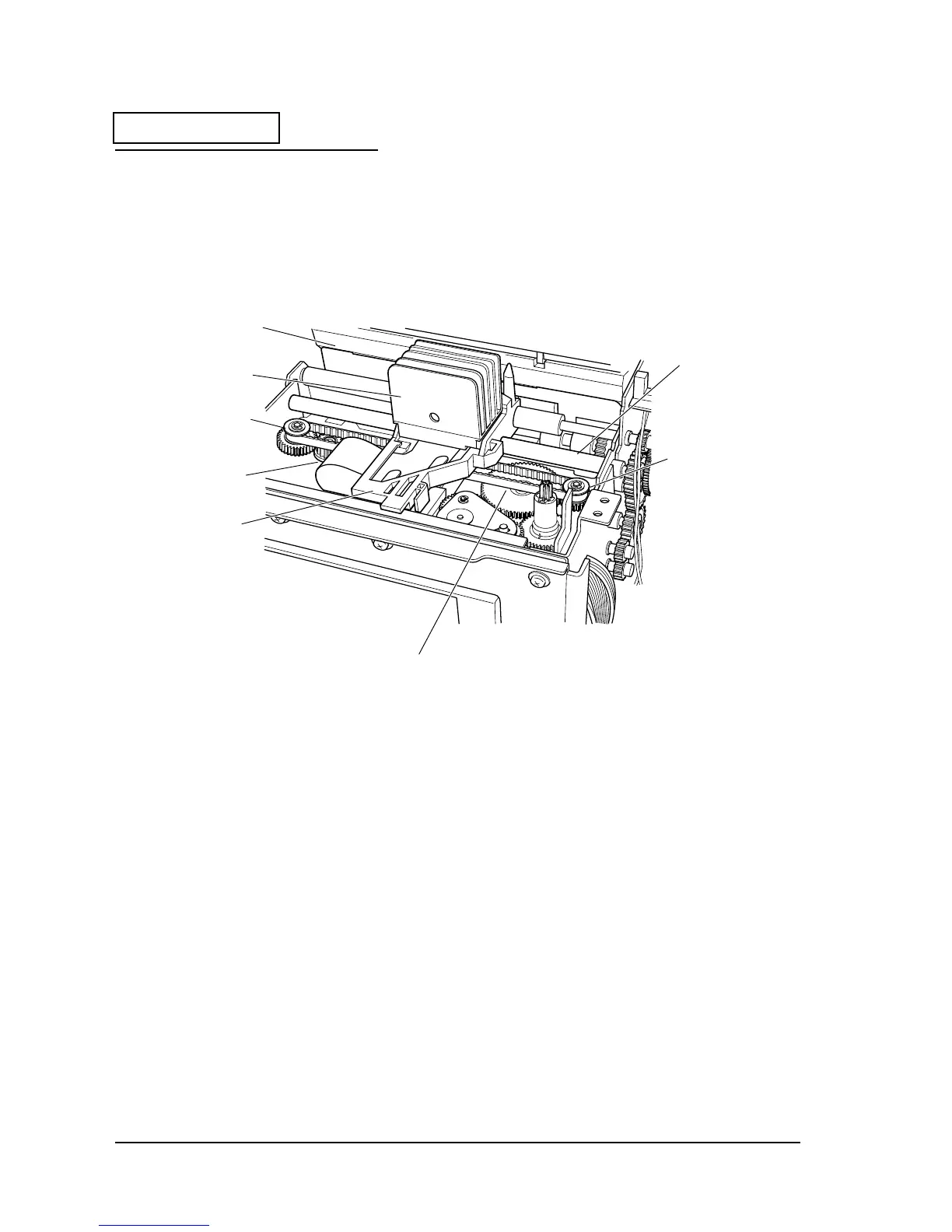

Figure D-4
Platen
Print head unit
Carriage drive pulley
Carriage motor gear
Head carriage assembly
Carriage transmission belt
Carriage transmission
pulley
Carriage guide shaft

Epson TM-U675 Specifications

General

Color	No
Maximum number of copies	2 copies
Maximum printing width (columns)	60
Mean time between failures (MTBF)	180000 h
Safety	UL, CSA
Certification	VCCI A, FCC A, CE
Standard interfaces	Parallel, RS-485, Serial, USB 2.0
Fonts included	5 × 9 / 7 × 9
Print technology	Dot matrix
Weight (imperial)	10.6 lbs
Dimensions (WxDxH)	186 x 298 x 195 mm
Power requirements	24 V DC ± 10%
Connectivity technology	Wired
Printing media thickness	0.06/0.085 µm
Dimensions (W x D x H) (imperial)	7.3 x 11.7 x 7.7 \
