Using the Control Panel
Most of the functions of this printer are governed by software, but you can monitor the printer’s
status by looking at the lights on the control panel, and for some procedures you will use the
buttons.
Control Panel

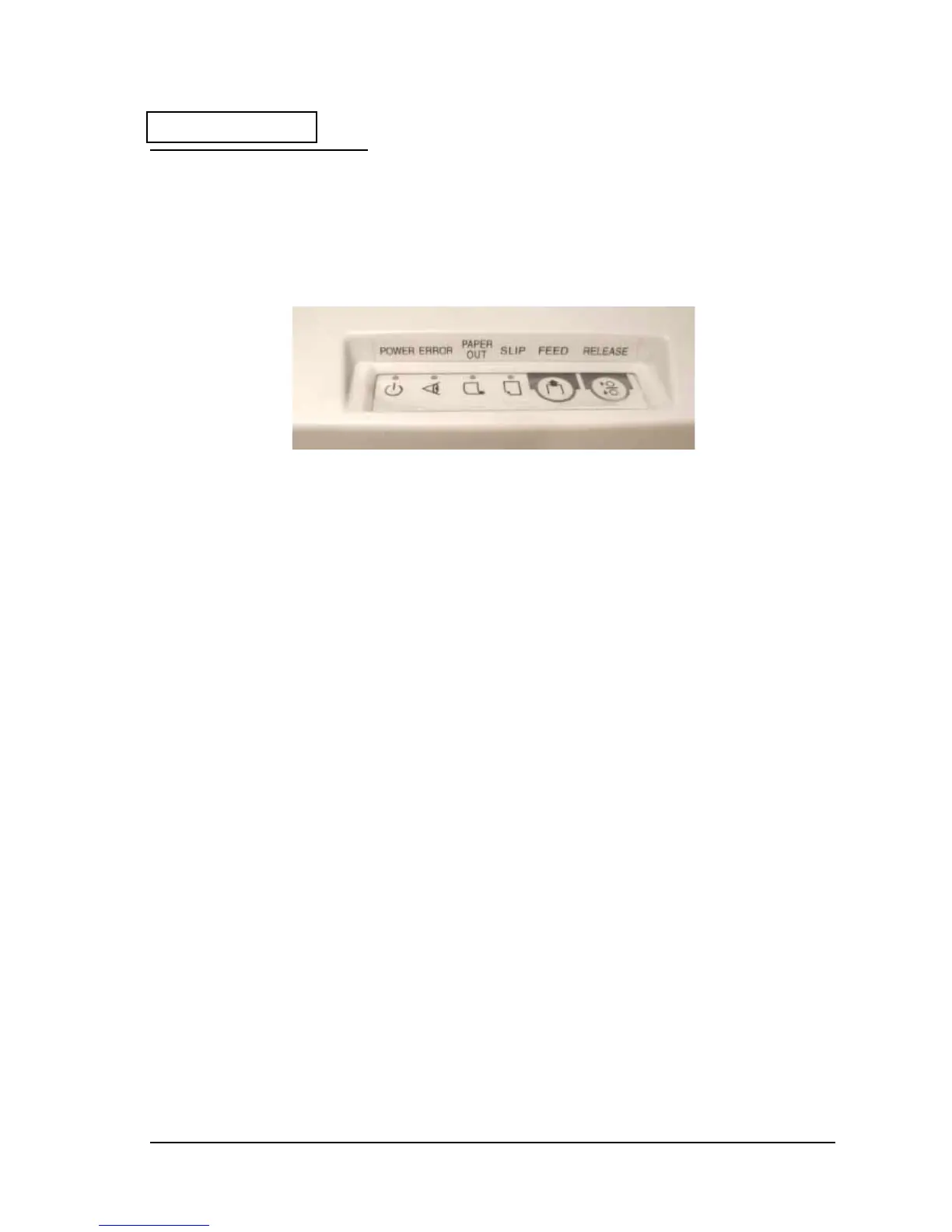

Figure I-20 Control panel
POWER
This light is on when the power is turned on.
ERROR
When this light is on but not blinking, it means that the printer is offline. Check to see if a cover
is open. When this light is blinking, there is an error. If you see this light blinking, turn off the
printer for a few seconds and then turn it back on. If the light is still blinking, see Chapter 1
Troubleshooting.
PAPER OUT
This light comes on when the printer is out or nearly out of roll paper. The printer has a paper
end detector, and it also has a near-end detector (which can be adjusted) to warn you that the
printer is nearly out of paper. See previous section if you want to adjust this detector.
This light blinks during the self-test printing standby state or macro execution standby state
(when the macro execution command is used).
SLIP
This light blinks when the printer is ready to receive slip paper. It stays on during printing on
slip paper and blinks again when slip paper should be removed.
Control Panel Buttons
The control panel has two paper buttons that you may have to use, although most paper
handling functions will be handled by your software.
FEED
Use this button to feed roll paper or to start a roll or validation paper self test. (See Figure I-20)
