VT6L Maintenance 11. Joint #3
VT series Maintenance Manual Rev.2 87
10)

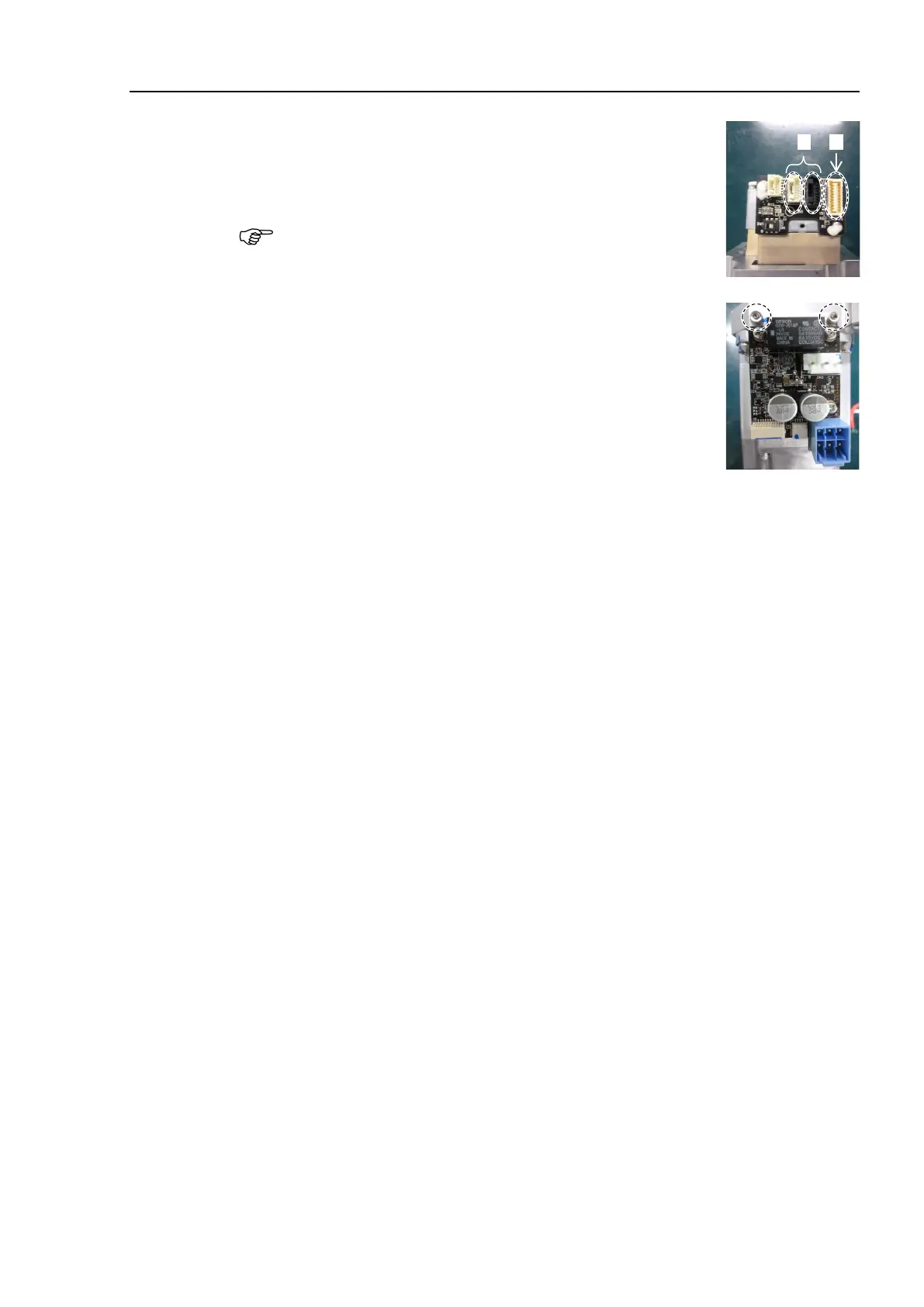

Disconnect the following connectors of
the motor.
A: Signal cable connectors (for motor × 2)
B: Signal cable connector (for AMP board)
The cables will be necessary again.
Be careful not to lose them.
11)
the AMP board fixing plate (with AMP board) from the
unit.
Hexagon socket head cap bolts: 2-M3×6
To Next Page
