Planning the Site and Installation
3-10 SmartEdge 1200 Router Hardware Guide

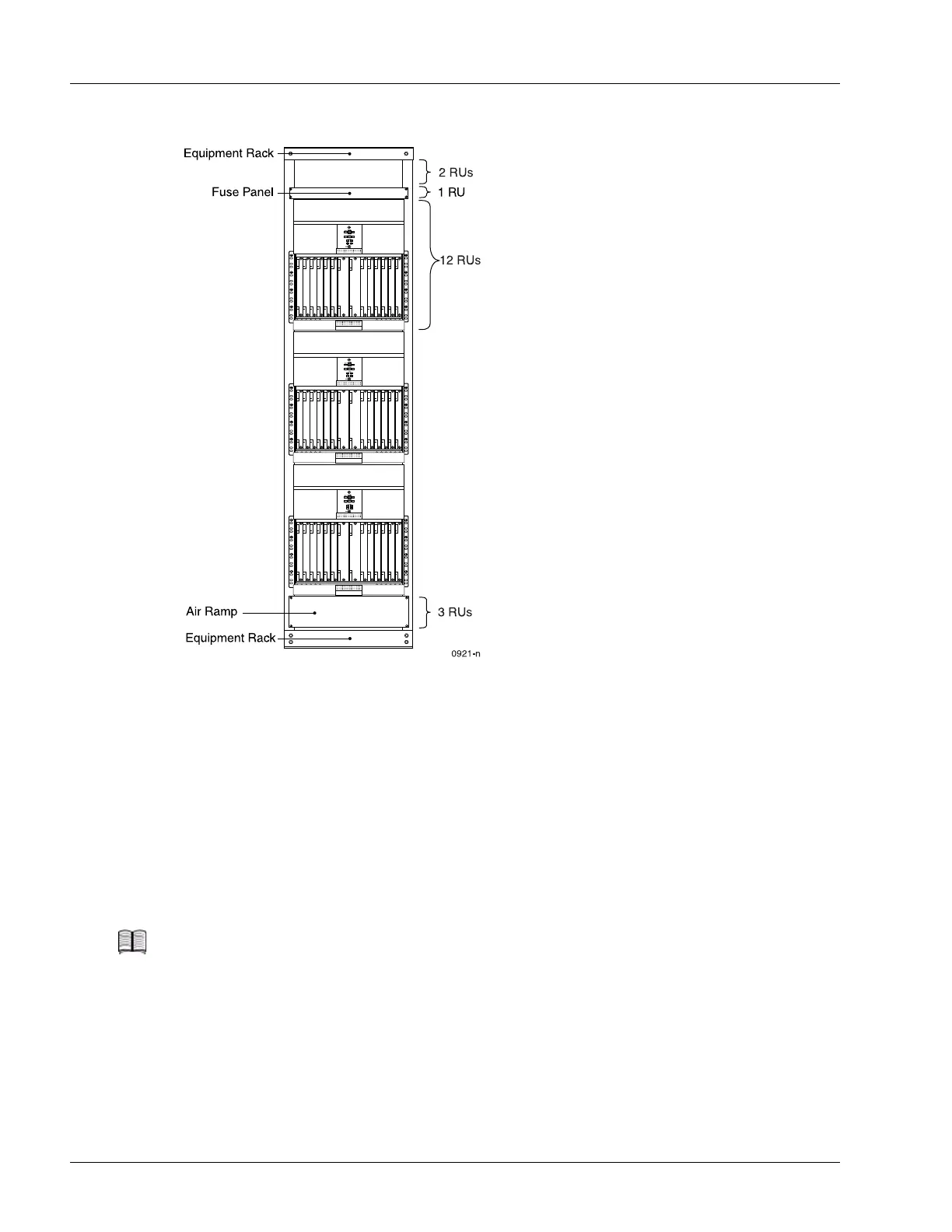

Figure 3-4 NEBS-Compliant SmartEdge 1200n Chassis in a 42-RU Rack
Regardless of rack width and height, mounting positions for the SmartEdge 1200 chassis include:
• Recessed mount—The fan tray and cable tray extend approximately 4.6 inches (11.7 cm) beyond the
front of the rack.
• Flush mount—The fan tray and cable tray extend approximately 7.9 inches (20.1 cm) beyond the front
of the rack.
• Extended mount—The fan tray and cable tray extend approximately 10.1 inches (25.7 cm) beyond the
front of the rack.
• Centered mount—The fan tray and cable tray extend approximately 11.1 inches (28.2 cm) beyond the
front of the rack.
Note Because the fan tray and cable tray extend beyond the front of the rack in any of the four
mounting positions, a rack with a front door might not suitable for the installation unless the
door is removed.
