With eSID3 the Saab OEM radio connector K14 can be modified so that Connect2 listens to eSID3 on
the normal I-bus instead of the Infotainment bus and the result is:
The radio will stay on until the key is removed from Ignition Switch Module.
The reverse pin from Connect2 will work on both MT and AT cars.
The steering wheel answer/hang up switches will work on some stereos (Pioneer? TBC)
The radio will only work when eSID3 is connected (Important Note!)
These are the steps needed to install (Or install a switch so it is easy to choose bus)

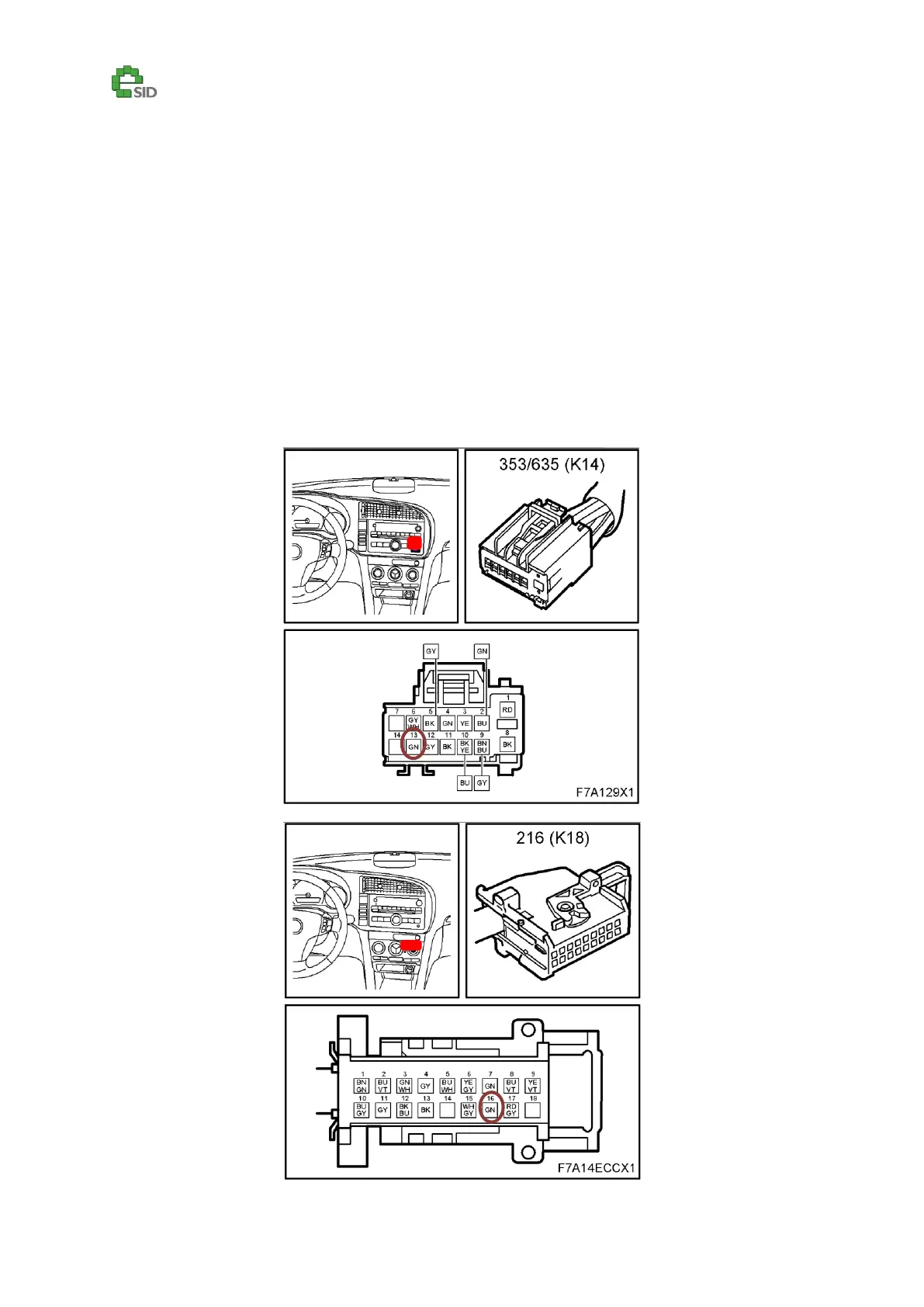

1. Remove Infotainment-bus cable Pin 13 in Radio connector K14 (Green):
2. Splice new wire from ACC K18, Pin 16 (I-bus) and connect it to Radio K14 Pin13.
