Wastegate
Description

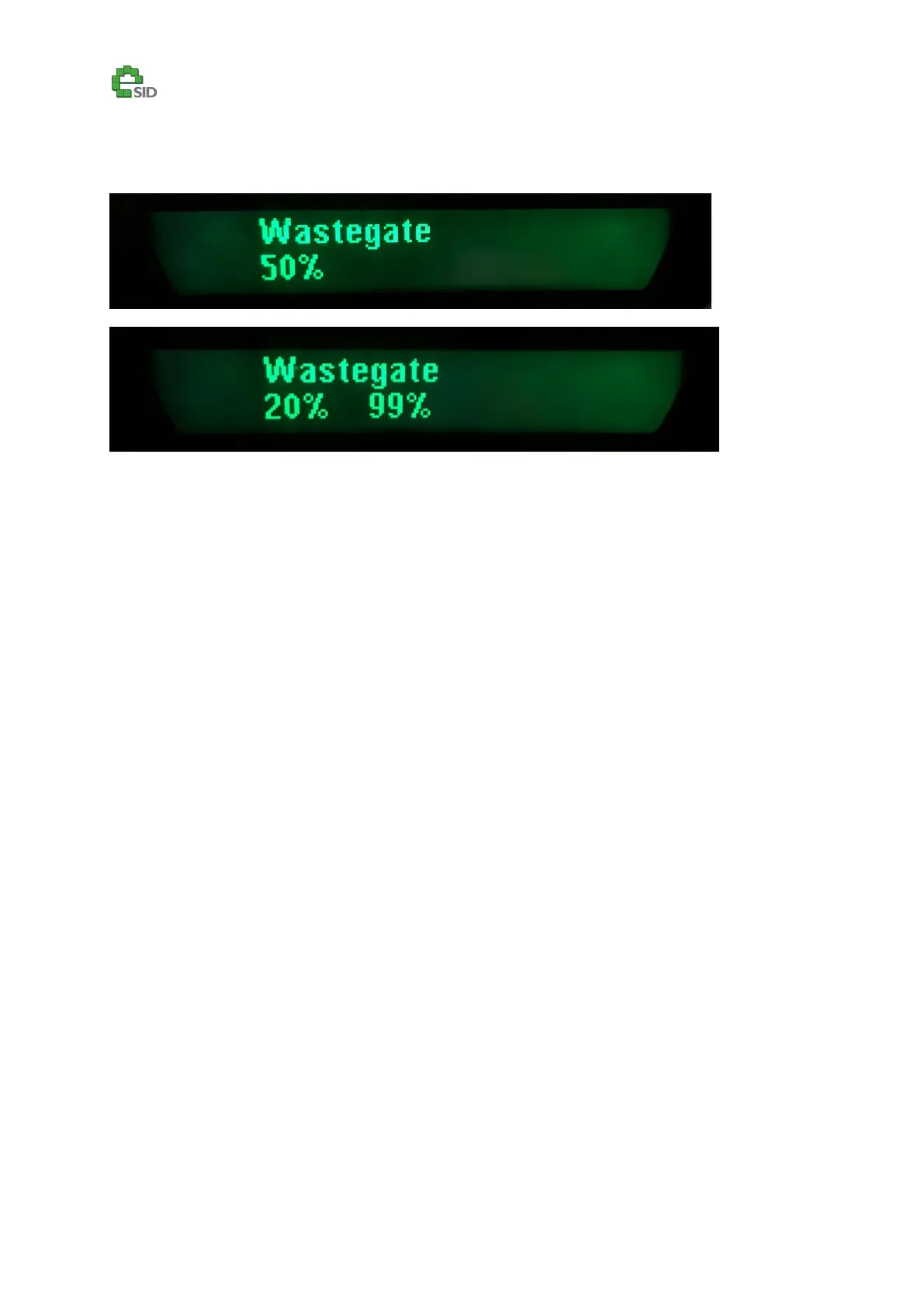

The wastegate valve acts as a pressure relief valve that controls the boost output of the turbo,
diverting excess exhaust gases away from the turbine wheel. eSID3 shows the control signal to the
wastegate actuator.
Note: The TTiD has two values due to the twin-turbo.
Enable Criteria
 B207 Engine
 B284 Engine
 Z19DTx Engine
Units
 Percentage % (PWM)
