EverFocus EFC304 - 1 Introduction

NAV IP Access controller

1
1. Introduction
TheNAVIPaccesscontrol lerisapowerfulLinux‐basedcontrollerwithmodulardesign.Youcan
addupto4doormodulestotheNAVcontrollerforexpandingthecont rolscaleofupto8
doors/readers.OryoucanaddonealarmmoduletotheNAVcontrollertomanageupto10
alarminputsand18alarmoutputs.

Moreover,each NAVcontrollercanconnectupto31EverFocus’Flexseriescontrollersto
expandthecontrolscaleofupto256doors/readers.Youcanconnectto theNAVcontroller
vianetworktoremotelyreview,monit oralltheeventsonNAVandFlexcontrollersand
configureall31Flexseriescontrollersfromth esamebuilt‐inbrowser‐basedmanag ement
software.Furthermore,youcanoptionallyinstallmultipleNAVcontrollersforalargerscale
accesscontrolsystem.By doingso,youwillneedtheen terpriselevelNavigationsoftware
installedasacentralservertomanagethelargeaccesscontrol system.



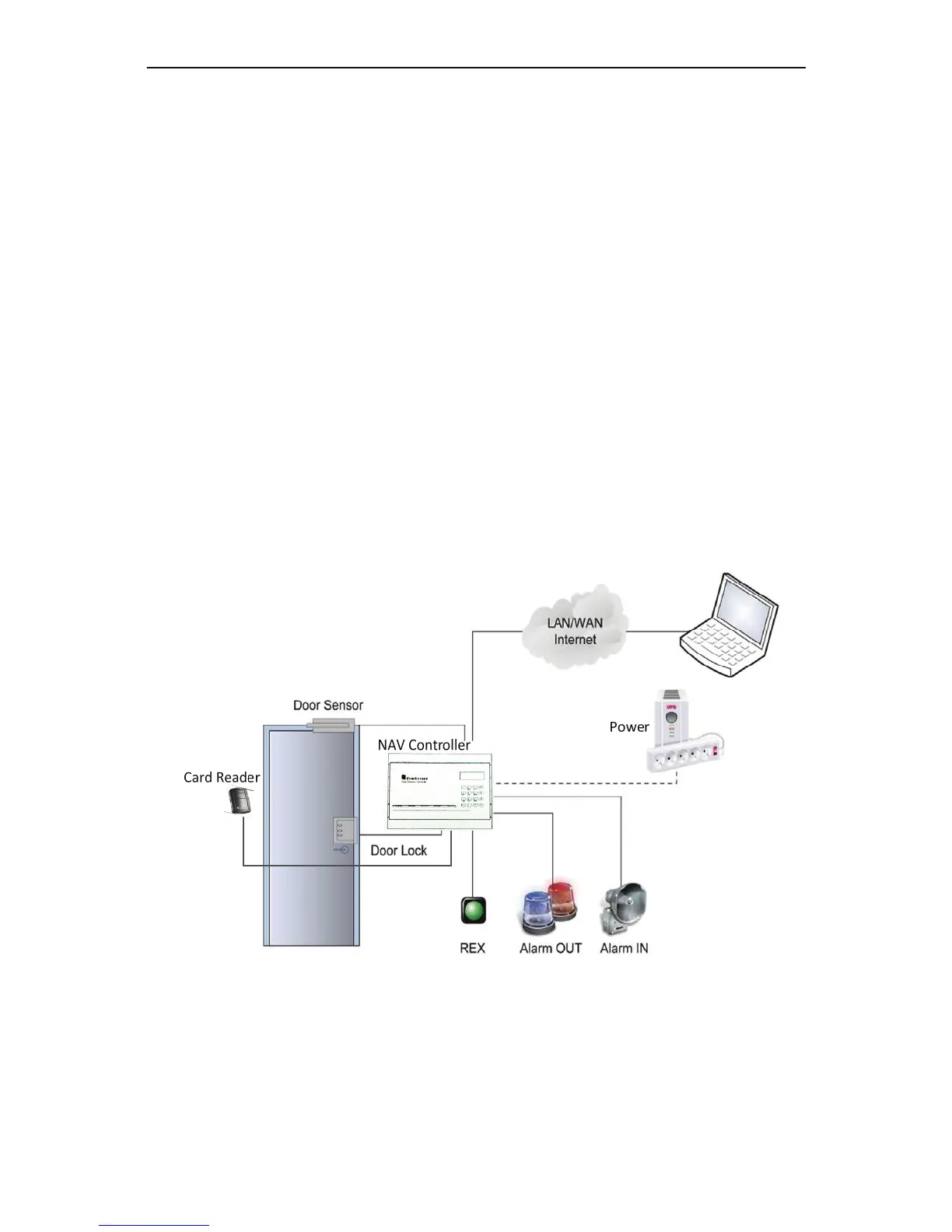

Figure1‐1

ThefollowingtableliststhemodelsofNAVIPaccesscontrollersalongwiththesupported
numberofdoors,readersandalarminputs/outputs.Adescriptionforthesupported
modulesanddevicesisalsoprovidedbelow.

