EverFocus EFC304 - Terminal Block and Leds on Door Module

NAV IP Access controller

9
17 Alarm4_COM
Alarm4outputin
common
35 Alarm8_COM
Alarm8outputin
common
18 Alarm4_NC Alarm4outputforNC 36 Alarm8_NC Alarm8outputforNC



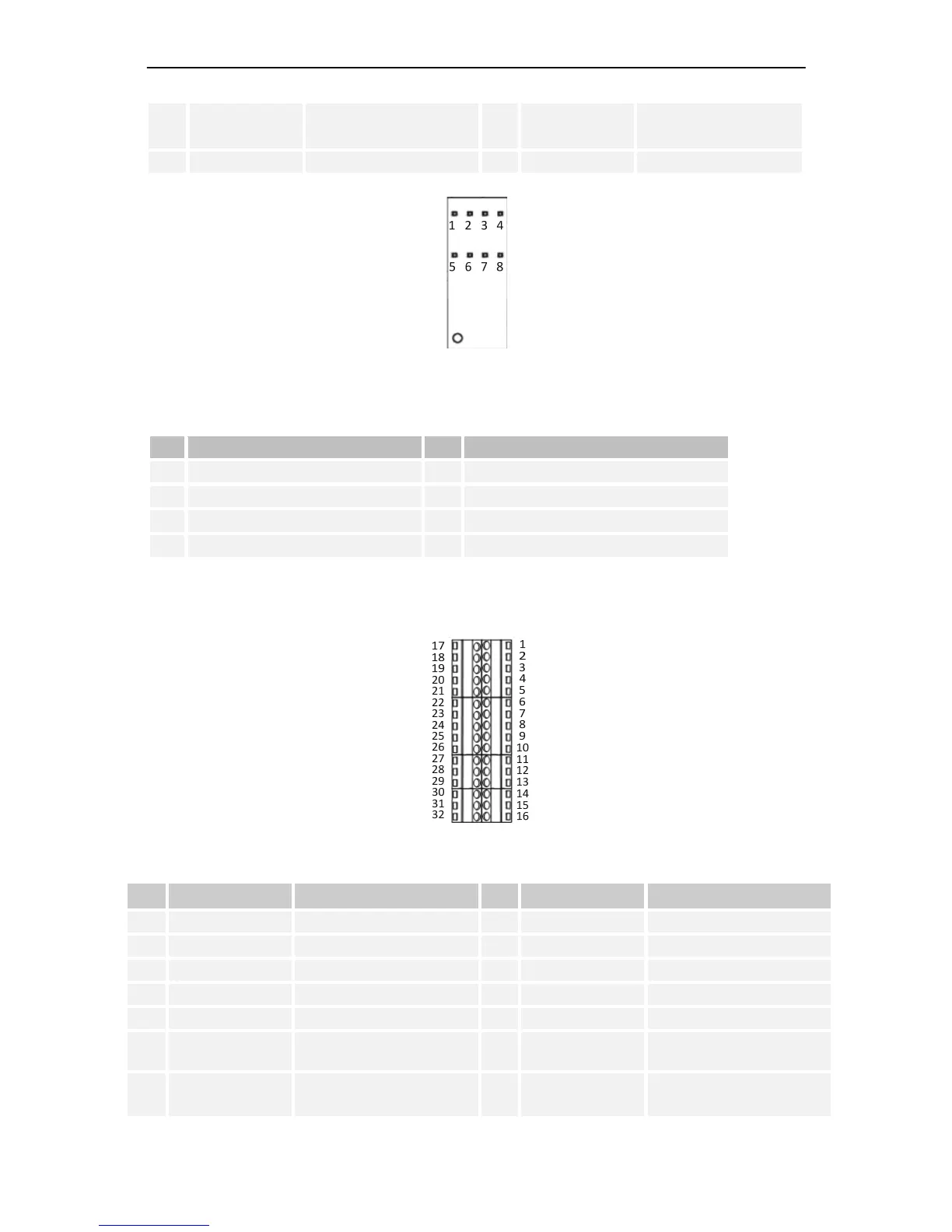

Figure1‐6

LEDDefinitions
No Description No Description
1 Alarm1 5 Alarm5
2 Alarm2 6 Alarm6
3 Alarm3 7 Alarm7
4 Alarm4 8 Alarm8

1.6.3 TerminalBlockandLEDsonDoorModule

Figure1‐7

No TerminalName Function No. TerminalName Function
1 Reader1_Dat a 0 Reader1WiegandData0 17 Reader2_Dat a 0 Reader2WiegandData0
2 Reader1_Dat a 1 Reader1WiegandData1 18 Reader2_Dat a 1 Reader2WiegandData1
3 Reader1_DC 
Powersupplyforreader1
19 Reader2_DC 
PowersupplyforReader
4 Reader1_GND GNDfortheReader1 20 Reader2_GND GNDfortheReader2
5 Reader1_Ctrl Controllineforreader1 21 Reader2_Ctrl ControllineforReader2
6 RX_1
PorttoTXsignaltoreader
1
22 RX_2
PorttoTXsignalto
Reader2
7 TX_1
PorttoRXsignalfrom
reader1
23 TX_2
PorttoRXsignalfrom
Rader2
