Evolis Avansia User Manual

20
ä

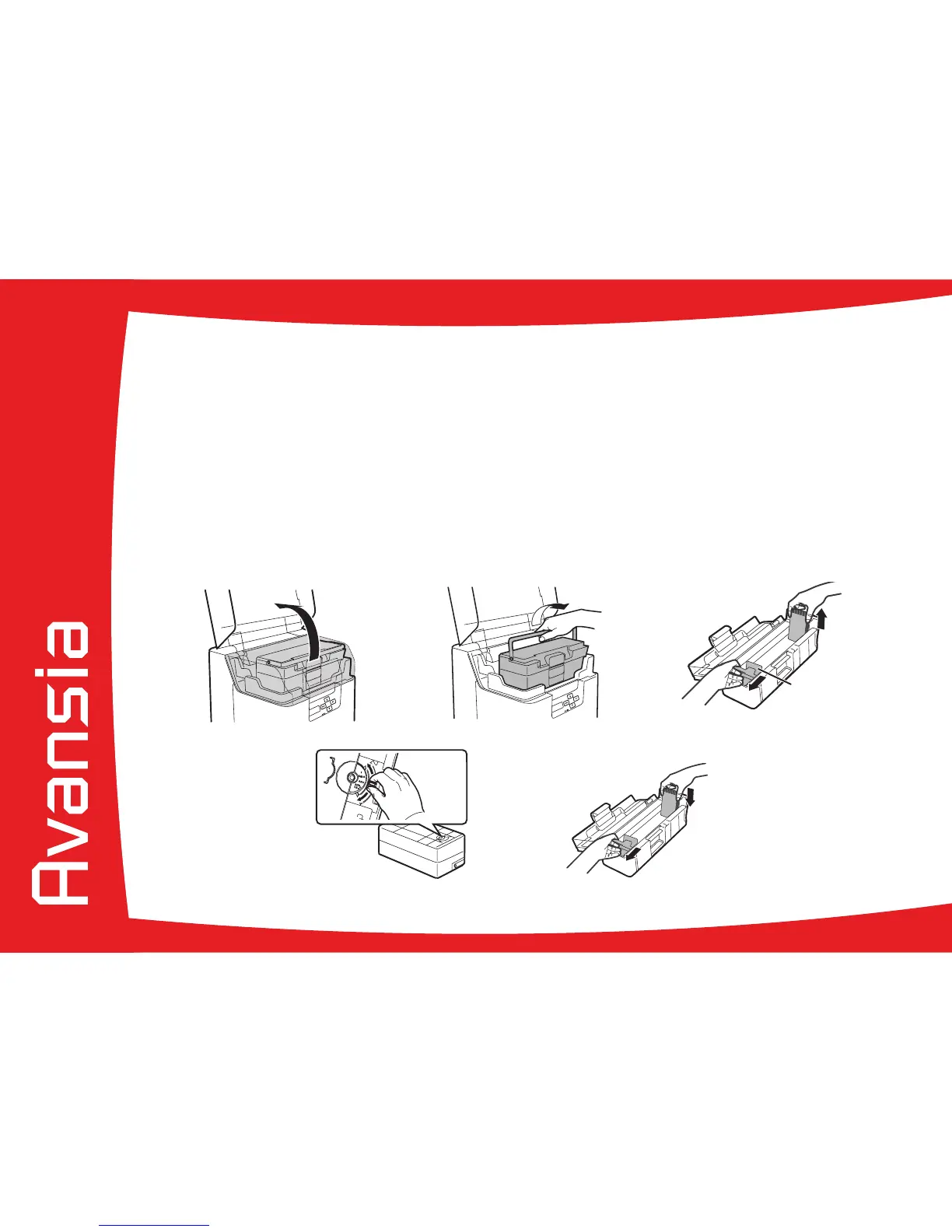

Adjusting card thickness
The printer accepts card thickness of 0.76mm (30mil). However depending on card thickness tolerance, it may be necessary to ajust it
manually.
The card thickness gauge is underneath the card feeder.
Adjusting card thickness please proceed as follows:
Ê
Open the printer cover.
Ë
Remove the card feeder from the printer as shown.
Ì
Open the cards feeder and remove the cards.
Í
Return the feeder and adjust the thickness of the cards used by moving the wheel from right to left
Î
Put the cards back into the feeder and put back the feeder into the printer.
Ï
Close the top cover of the printer.
1
Ë ÌÊ
Í
Î
Card Retainer
Align
wheel
with
Marks

Evolis Avansia Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Polycarbonate, PVC, PVC Composite
Print technology	Dye-sublimation/Resin Thermal transfer
Print speed (color)	144 card/h
Card thickness (min)	0.76 mm
Duplex print speed (color)	96 card/h
Display	LCD
Lamination	-
Certification	CE, FCC, UL, IEC RoHS
Product color	Black, White
Internal memory	64 MB
Cable lock slot type	Kensington
Total input capacity	250 sheets
Wi-Fi	No
Security algorithms	IPSEC
Ethernet interface type	Fast Ethernet
Bundled software	cardPresso XXS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	297 mm
Width	340 mm
Height	436 mm
Weight	20000 g
